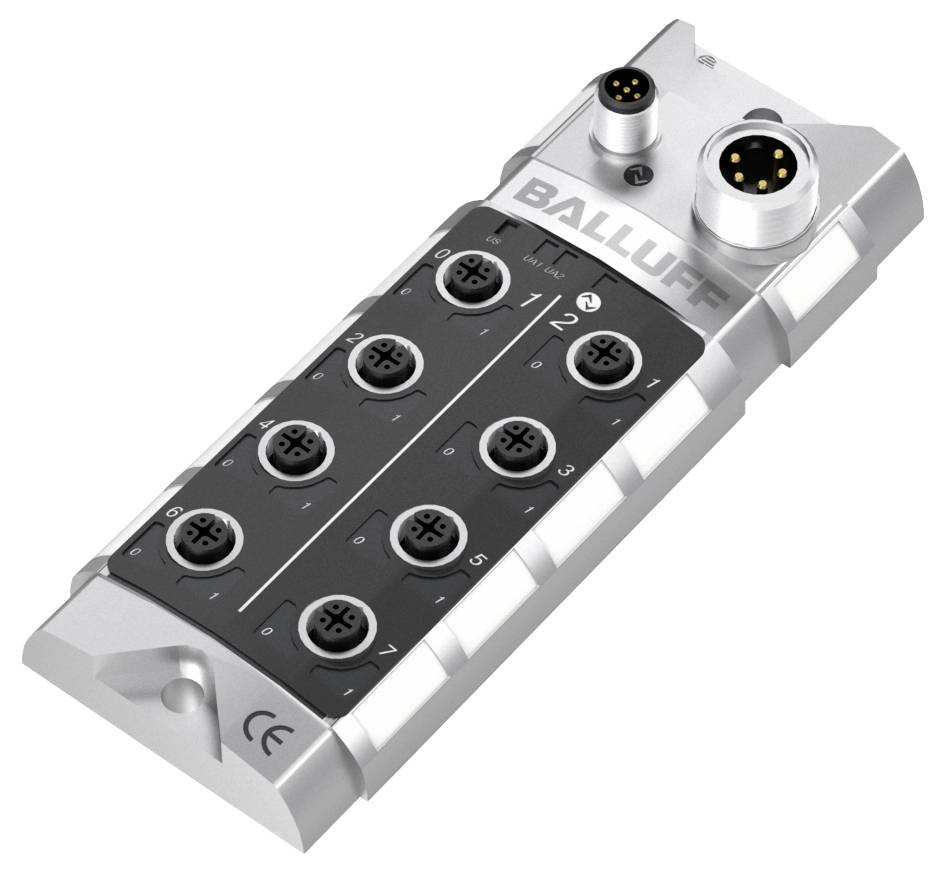

Image similar
BALLUFF BNI003Y Safety controller BNI IOL-256-S01-Z013 1 pc(s)
Product type
Safety controller
Type
BNI IOL-256-S01-Z013
Min. operating voltage
18 V DC
Max. operating voltage
30.2 V DC
Operating voltage
18 - 30.2 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BNI003Y IO-Link modules for safety applications
- Interface: IO-Link 1.0
- Approval/conformity: CE
- UKCA
- CULus
- WEEE
- Digital outputs at 16 x PNP
- Total current us, sensor 4.0 A
- Total current UA, actuator 9.0 A
Technical specifications
- Main features:Dimension 68 x 32.4 x 181.5 mm
- Connection slots: 8x M12x1 socket, 5-pin, A-coded
- Digital outputs at 16 x PNP
- Housing material: Zinc die-cast, nickel-plated
- Interface: IO-Link 1.0
- Protection class IP67
- Total current UA, actuator 9.0 A
- Total current us, sensor 4.0 A
- Ambient temperature -5...70 °C
- Additional features:
- Delivery: Label plate (20x)|Blind plugs M12 (4x)|Earthing band|Spring ring|Quick start guide|Screw M4x6
- Dimensions 68 x 32.4 x 181.5 mm
- Attachment: 2-hole screw fixing
- Rated operating voltage Ue DC 24 V
- Operating voltage Ub 18...30.2 VDC
- MTTF (40 °C) 67 a
- Housing material: Zinc die-cast, nickel-plated
- EN 60068-2-6, vibration: 61…500 Hz, constant|acceleration 15 g|5…61 Hz, constant amplitude 1|mm
- Protection class IP67, screwed down
- Ambient temperature -5...70 °C
- Display switching function LED yellow
- Connection slots: 8x M12x1 socket, 5-pin, A-|coded
- Display IO-Link communication: Green LED
- Module supply display: Green LED
- Contacts, surface protection: Nickel-plated 2 µm/gold-plated 0.4 µm
- Case shielding: Yes
- Surface protection: Cu 15 µm|Ni 15 µm
- IO-Link Version: 1
- IO-Link function: Device
- Process data OUT: 2 bytes
- Process data cycle min.: 24 ms
- Shape: Double-row
- Storage temperature: -25...70 °C
- Interface: IO-Link 1.0
- Process data IN: 7 bytes
- COM2 (38.4 kBaud) transfer rate
- Digital outputs at 16 x PNP
- Seal material FKM 75
- Cycle time min.: 3 ms
- Connection (power SUPPLY IN): 7/8" plug, 5-pin
- Connection (COM 1): M12x1 connector, 4-pin, A-coded
- Display of actuator supply UA: LED green
- Inputs/outputs can be configured: No.
- Total current UA, actuator 9.0 A
- Total current us, sensor 4.0 A
- Mounting earthing band: M4 inner thread
- Ambient temperature UL max. 45 °C
- IO-Link ports, number: 1
- Power consumption without load max. 90 mA
- Single channel monitoring: Yes
- Switching current 16 x 2 A
- Product type
Safety controller
- Type
BNI IOL-256-S01-Z013
- Min. operating voltage
18 V DC
- Max. operating voltage
30.2 V DC
- Operating voltage
18 - 30.2 V DC
- Operating current
90 mA
- Connector
M12 plug (4-pin, A coded)
- Outputs
PNP
IP67
- Content
1 pc(s)
- Length
68 mm
- Width
32.4 mm
- Height
181.5 mm
- Enclosure material
Zinc (die-cast, Ni-plated)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3421044 BALLUFF BNI003Y Safety controller BNI IOL-256-S01-Z013 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3421044 BALLUFF BNI003Y Safety controller BNI IOL-256-S01-Z013 1 pc(s)
Description
Our I/O modules are optimally suitable for use in harsh industrial environments with their robust housing. The I/O hubs are based on M12 or M8 connectors and are easy and cost-effective to install and maintain. Interface=IO-Link 1.0, operating voltage Ub=18...30.2 VDC, digital outputs=16x PNP, inputs/outputs configurable=no, output current max.=2 A, Housing material=zinc, die-cast, dimension=68 x 32.4 x 181.5 mm, ambient temperature=-5...70 °C, protection class=IP67 of screwed state, transfer rate=COM2 (38.4 kBaud), process data cycle min.=24 ms
