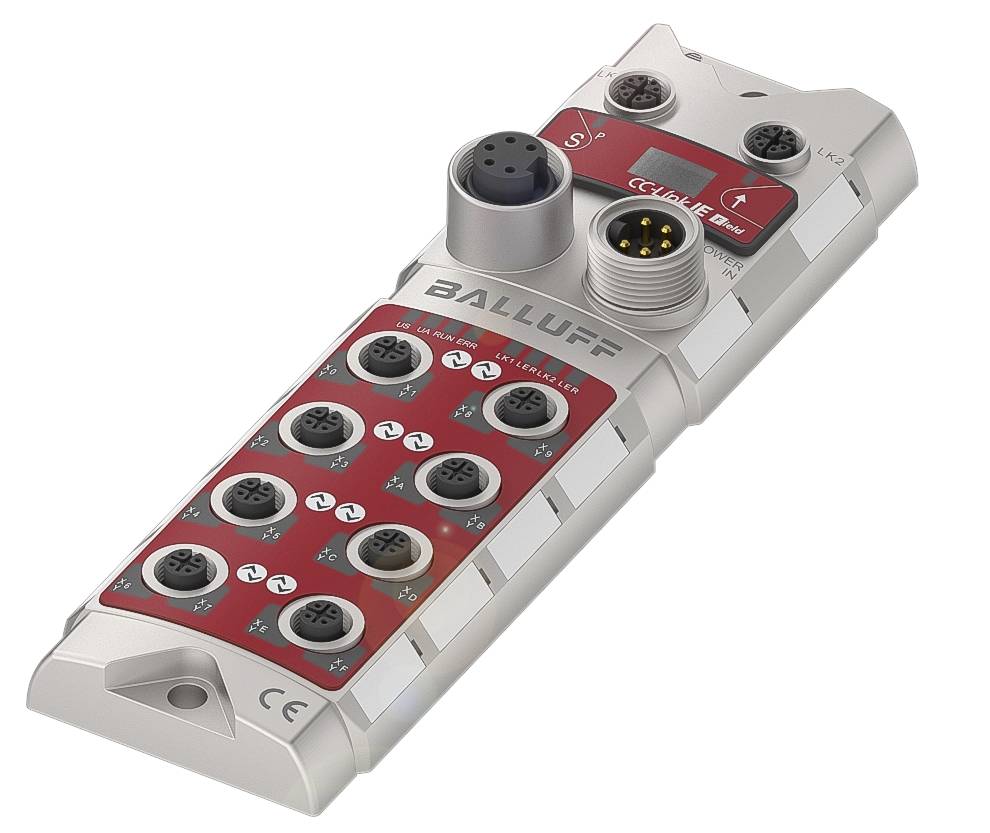

BALLUFF BNI008C Network module BNI008C 1 pc(s)
Product type
Network module
Type
BNI008C
Min. operating voltage
18 V DC
Max. operating voltage
30.2 V DC
Operating voltage
18 - 30.2 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BNI008C Network Modules for CC-Link IE/Field
- Operating voltage Ub 18...30.2 VDC
- Output current max. 2 A
- Interface: CC-Link IE Field
- Additional interfaces: 8x IO-Link
- Port class A
Technical specifications
- Main features:Dimension 68 x 37.9 x 224 mm
- Connection (COM 1): M12x1 socket, 8-pin, X-coded
- Connection (COM 2): M12x1 socket, 8-pin, X-coded
- Connection (power SUPPLY IN): 7/8" plug, 5-pin
- Connection (power supply OUT): 7/8" socket, 5-pin
- Connection slots: 8x M12x1 socket, 5-pin, A-coded
- Output current max. 2 A
- Operating voltage Ub 18...30.2 VDC
- Digital outputs at 16 x PNP
- Digital inputs: 16x PNP, type 3
- Inputs/outputs can be configured: Yes
- Housing material: Zinc die-cast, nickel-plated
- IO-Link Version: 1.1
- Port class A
- Interface: CC-Link IE Field
- Protection class IP67
- Total current UA, actuator 9.0 A
- Total current us, sensor 9.0 A
- Ambient temperature -5...70 °C
- Additional interfaces: 8x IO-Link
- Additional features:
- Delivery: Label plate (20x)|Blind plugs M12 (4x)|Earthing band|Spring ring|Quick start guide|Screw M4x6
- Dimensions 68 x 37.9 x 224 mm
- Attachment: 2-hole screw fixing
- Rated operating voltage Ue DC 24 V
- Operating voltage Ub 18...30.2 VDC
- MTTF (40 °C) 36 a
- Housing material: Zinc die-cast, nickel-plated
- EN 60068-2-6, vibration: 5…61 Hz, constant amplitude 1|mm|61…500 Hz, constant|acceleration 15 g.
- Protection class IP67, screwed down
- Ambient temperature -5...70 °C
- Display switching function LED yellow
- Output current max. 2 A
- Connection slots: 8x M12x1 socket, 5-pin, A-|coded
- Display IO-Link communication: Green LED
- Contacts, surface protection: Nickel-plated 2 µm/gold-plated 0.4 µm
- Case shielding: Yes
- Surface protection: Cu 15 µm|Ni 15 µm
- IO-Link Version: 1.1
- IO-link function: Master
- Shape: Double-row
- Storage temperature: -25...70 °C
- Interface: CC-Link IE Field V0
- Digital outputs at 16 x PNP
- Digital inputs: 16x PNP, type 3
- Seal material FKM 75
- Connection (power SUPPLY IN): 7/8" plug, 5-pin
- Connection (COM 1): M12x1 socket, 8-pin, X-coded
- Display of actuator supply UA: LED green
- Display Sensor supply US: Green LED
- Address range: 0 - 120
- Inputs/outputs can be configured: Yes
- Total current UA, actuator 9.0 A
- Total current us, sensor 9.0 A
- Connection (COM 2): M12x1 socket, 8-pin, X-coded
- Connection (power supply OUT): 7/8" socket, 5-pin
- Mounting earthing strap M4
- Port class A
- Additional interfaces: 8x IO-Link
- Ambient temperature UL max. 45 °C
- IO-Link ports, number: 8
- Product type
Network module
- Type
BNI008C
- Min. operating voltage
18 V DC
- Max. operating voltage
30.2 V DC
- Operating voltage
18 - 30.2 V DC
- Connector
Socket
- Outputs
PNP
IP67
- Content
1 pc(s)
- Length
68 mm
- Width
37.9 mm
- Height
224 mm
- Enclosure material
Zinc (die-cast, Ni-plated)
- Transfer rate
1 GBit/s
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418852 BALLUFF BNI008C Network module BNI008C 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418852 BALLUFF BNI008C Network module BNI008C 1 pc(s)
Description
For the perfect connection of I/O systems to the open, deterministic high-speed network CC-Link IE/Field, we have developed highly functional and practical fieldbus modules. This new generation overshadows everything that has been done with its considerable parameterization and diagnostics capabilities. Operation principle=Active distributor, interface=CC-Link IE Field V0, operating voltage Ub=18...30.2 VDC, connection (COM 1)=M12x1 socket, 8-pin, X-coded, connection (COM 2)=M12x1 socket, 8-pin, X-coded, connection (power supply IN)=7/8" plug, 5-pin, Connection (power supply OUT)=7/8" socket, 5-pole, connector slots=8x M12x1 socket, 5-pole, A-coded, Digital inputs=16x PNP, Typ 3, Digital outputs=16x PNP, inputs/outputs configurable=yes, Output current max.=2 A, Total current us, sensor=9.0 A, total current UA, actuator=9.0 A, case material=zinc, Die-cast, dimension=68 x 37.9 x 224 mm, ambient temperature=-5...70 °C, protection class=IP67, additional interfaces=8x IO-Link, IO-Link version=1.1, Port class = Type A
