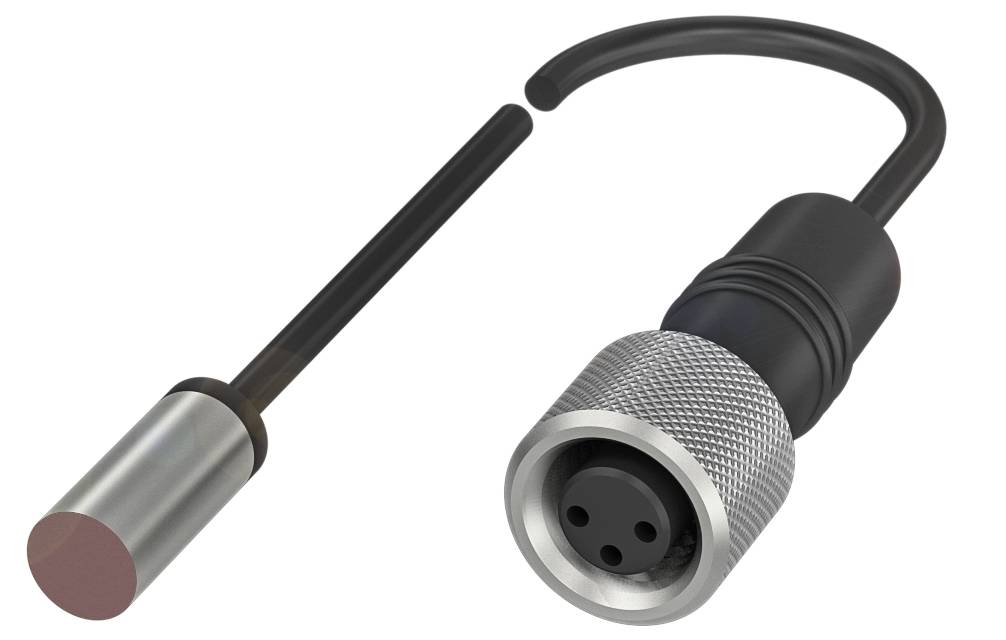

BALLUFF BOH0005 BOH0005 Optical sensor head 1 pc(s) (Ø x H) 6 mm x 12 mm Piece
Packaging type
Piece
Product type
Optical sensor head
Connector
Plug
Socket
Type
BOH0005
Cable length
1 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BOH0005 light sensors with different light types
- Dimensions: Ø 6 x 12 mm
- Series G05
- Interface: For switching amplifier
- Optical sensor head
- Optical functional principle: Light switch, energetic
Technical specifications
- Main features:Dimensions: Ø 6 x 12 mm
- Active surface, material: PMMA
- Connection: Cable with connector, M8x1 socket, 1 m, PUR
- Series G05
- Attachment: Diameter 5.0 mm
- Optical sensor head
- Optical functional principle: Light switch, energetic
- Housing material: Stainless steel
- Smallest part type: 0.1 mm
- LED red light
- Light spot size: Ø 35 mm with 50 mm
- Range 0...60 mm
- Interface: For switching amplifier
- Beam characteristics: Varied
- Additional features:
- Optical sensor head
- Dimensions: Ø 6 x 12 mm
- Attachment: Diameter 5.0 mm
- Connection: Cable with connector, M8x1-|female, 1 m, PUR
- Rated switching distance Sn: 60 mm
- Active surface, material: PMMA
- Switching output: For switching amplifier
- Cable diameter D 1.80 mm
- Cable length 1 m
- Housing material: Stainless steel
- Sheath material: PUR
- Protection system: IP65
- Ambient temperature -10...55 °C
- Range 0...60 mm
- Series G05
- Shape: Cylinder|straight lens
- Optical functional principle: Light switch, energetic
- LED red light
- Light spot size: Ø 35 mm with 50 mm
- Beam characteristics: Varied
- Wavelength 665 nm
- LED group according to IEC 62471: Free group
- Smallest part type: 0.1 mm
- Reference basic device: BAE SA-OH-059-…
- Packaging type
Piece
- Product type
Optical sensor head
- Type
BOH0005
- Connector
Plug
Socket
- Cable length
1 m
- Enclosure material
Stainless steel
- Material properties
rust-proof
- Transmitter type
LED red
- Wavelength
665 nm
60 mm
IP65
- Min. temperature
-10 °C
- Max. temperature
55 °C
- Length
12.00 mm
- Width
12 mm
- Height
12 mm
- (Ø)
6 mm
- Dim
(Ø x H) 6 mm x 12 mm
- Content
1 pc(s)
- Smallest detectable object size (diameter)
0.1 mm
- Material
Stainless steel
- Switching distance (max.)
60 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416269 BALLUFF BOH0005 BOH0005 Optical sensor head 1 pc(s) (Ø x H) 6 mm x 12 mm Piece
User & Safety Instructions
User & Safety Instructions 3416269 BALLUFF BOH0005 BOH0005 Optical sensor head 1 pc(s) (Ø x H) 6 mm x 12 mm Piece
Description
The Microremote sensors' modular system with innovative sensor elements meets your individual requirements: Various housing designs ensure a particularly high degree of design freedom, precise optoelectronic components ensure a high level of process accuracy in every application. Series = G05, Dimensions = Ø 5 x 12 mm, interface = for switching amplifier, function principle = optical sensor head, functional principle optical = light switch, energetic, Beam characteristic=divergent, light type=LED red light, light spot size=Ø 14 mm at 50 mm, range=0...60 mm, connection=cable with connector, M8x1 connector, 1.00 m, PUR, housing material=stainless steel, active surface, material=PMMA, approval/conformity=CEWEEE
This text is machine translated.
This text is machine translated.
