Name: BALLUFF BOH0009 BOH0009 Optical sensor head 1 pc(s) (Ø x L) 6 mm x 8.00 mm
Brand: BALLUFF
SKU: 3416177

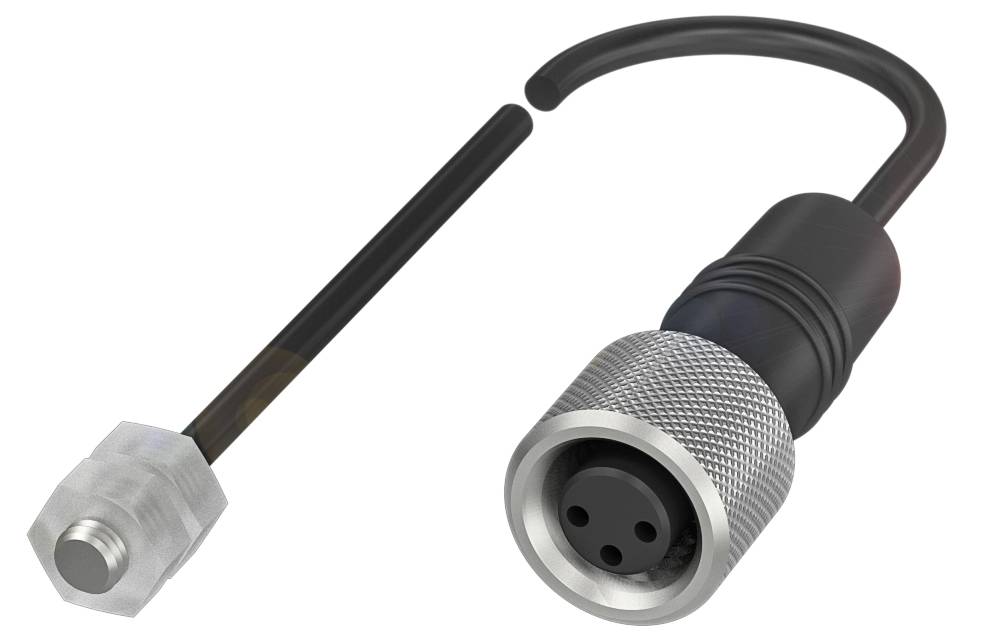

Metallic sensor head with black cable and connector, used for industrial applications.

Image similar

Product type

Optical sensor head

Connector

Plug

Socket

Type

BOH0009

Cable length

1 m

Enclosure material

Stainless steel

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BOH0009 light button in different light types

Dimensions: Ø 6 x 8 mm
Series: M03
Interface: For switching amplifier
Optical sensor head
Optical functional principle: Light switch, energetic

Technical specifications

Main features:Dimensions: Ø 6 x 8 mm
Active surface, material: Epoxy
Connection: Cable with connector, M8x1 socket, 1 m, PUR
Series: M03
Attachment: Nut M3
Optical sensor head
Optical functional principle: Light switch, energetic
Housing material: Stainless steel
Smallest part type: 0.1 mm
LED red light
Range 0...12 mm
Interface: For switching amplifier
Beam characteristics: Varied
Additional features:
Optical sensor head
Connection: Cable with connector, M8x1-|female, 1 m, PUR
Rated switching distance Sn: 12 mm
Cable diameter D 1.80 mm
Cable length 1 m
Range 0...12 mm
Series: M03
Shape: Cylinder|straight lens
Reference basic device: BAE SA-OH-059-…

Product type: Optical sensor head

Type: BOH0009

Connector: Plug
Socket

Cable length: 1 m

Enclosure material: Stainless steel

Transmitter type: LED red

: 12 mm

: IP65

Min. temperature: -10 °C

Max. temperature: 55 °C

Length: 8.00 mm

Width: 8 mm

(Ø): 6 mm

Dim: (Ø x L) 6 mm x 8.00 mm

Content: 1 pc(s)

Switching distance (max.): 12 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416177 BALLUFF BOH0009 BOH0009 Optical sensor head 1 pc(s) (Ø x L) 6 mm x 8.00 mm

User & Safety Instructions

User & Safety Instructions 3416177 BALLUFF BOH0009 BOH0009 Optical sensor head 1 pc(s) (Ø x L) 6 mm x 8.00 mm

Description

The Microremote sensors' modular system with innovative sensor elements meets your individual requirements: Various housing designs ensure a particularly high degree of design freedom, precise optoelectronic components ensure a high level of process accuracy in every application. Series=M03, Dimensions=Ø 3 x 8 mm, interface=for switching amplifier, function principle=optical sensor head, functional principle optical=light switch, energetic, Beam characteristic=divergent, light type=LED red light, range=0...12 mm, connection=cable with connector M8x1 plug, 1.00 m, PUR, housing material=stainless steel, active surface, material=epoxy, Approval/conformity=CEEEEE
