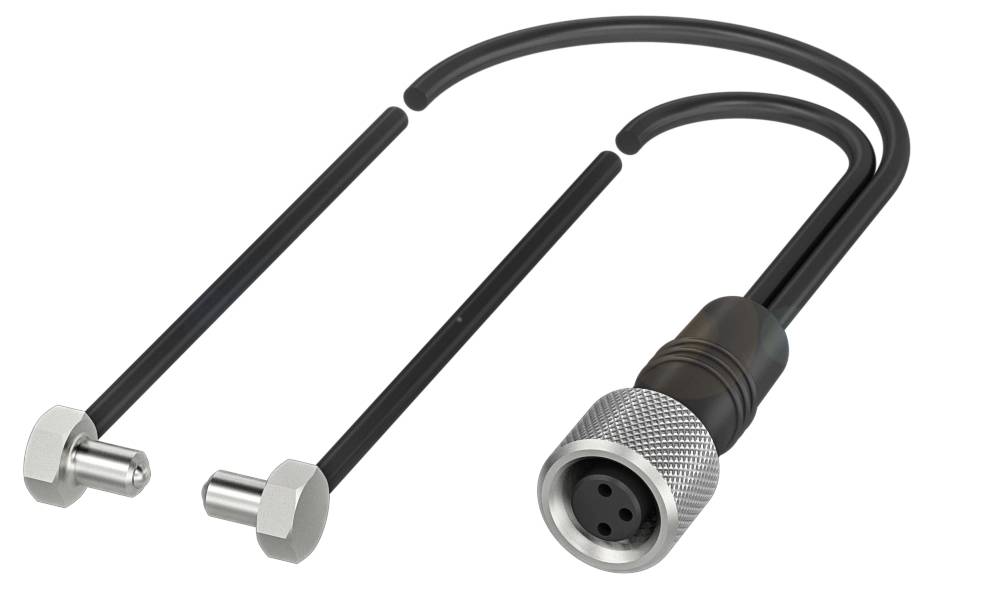

BALLUFF BOH000E BOH000E Optical sensor head 1 pc(s) (L x W x H) 7.60 x 3.00 x 5.50 mm
Product type
Optical sensor head
Connector
Plug
Socket
Type
BOH000E
Cable length
1 m
Enclosure material
Stainless steel
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BOH000E single-way light barriers in different types of light
- Dimensions 6 x 5.5 x 7.6 mm
- Series: M03
- Interface: For switching amplifier
- Optical sensor head
- Optical functional principle: One-way light barrier
Technical specifications
- Main features:Dimension 6 x 5.5 x 7.6 mm
- Active surface, material: Epoxy
- Connection: Cable with connector, M8x1 socket, 1 m, PUR
- Series: M03
- Attachment: Nut M3
- Optical sensor head
- Optical functional principle: One-way light barrier
- Housing material: Stainless steel
- Smallest part type: 0.2 mm
- Light: MICROSPOT-LED red light
- Light spot size: Ø 10 mm with 100 mm
- Range 0...500 mm
- Interface: For switching amplifier
- Beam characteristics: Varied, max. 3.5°
- Additional features:
- Optical sensor head
- Dimensions 6 x 5.5 x 7.6 mm
- Attachment: Nut M3
- Connection: Cable with connector, M8x1-|female, 1 m, PUR
- Rated switching distance Sn: 500 mm
- Active surface, material: Epoxy
- Switching output: For switching amplifier
- Cable diameter D 1.80 mm
- Cable length 1 m
- Housing material: Stainless steel
- Sheath material: PUR
- Protection system: IP65
- Ambient temperature -10...55 °C
- Range 0...500 mm
- Series: M03
- Shape: Cylinder|straight lens
- Optical functional principle: One-way light barrier
- Light: MICROSPOT-LED red light
- Light spot size: Ø 10 mm with 100 mm
- Beam characteristics: Varied, max. 3.5°
- Wavelength 650 nm
- LED group according to IEC 62471: Free group
- Smallest part type: 0.2 mm
- Reference basic device: BAE SA-OH-059-…
- Product type
Optical sensor head
- Type
BOH000E
- Connector
Plug
Socket
- Cable length
1 m
- Enclosure material
Stainless steel
- Material properties
rust-proof
- Transmitter type
LED red
- Wavelength
650 nm
500 mm
IP65
- Min. temperature
-10 °C
- Max. temperature
55 °C
- Length
7.60 mm
- Width
3.00 mm
- Height
5.50 mm
- Depth
7.6 m
- Dim
(L x W x H) 7.60 x 3.00 x 5.50 mm
- Content
1 pc(s)
- Material
Stainless steel
- Switching distance (max.)
500 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416253 BALLUFF BOH000E BOH000E Optical sensor head 1 pc(s) (L x W x H) 7.60 x 3.00 x 5.50 mm
User & Safety Instructions
User & Safety Instructions 3416253 BALLUFF BOH000E BOH000E Optical sensor head 1 pc(s) (L x W x H) 7.60 x 3.00 x 5.50 mm
Description
The Microremote sensors' modular system with innovative sensor elements meets your individual requirements: Various housing designs ensure a particularly high degree of design freedom, precise optoelectronic components ensure a high level of process accuracy in every application. Series=M03, Dimensions=6 x 5.5 x 7.6 mm, interface=for switching amplifier, function principle=optical sensor head, functional principle optical=one-way light barrier, beam characteristic=diverse, max. 3.5°, light type=MICROSPOT-LED red light, light spot size=Ø 10 mm at 100 mm, range=0...500 mm, connection=cable with connector, M8x1 plug, 1.00 m, PUR, housing material=stainless steel, active surface, material=epoxy, approval/conformity=CEWEEE
