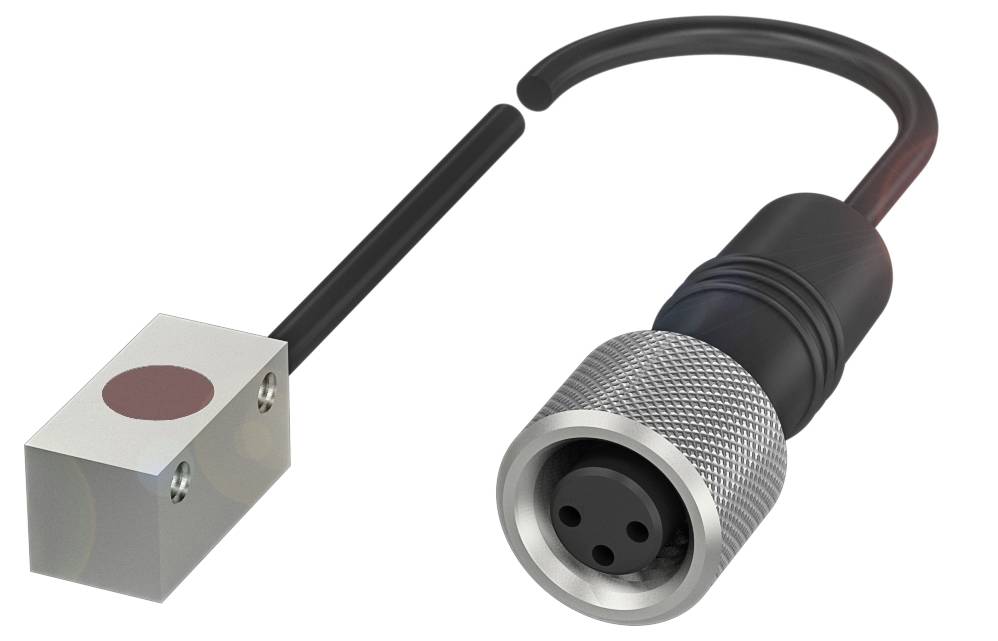

BALLUFF BOH000L BOH000L Optical sensor head 1 pc(s) (L x W x H) 6.00 x 12.00 x 6.00 mm
Product type
Optical sensor head
Connector
Plug
Socket
Type
BOH000L
Cable length
1 m
Enclosure material
Brass
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BOH000L light sensor in different light types
- Dimensions 12 x 6 x 6 mm
- Q06 series
- Interface: For switching amplifier
- Optical sensor head
- Optical functional principle: Light switch, energetic
Technical specifications
- Main features:Dimension 12 x 6 x 6 mm
- Active surface, material: PMMA
- Connection: Cable with connector, M8x1 socket, 1 m, PUR
- Q06 series
- Attachment: Screw M2
- Optical sensor head
- Optical functional principle: Light switch, energetic
- Housing material: Nickel-plated brass
- Smallest part type: 0.1 mm
- LED red light
- Light spot size: Ø 35 mm with 50 mm
- Range 0...60 mm
- Interface: For switching amplifier
- Beam characteristics: Varied
- Additional features:
- Optical sensor head
- Dimensions 12 x 6 x 6 mm
- Attachment: Screw M2
- Connection: Cable with connector, M8x1-|female, 1 m, PUR
- Rated switching distance Sn: 60 mm
- Active surface, material: PMMA
- Switching output: For switching amplifier
- Cable diameter D 1.80 mm
- Cable length 1 m
- Housing material: Nickel-plated brass
- Sheath material: PUR
- Protection system: IP65
- Ambient temperature -10...55 °C
- Range 0...60 mm
- Surface protection: Nickel-plated
- Q06 series
- Shape: Cube|connection 90°
- Optical functional principle: Light switch, energetic
- LED red light
- Light spot size: Ø 35 mm with 50 mm
- Beam characteristics: Varied
- Wavelength 665 nm
- LED group according to IEC 62471: Free group
- Smallest part type: 0.1 mm
- Reference basic device: BAE SA-OH-059-…
- Product type
Optical sensor head
- Type
BOH000L
- Connector
Plug
Socket
- Cable length
1 m
- Enclosure material
Brass
- Material properties
nickel plated
- Transmitter type
LED red
- Wavelength
665 nm
60 mm
IP65
- Min. temperature
-10 °C
- Max. temperature
55 °C
- Length
6.00 mm
- Width
12.00 mm
- Height
6.00 mm
- Depth
6 m
- Dim
(L x W x H) 6.00 x 12.00 x 6.00 mm
- Content
1 pc(s)
- Material
Brass (Ni-plated)
- Switching distance (max.)
60 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416192 BALLUFF BOH000L BOH000L Optical sensor head 1 pc(s) (L x W x H) 6.00 x 12.00 x 6.00 mm
User & Safety Instructions
User & Safety Instructions 3416192 BALLUFF BOH000L BOH000L Optical sensor head 1 pc(s) (L x W x H) 6.00 x 12.00 x 6.00 mm
Description
The Microremote sensors' modular system with innovative sensor elements meets your individual requirements: Various housing designs ensure a particularly high degree of design freedom, precise optoelectronic components ensure a high level of process accuracy in every application. Series=Q06, Dimensions=12 x 6 x 6 mm, interface=for switching amplifier, function principle=optical sensor head, functional principle optical=light switch, energetic, Beam characteristic=divergent, light type=LED red light, light spot size=Ø 11 mm at 50 mm, range=0...60 mm, connection=cable with connector, M8x1 connector, 1.00 m, PUR, housing material=brass, active surface, material=PMMA, certification/conformity=CEEEEE
This text is machine translated.
This text is machine translated.
