Name: BALLUFF BOH000N BOH000N Optical sensor head 1 pc(s) (Ø x H) 35 m x 6.00 mm
Brand: BALLUFF
SKU: 3416252

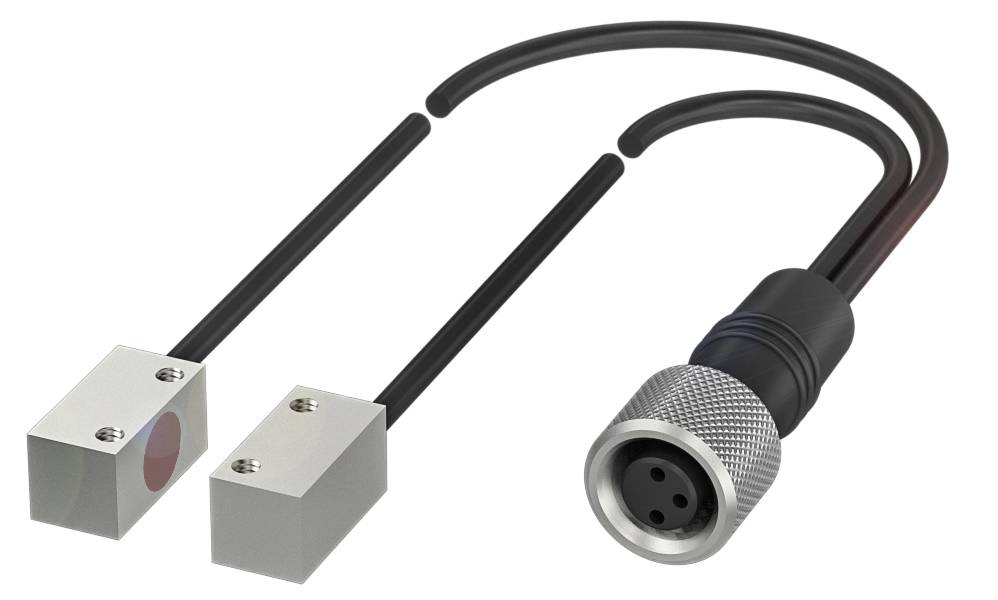

Two rectangular aluminum sensors with black cable and a round connector, used for measurement and data transmission.

Image similar

Product type

Optical sensor head

Connector

Plug

Socket

Type

BOH000N

Cable length

1 m

Enclosure material

Brass

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BOH000N One way light barriers in different light types

Dimensions 12 x 6 x 6 mm
Q06 series
Interface: For switching amplifier
Optical sensor head
Optical functional principle: One-way light barrier

Technical specifications

Main features:Dimension 12 x 6 x 6 mm
Active surface, material: PMMA
Connection: Cable with connector, M8x1 socket, 1 m, PUR
Q06 series
Attachment: Screw M2
Optical sensor head
Optical functional principle: One-way light barrier
Housing material: Nickel-plated brass
Smallest part type: 0.30 mm
LED red light
Light spot size: Ø 35 mm
Range 0 - 1 m
Interface: For switching amplifier
Beam characteristics: Varied
Additional features:
Optical sensor head
Dimensions 12 x 6 x 6 mm
Attachment: Screw M2
Connection: Cable with connector, M8x1-|female, 1 m, PUR
Rated switching distance Sn: 1000 mm
Active surface, material: PMMA
Switching output: For switching amplifier
Cable diameter D 1.80 mm
Housing material: Nickel-plated brass
Sheath material: PUR
Range 0 - 1 m
Surface protection: Nickel-plated
Q06 series
Shape: Cube|connection 90°
Optical functional principle: One-way light barrier
LED red light
Light spot size: Ø 35 mm
Beam characteristics: Varied
Wavelength 665 nm
LED group according to IEC 62471: Free group
Smallest part type: 0.30 mm
Reference basic device: BAE SA-OH-059-…
Cable length L detection range/measurement range 1 m.

Product type: Optical sensor head

Type: BOH000N

Connector: Plug
Socket

Cable length: 1 m

Enclosure material: Brass

Material properties: nickel plated

Transmitter type: LED red

Wavelength: 665 nm

: 1 m

: IP65

Min. temperature: -10 °C

Max. temperature: 55 °C

Length: 6.00 mm

Width: 12.00 mm

Height: 6.00 mm

Depth: 6 m

(Ø): 35 m

Dim: (Ø x H) 35 m x 6.00 mm

Content: 1 pc(s)

Material: Brass (Ni-plated)

Switching distance (max.): 1000 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416252 BALLUFF BOH000N BOH000N Optical sensor head 1 pc(s) (Ø x H) 35 m x 6.00 mm

User & Safety Instructions

User & Safety Instructions 3416252 BALLUFF BOH000N BOH000N Optical sensor head 1 pc(s) (Ø x H) 35 m x 6.00 mm

Description

The Microremote sensors' modular system with innovative sensor elements meets your individual requirements: Various housing designs ensure a particularly high degree of design freedom, precise optoelectronic components ensure a high level of process accuracy in every application. Series=Q06, Dimensions=12 x 6 x 6 mm, interface=for switching amplifier, function principle=optical sensor head, functional principle optical=one-way light barrier, beam characteristic=diverse, light type=LED red light, range=0...1 m, connection=cable with connector, M8x1-plug, 1.00 m, PUR, housing material=brass, active surface, material=PMMA, certification/conformity=CEEEEE

This text is machine translated.
