Name: BALLUFF BOH0013 BOH0013 Optical sensor head 1 pc(s) (Ø x L) 5 mm x 12.50 mm Piece
Brand: BALLUFF
SKU: 3416264

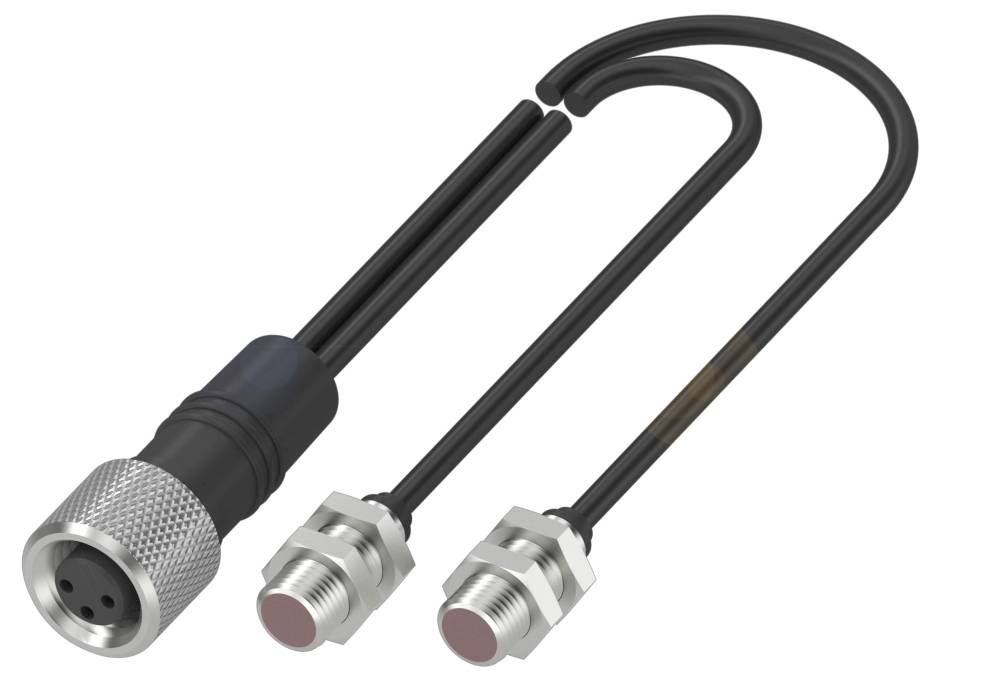

Two metal sensors with plug connectors and black cables. They are identical and intended for connection to a system.

Image similar

Packaging type

Piece

Product type

Optical sensor head

Connector

Plug

Socket

Type

BOH0013

Cable length

1 m

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BOH0013 One-way light barriers in different light types

Dimensions: Ø 5 x 12.5 mm
Series M5
Interface: For switching amplifier
Optical sensor head
Optical functional principle: One-way light barrier

Technical specifications

Main features:Dimensions: Ø 5 x 12.5 mm
Active surface, material: PMMA
Connection: Cable with connector, M8x1 socket, 1 m, PUR
Series M5
Attachment: Nut M5x0.5
Optical sensor head
Optical functional principle: One-way light barrier
Housing material: Nickel-plated brass
Smallest part type: 0.40 mm
Light: MICROSPOT-LED red light
Light spot size: Ø 10 mm with 100 mm
Range 0 - 2 m
Interface: For switching amplifier
Beam characteristics: Varied, max. 2.5°
Additional features:
Optical sensor head
Dimensions: Ø 5 x 12.5 mm
Attachment: Nut M5x0.5
Connection: Cable with connector, M8x1-|female, 1 m, PUR
Rated switching distance Sn: 2000 mm
Active surface, material: PMMA
Switching output: For switching amplifier
Cable diameter D 1.80 mm
Cable length 1 m
Housing material: Nickel-plated brass
Sheath material: PUR
Protection system: IP65
Ambient temperature -10...55 °C
Range 0 - 2 m
Surface protection: Nickel-plated
Series M5
Shape: Cylinder|straight lens
Optical functional principle: One-way light barrier
Light: MICROSPOT-LED red light
Light spot size: Ø 10 mm with 100 mm
Beam characteristics: Varied, max. 2.5°
Wavelength 650 nm
LED group according to IEC 62471: Free group
Smallest part type: 0.40 mm
Reference basic device: BAE SA-OH-059-…

Packaging type: Piece

Product type: Optical sensor head

Type: BOH0013

Connector: Plug
Socket

Cable length: 1 m

Size: M5

Enclosure material: Brass

Material properties: nickel plated

Transmitter type: LED red

Wavelength: 650 nm

: 2 m

: IP65

Min. temperature: -10 °C

Max. temperature: 55 °C

Length: 12.50 mm

Width: 12.5 mm

(Ø): 5 mm

Dim: (Ø x L) 5 mm x 12.50 mm

Content: 1 pc(s)

Material: Brass (Ni-plated)

Switching distance (max.): 2000 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416264 BALLUFF BOH0013 BOH0013 Optical sensor head 1 pc(s) (Ø x L) 5 mm x 12.50 mm Piece

User & Safety Instructions

User & Safety Instructions 3416264 BALLUFF BOH0013 BOH0013 Optical sensor head 1 pc(s) (Ø x L) 5 mm x 12.50 mm Piece

Description

The Microremote sensors' modular system with innovative sensor elements meets your individual requirements: Various housing designs ensure a particularly high degree of design freedom, precise optoelectronic components ensure a high level of process accuracy in every application. Series=M5, dimension=Ø 5 x 12.5 mm, interface=for switching amplifier, operational principle=optical sensor head, operational principle optical=one-way light barrier, beam characteristic=diverse, max. 2.5°, light type=MICROSPOT-LED red light, light spot size=Ø 8 mm at 100 mm, range=0...2 m, connection=cable with connector, M8x1 plug, 1.00 m, PUR, housing material=brass, active surface, material=PMMA, certification/conformity=CEEEEE

This text is machine translated.
