Name: BALLUFF BOH001L BOH001L Optical sensor head 1 pc(s) (Ø x L) 3 mm x 12.70 mm
Brand: BALLUFF
SKU: 3416197

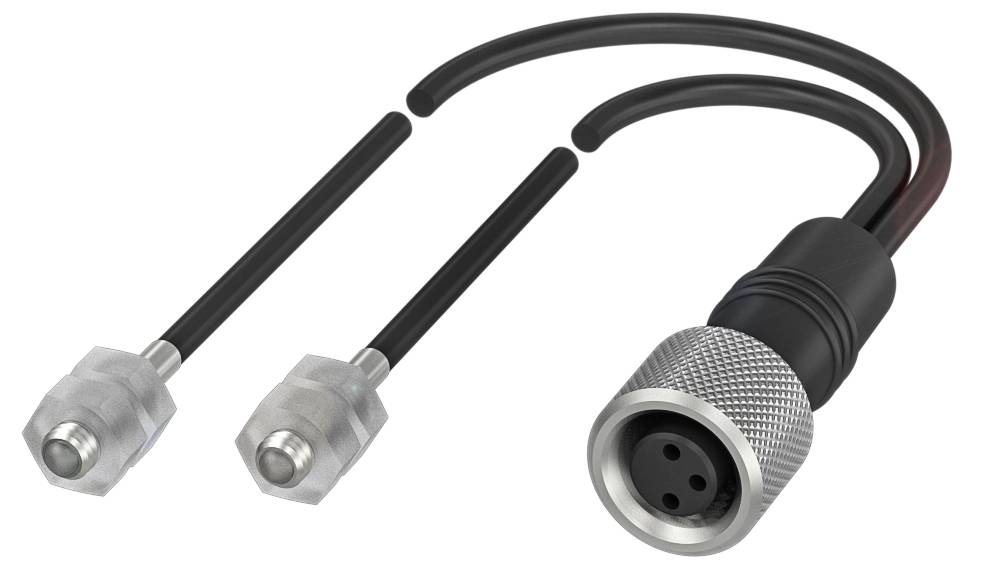

A black cable with a metal connector and two transparent connectors that look like typical audio or microphone cable accessories.

Image similar

Product type

Optical sensor head

Connector

Plug

Socket

Type

BOH001L

Cable length

1 m

Size

3 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BOH001L One-way light barrier in different light types

Dimensions: Ø 3 x 12.7 mm
Series: M03
Interface: For switching amplifier
Optical sensor head
Optical functional principle: One-way light barrier

Technical specifications

Main features:Dimensions: Ø 3 x 12.7 mm
Active surface, material: PMMA
Connection: Cable with connector, M8x1 socket, 1 m, PUR
Series: M03
Attachment: Nut M3
Optical sensor head
Optical functional principle: One-way light barrier
Housing material: Stainless steel
Smallest part type: 0.05 mm
LED red light
Light spot size: Ø 0.3 mm with 10 mm
Range 0...200 mm
Interface: For switching amplifier
Beam characteristics: Varied
Additional features:
Optical sensor head
Dimensions: Ø 3 x 12.7 mm
Attachment: Nut M3
Connection: Cable with connector, M8x1-|female, 1 m, PUR
Rated switching distance Sn: 200 mm
Active surface, material: PMMA
Switching output: For switching amplifier
Cable diameter D 1.80 mm
Cable length 1 m
Housing material: Stainless steel
Sheath material: PUR
Protection system: IP65
Ambient temperature -10...55 °C
Range 0...200 mm
Series: M03
Shape: Cylinder|straight lens
Optical functional principle: One-way light barrier
LED red light
Light spot size: Ø 0.3 mm with 10 mm
Beam characteristics: Varied
Wavelength 665 nm
LED group according to IEC 62471: Free group
Smallest part type: 0.05 mm
Reference basic device: BAE SA-OH-059-…

Product type: Optical sensor head

Type: BOH001L

Connector: Plug
Socket

Cable length: 1 m

Size: 3 mm

Enclosure material: Stainless steel

Transmitter type: LED red

Wavelength: 665 nm

: 200 mm

: IP65

Min. temperature: -10 °C

Max. temperature: 55 °C

Length: 12.70 mm

Width: 12.7 mm

(Ø): 3 mm

Dim: (Ø x L) 3 mm x 12.70 mm

Content: 1 pc(s)

Material: Stainless steel

Switching distance (max.): 200 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416197 BALLUFF BOH001L BOH001L Optical sensor head 1 pc(s) (Ø x L) 3 mm x 12.70 mm

User & Safety Instructions

User & Safety Instructions 3416197 BALLUFF BOH001L BOH001L Optical sensor head 1 pc(s) (Ø x L) 3 mm x 12.70 mm

Description

The Microremote sensors' modular system with innovative sensor elements meets your individual requirements: Various housing designs ensure a particularly high degree of design freedom, precise optoelectronic components ensure a high level of process accuracy in every application. Series=M03, Dimensions=Ø 3 x 12.7 mm, interface=for switching amplifier, function principle=optical sensor head, functional principle optical=one-way light barrier, beam characteristic=diverse, light type=LED red light, light spot size=Ø 0.4 mm at 10 mm, range=0...200 mm, connection=cable with connector, M8x1-plug, 1.00 m, PUR, housing material=stainless steel, active surface, material=PMMA, approval/conformity=CEWEEE
