Name: BALLUFF BOH002E BOH002E Optical sensor head 1 pc(s) (L x W x H) 13.00 x 13.50 x 3.00 mm Piece
Brand: BALLUFF
SKU: 3416209

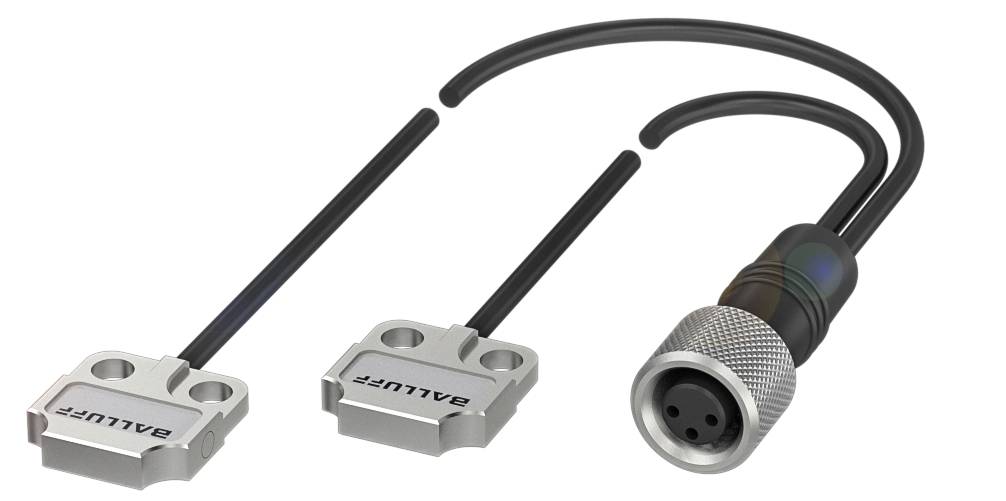

Two silver, rectangular sensors with black cables and a round three-pin connector, marked with 'BALLUFF'.

Image similar

Packaging type

Piece

Product type

Optical sensor head

Connector

Plug

Socket

Type

BOH002E

Cable length

1 m

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BOH002E one-way light barriers in different types of light

Dimensions 13.5 x 3 x 13 mm
Series R018
Interface: For switching amplifier
Optical sensor head
Optical functional principle: One-way light barrier

Technical specifications

Main features:Dimension 13.5 x 3 x 13 mm
Active surface, material: Glass
Connection: Cable with connector, M8x1 socket, 1 m, PUR
Series R018
Mounting: M3 screw
Optical sensor head
Optical functional principle: One-way light barrier
Housing material: Aluminium, anodized, natural
Smallest part type: 0.2 mm
Light: MICROSPOT-LED red light
Light spot size: Ø 10 mm with 100 mm
Range 0 m...500 mm
Interface: For switching amplifier
Beam characteristics: Varied, max. 3.5°
Additional features:
Optical sensor head
Dimensions 13.5 x 3 x 13 mm
Mounting: M3 screw
Connection: Cable with connector, M8x1-|female, 1 m, PUR
Rated switching distance Sn: 500 mm
Active surface, material: Glass
Switching output: For switching amplifier
Cable diameter D 1.80 mm
Cable length 1 m
Housing material: Aluminium, anodized, natural
Sheath material: PUR
Protection system: IP65
Ambient temperature -10...55 °C
Range 0 m...500 mm
Surface protection: Anodised, natural
Series R018
Shape: Cube|connection 90°
Optical functional principle: One-way light barrier
Light: MICROSPOT-LED red light
Light spot size: Ø 10 mm with 100 mm
Beam characteristics: Varied, max. 3.5°
Wavelength 650 nm
LED group according to IEC 62471: Free group
Smallest part type: 0.2 mm
Reference basic device: BAE SA-OH-059-…

Packaging type: Piece

Product type: Optical sensor head

Type: BOH002E

Connector: Plug
Socket

Cable length: 1 m

Enclosure material: Aluminium

Material properties: anodised

Transmitter type: LED red

Wavelength: 650 nm

: 500 mm

Features: Incl. enclosure

: IP65

Min. temperature: -10 °C

Max. temperature: 55 °C

Length: 13.00 mm

Width: 13.50 mm

Height: 3.00 mm

Depth: 13 m

Dim: (L x W x H) 13.00 x 13.50 x 3.00 mm

Content: 1 pc(s)

Material: Aluminium (anodized)

Switching distance (max.): 500 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416209 BALLUFF BOH002E BOH002E Optical sensor head 1 pc(s) (L x W x H) 13.00 x 13.50 x 3.00 mm Piece

User & Safety Instructions

User & Safety Instructions 3416209 BALLUFF BOH002E BOH002E Optical sensor head 1 pc(s) (L x W x H) 13.00 x 13.50 x 3.00 mm Piece

Description

The Microremote sensors' modular system with innovative sensor elements meets your individual requirements: Various housing designs ensure a particularly high degree of design freedom, precise optoelectronic components ensure a high level of process accuracy in every application. Series=R018, dimension=13.5 x 3 x 13 mm, interface=for switching amplifier, function principle=optical sensor head, functional principle optical=one-way light barrier, beam characteristic=diverse, max. 3.5°, light type=MICROSPOT-LED red light, light spot size=Ø 10 mm at 100 mm, range=0 m...500 mm, connection=cable with connector, M8x1 plug, 1.00 m, PUR, housing material=aluminum, active surface, material=glass, approval/conformity=CEWEEE

This text is machine translated.
