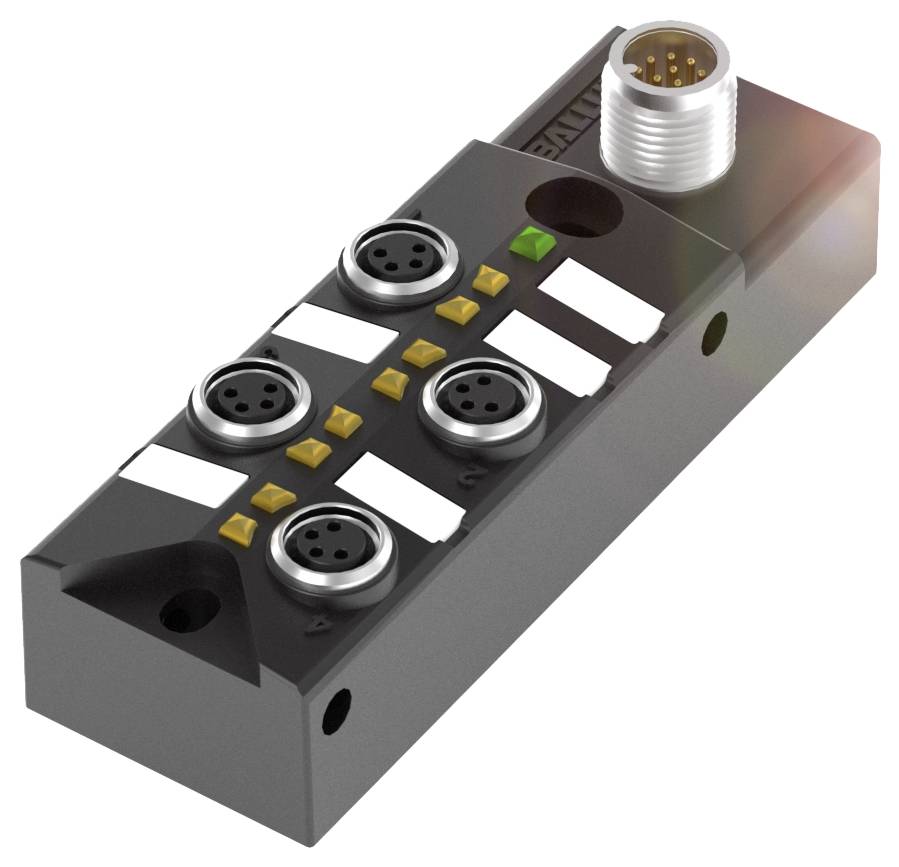

BALLUFF BPI00AC Sensor & actuator box (passive) Multi splitter 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor & actuator box (passive)
No. of signal spaces
4
No. of splitters
4-way
Type
BPI00AC
Status indicator
LED
Datasheet (PDF)
Highlights & Details
Balluff BPI00AC passive distributor
- Operating voltage display: Green LED
- Connection (COM 1): M12x1 connector, 12-pin
- Connection slots: 4x M8x1 socket, 4-pin
- Display of switching function: Yellow LED (8x)
- PNP signal type
Technical specifications
- Main features:Connection (COM 1): M12x1 plug, 12-pin
- Connection slots: 4x M8x1 socket, 4-pin
- Display of switching function: Yellow LED (8x)
- Output current max. 1.5 A
- Operating voltage Ub 10...30 VDC
- Operating voltage display: Green LED
- Protection class IP67
- PNP signal type
- Total current max. 1.5 A
- Ambient temperature: -25 to 80 °C
- Additional features:
- Supply: Identification plates (11x)|Cap (3x)
- Dimensions 89 x 30 x 26.6 mm
- M4 fixings (2x)
- Rated operating voltage Ue DC 24 V
- Operating voltage Ub 10...30 VDC
- Tightening torque 1.2 Nm ±0.2 (M4)
- PBT, GF casing material
- Protection class IP67, screwed down
- Ambient temperature: -25 to 80 °C
- Contact material: Bronze (CuSn6), nickel plated
- Display of switching function: Yellow LED (8x)
- Operating voltage display Electrical features: Green LED
- Output current max. 1.5 A
- Insulation resistance ≥ 10 GOhm
- Total current max. 1.5 A
- Connection slots: 4x M8x1 socket, 4-pin
- Contact carrier material PBT
- Cable plug tightening torque: 0.4 Nm + 0.1 Nm (M8|Connector)
- Forget: Yes
- Product type
Sensor & actuator box (passive)
- No. of signal spaces
4
- Type
BPI00AC
- No. of splitters
4-way
- Status indicator
LED
- Signal type
PNP
- Connection
M8 socket
- Width
89.00 mm
- Length
26.60 mm
IP67
- Max. power rating per slot
1.5 A
- Total current (direct supply)
1.5 A
- Max. temperature
80 °C
- Min. temperature
-25 °C
- Connector type (distribution boxes)
M8 receptacle
- Total no. of pins
4
- Manufacturer part #
BPI00AC
- Content
1 pc(s)
- Number of pins
4
- Height
30.00 mm
- Power rating (total)
1.5 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3422722 BALLUFF BPI00AC Sensor & actuator box (passive) Multi splitter 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3422722 BALLUFF BPI00AC Sensor & actuator box (passive) Multi splitter 1 pc(s)
Description
Passive interfaces from Balluff connect sensors and actuators with the control system. They are particularly suitable for harsh conditions and are Ideal when using coolants and lubricants. Its fully cast housing offers a high degree of protection and excellent shock and vibration resistance. Metallic screw inserts guarantee the fit of the plug connectors. Connection slots=4x M8x1 socket, 4-pole, operating voltage display=green LED, display switching function=yellow (8x), signal type=PNP, connection (COM 1)=M12x1 plug, 12-pole, operating voltage Ub=10...30 VDC, Output current max.=1.5 A, total current max.=1.5 A, ambient temperature=-25...80 °C, protection class=IP67
