BALLUFF Capacitive sensor Capacitive BCS010M BCS010M non-shielded NPN, change-over, PNP, change-over (Ø x H) 11.9 mm x 6
Product type
Capacitive sensor
Max. operating voltage
30.0 V
Outputs
NPN, change-over, PNP, change-over
Model
Capacitive
Connector
G 1/4"
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

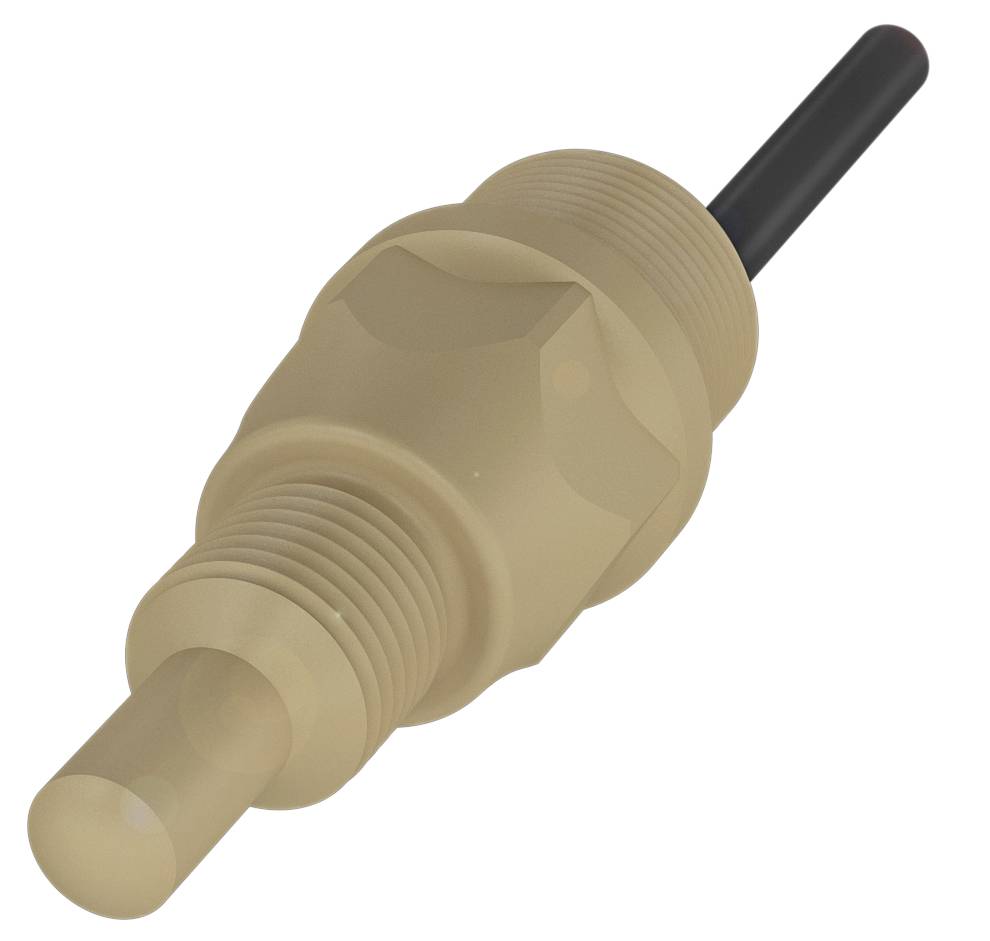

Balluff BCS010M For reading levels of electrically conductive media (Smart level technology)
- Connection: Cable, 2.00 m, PUR
- Dimensions: Ø 11.9 x 62.5 mm
- Fitting: Non-shielded
- Switching output PNP/NPN NO/NC (NO/NC) selectable
- S44 series
Technical specifications
- Main features:Dimensions: Ø 11.9 x 62.5 mm
- Active surface, material: PEEK
- Connection: Cable, 2.00 m, PUR
- S44 series
- Operating voltage Ub 10...30 VDC
- Fitting: Non-shielded
- Smart level 15 function
- Housing material PEEK
- Switching output PNP/NPN NO/NC (NO/NC) selectable
- Switching frequency 5 Hz
- Protection class IP67
- Sensitivity: Media-dependent adjustment
- Ambient temperature -5...105 °C, UL-approval only up to 85 °C.
- Additional properties: Electrically conductive media
- Foam- and adhesion compensation
- Additional features:
- Scope of delivery: Screwdriver|quick start guide
- Dimensions: Ø 11.9 x 62.5 mm
- Operating voltage display: Yes
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 50 mA
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 100 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Load capacity max. at Ue 10 µF
- Residual ripple max. (% of Ue): 10%
- Switching frequency 5 Hz
- Static voltage drop: 2 V
- Short-circuit protection: Yes
- Reverse polarity protection: No.
- Option to switch, protected: No.
- MTTF (40 °C) 135 a
- Active surface, material: PEEK
- Tightening torque 1.5 Nm
- Installation size G1/4"
- Fitting: Non-shielded
- Switching output: PNP/NPN NO/NC (NO/|NC) coded
- Cable diameter D 4.60 mm
- Cable length 2 m
- Housing material PEEK
- Sheath material: PUR
- Protection class IP67, active surface: IP68 10 bar
- Ambient temperature: -5...105 °C, UL-approval only up to|85 °C.
- Pollution level 3
- Number of conductors: 3
- Conductor cross-section: 0.34 mm²
- S44 series
- Idle current IO max. at Ue 12 mA
- Additional properties: Electrically conductive media|Foam and|adhesion compensation
- Sensitivity: Media-dependent adjustment
- Cover material PA
- Thread (A) G 1/4"
- Product type
Capacitive sensor
- Type
BCS010M
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
NPN, change-over, PNP, change-over
- Cable length
2.00 m
- Switching frequency
5 Hz
- Model
Capacitive
- Connector
G 1/4"
- Installation type
non-shielded
- Enclosure material
PEEK
IP67
- Min. temperature
-5 °C
- Max. temperature
105 °C
- Length
62.50 mm
- Width
62.5 mm
- Height
62.5 m
- (Ø)
11.9 mm
- Dim
(Ø x H) 11.9 mm x 62.5 m
- Jacket material
PUR
- Nominal voltage
30.0 V
- Operating voltage
24 V DC
- Operating current
50 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416713 BALLUFF Capacitive sensor Capacitive BCS010M BCS010M non-shielded NPN, change-over, PNP, change-over (Ø x H) 11.9 mm x 6
User & Safety Instructions
User & Safety Instructions 3416713 BALLUFF Capacitive sensor Capacitive BCS010M BCS010M non-shielded NPN, change-over, PNP, change-over (Ø x H) 11.9 mm x 6
Description
These capacitive sensors for level detection detect with their active surface the product, bulk material or liquids to be scanned in contact with the medium. Its spherical electrical field effectively compensates for adhesion to the active surface of the sensor. Dimensions = Ø 11.9 x 62.5 mm, series = S44, thread (A) = G 1/4", installation = not flush, connection = cable, 2.00 m, PUR, switching output=PNP/NPN NO/NC contact (NO/NC) codable, switching frequency=5 Hz, sensitivity=adjustable depending on the medium, function=Smart level 15, additional features=electrically conductive medium foam- and adhesion compensation, housing material=PEEK, active surface, material=PEEK, ambient temperature=-5...105 °C, Operating voltage Ub=10...30 VDC, approval/conformity=CEWEEE, protection class=IP67
