Name: BALLUFF Door frame light barrier BOW001J BOW001J Dynamic Dark-ON 1 pc(s)
Brand: BALLUFF
SKU: 3416626

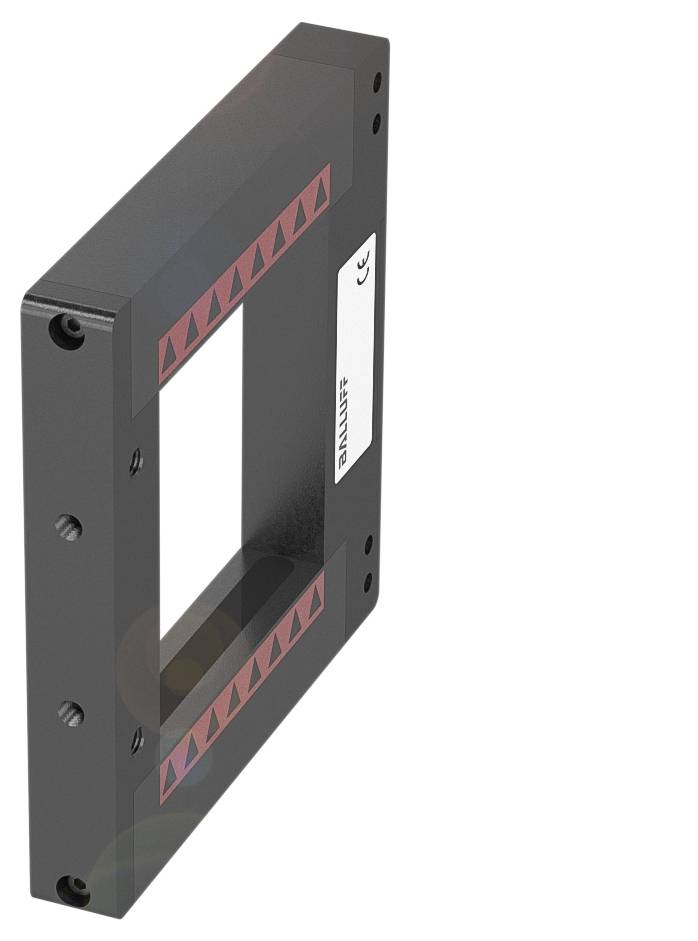

A rectangular, black frame with a square cutout in the center and red triangular patterns along the edges.

Image similar

Packaging type

Piece

Product type

Door frame light barrier

Functions

Dark-ON

Max. operating voltage

30.0 V

Connector

M8 (3-pin)

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BOW001J frame light barriers with dynamic output for falling objects

Dimensions 18 x 130 x 140 mm
Series A
Interface: PNP dynamic NO contact
Functional principle: Frame light barrier
Active window (PL × AL) 80 × 80 mm

Technical specifications

Main features:Dimension 18 x 130 x 140 mm
Active surface, material: PMMA
Active window (PL × AL) 80 × 80 mm
Connection: Plug connector, M8x1 plug, 3-pin
Series A
Operating voltage Ub 10...30 VDC
Functional principle: Frame light barrier
Optical functional principle: One-way light barrier
Housing material: Aluminium, anodized, black
Type of light: Infrared
Interface: PNP dynamic NO contact
Beam characteristics: Varied
Additional features:
Functional principle: Frame light barrier
Dimensions 18 x 130 x 140 mm
Mounting: Screw M6|screw M4
Rated operating voltage Ue DC 24 V
Rated operating current Ie 200 mA
Rated insulation voltage UI 75 V DC
Standby delay TV max.: 100 ms
Operating voltage Ub 10...30 VDC
Usage category: DC-13
Load capacity max. at Ue 0.1 µF
Residual current l max. 50 µA
Residual ripple max. (% of Ue): 15%
Switching frequency 100 Hz dynamic
Connection: Connector, M8x1 plug, 3-|pin
Short-circuit protection: Yes
Reverse polarity protection: Yes
Exchange possibility protected: Yes
Active surface, material: PMMA
Switching output: PNP dynamic NO
Housing material: Aluminium, anodized, black
EN 60068-2-27, shock: Half-sine, 30 gn, 11 ms, 3x6
EN 60068-2-6, vibration: 10…55 Hz, 0.5 mm, 3x5 min|55 Hz, 0.5 mm, 3 x 30 min.
Protection class IP67
Ambient temperature -10...55 °C
Pollution level 3
Setting option: Delay time|sensitivity dynamic
Surface protection: Anodised, black
Series A
Shape: Frame
Display: Output function dynamic -|LED red|LED green: Operating voltage
Potentiometer 270° (2x)
Off delay toff max.: 0.4 ms dyn.
Switch-on delay tone max.: 0.4 ms dyn.
Idle current IO max. at Ue 45 mA
Voltage drop Ud max. at Ie 2.5 V
External light max. 5000 Lux
Optical functional principle: One-way light barrier
Type of light: Infrared
Optical switching function: Dark switching
Beam characteristics: Varied
Wavelength 880 nm
Smallest part type: 1.0 mm dynamic
Active window (PL × AL) 80 × 80 mm
Time function: Switch-off delay dynamic
Time function, duration: T = 5…300 ms

Packaging type: Piece

Product type: Door frame light barrier

Type: BOW001J

Model: Dynamic

Functions: Dark-ON

Operating voltage: 24

Min. operating voltage: 10.0 V

Max. operating voltage: 30.0 V

Operating voltage: 10.0 - 30.0 V

Contact type: 1 maker

Switching frequency: 100 Hz

Connector: M8 (3-pin)

Enclosure material: Aluminium

Material properties: anodised

Transmitter type: LED IR

Wavelength: 880 nm

: IP67

Min. temperature: -10 °C

Max. temperature: 55 °C

Length: 140.00 mm

Width: 18.00 mm

Height: 130.00 mm

Depth: 140 m

Dim: (L x W x H) 140.00 x 18.00 x 130.00 mm

Content: 1 pc(s)

Nominal voltage: 30.0 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416626 BALLUFF Door frame light barrier BOW001J BOW001J Dynamic Dark-ON 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3416626 BALLUFF Door frame light barrier BOW001J BOW001J Dynamic Dark-ON 1 pc(s)

Description

Our frame light barriers are used where objects are not only to be queried selectively, but also in an area. Due to their large number of beams arranged in parallel, they can capture objects in a wide window. Our frame light barriers ensure a consistently high resolution at any point in the frame. Balluff's frame light barriers are available in dynamic and static versions. Series=A, dimension=18 x 130 x 140 mm, active window (PL × AL)=80 × 80 mm, interface=PNP dynamic NO contact (NO), operational principle=frame light barrier, optical function principle=one-way light barrier, beam characteristic=diverse, light type=infrared, connector=connector, M8x1 plug, 3-pin, housing material=aluminum, active surface, Material=PMMA, operating voltage Ub=10...30 VDC, certification/conformity=CEEEEE
