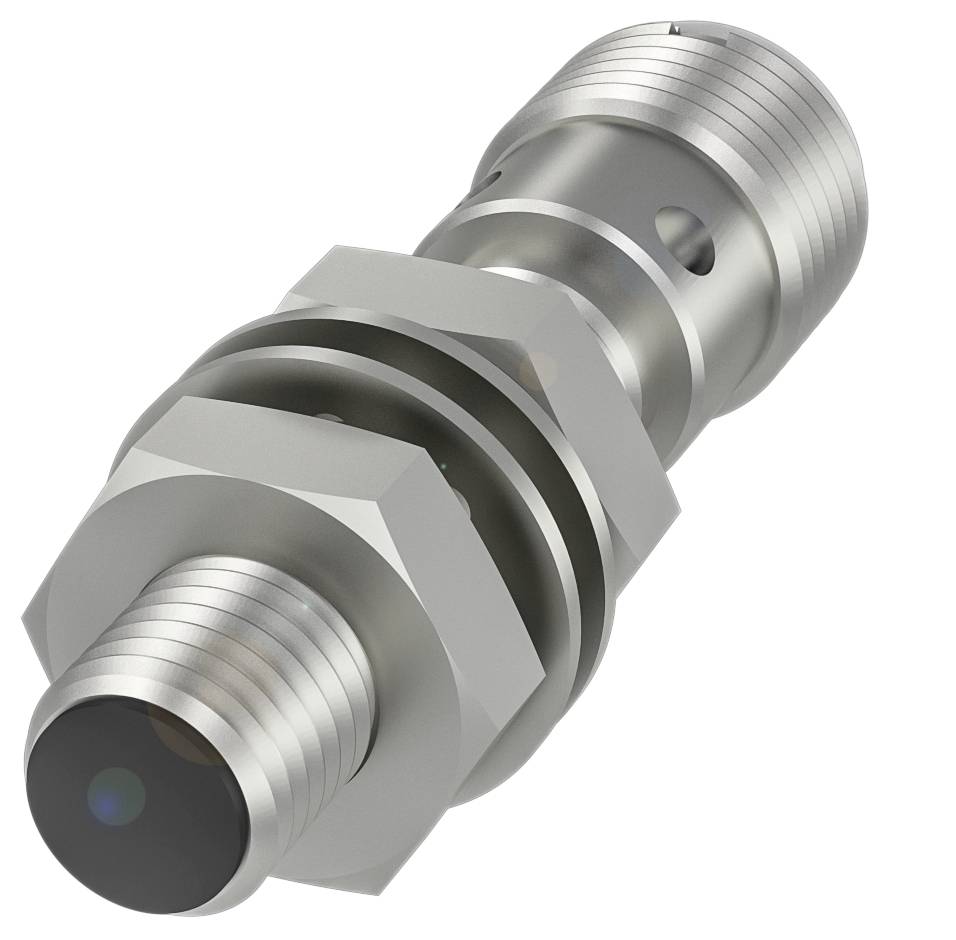

BALLUFF Inductive sensor Inductive BES0146 BES0146 M8 shielded PNP (Ø x H) 8 mm x 43 m Piece
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30.0 V
Switching distance (max.)
1.2 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BES0146 Inductive proximity switch
- Dimensions: Ø 8 x 43 mm
- M8x1 design
- Flush mounting
- Range: 1.5 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 8 x 43 mm
- Active surface, material: PBT
- Connection: Connector, M12x1 connector, 4-pin
- M8x1 design
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Stainless steel
- Range: 1.5 mm
- Switching output: PNP NO
- Switching frequency 3000 Hz
- Protection class: IP68
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 8 x 43 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 25 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 7 mA
- Idle current IO max., unattenuated: 2 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 3000 Hz
- Protection class: II
- Static voltage drop: 2.5 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.2 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 1.5 mm
- Real switching distance Sr:1.5 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 595 a
- Active surface, material: PBT
- Housing material Mechanical characteristics: Stainless steel
- Tightening torque 8 Nm
- Size M8x1
- Mounting length 28.00 mm
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES0146
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Switching distance (max.)
1.2 mm
- Outputs
PNP
- Enclosure material
Stainless steel
- Model
Inductive
- Material properties
rust-proof
- Installation type
shielded
- Size
M8
- Connector
M8
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP68
- Length
43.00 mm
- Height
43 m
- (Ø)
8 mm
- Dim
(Ø x H) 8 mm x 43 m
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
3000 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416894 BALLUFF Inductive sensor Inductive BES0146 BES0146 M8 shielded PNP (Ø x H) 8 mm x 43 m Piece
User & Safety Instructions
User & Safety Instructions 3416894 BALLUFF Inductive sensor Inductive BES0146 BES0146 M8 shielded PNP (Ø x H) 8 mm x 43 m Piece
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Inductive sensor, Ø 8 x 43 mm, connector, NO (NO), nominal switching distance Sn=1.5 mm, flush, Housing material=stainless steel, active surface, material=PBT
