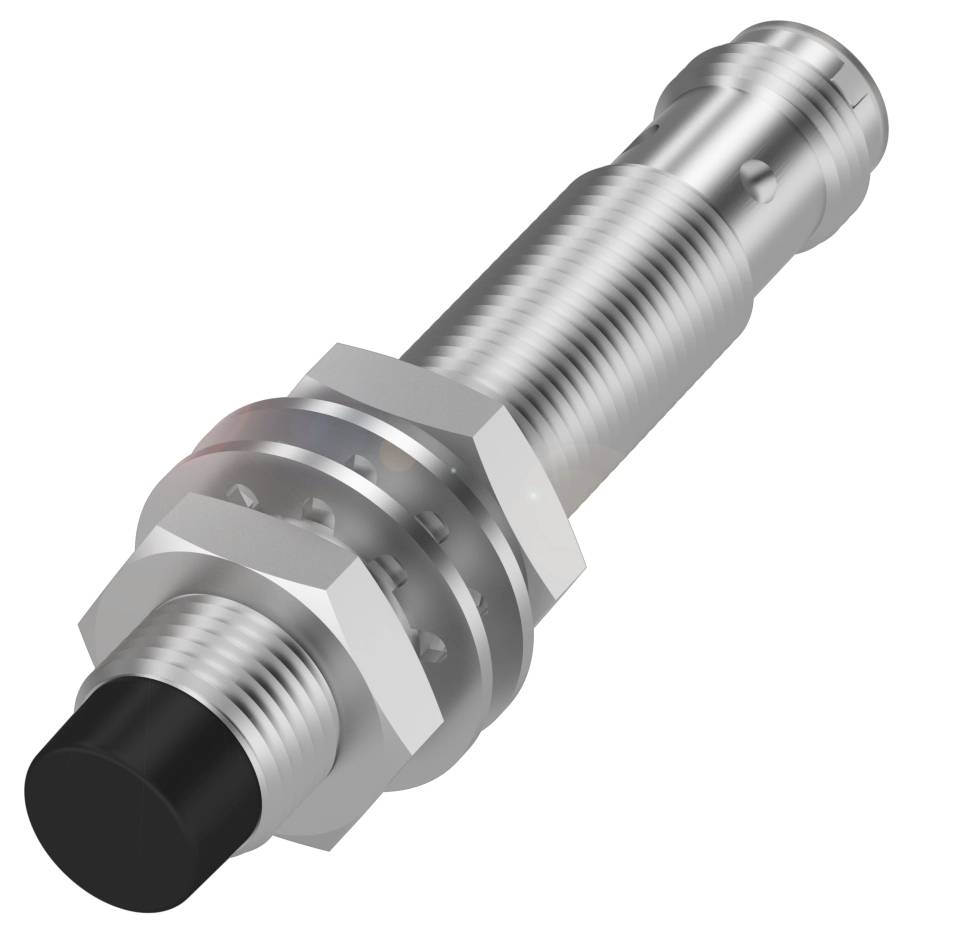

BALLUFF Inductive sensor Inductive BES0178 BES0178 non-shielded PNP (Ø x L) 12 mm x 70.00 mm Piece
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30.0 V
Switching distance (max.)
3.2 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
BES0178 Cylindrical design
- Dimensions: Ø 12 x 70 mm
- Design M12x1
- Fitting: Non-shielded
- Range: 4 mm
- Switching output PNP NO/NC
Technical specifications
- Main features:Dimensions: Ø 12 x 70 mm
- Active surface, material: PBT
- Connection: Connector, M12x1 connector, 4-pin
- Design M12x1
- Operating voltage Ub 10...30 VDC
- Fitting: Non-shielded
- Housing material: Stainless steel
- Range: 4 mm
- Switching output PNP NO/NC
- Switching frequency 2500 Hz
- Protection class: IP68
- Ambient temperature -40...85 °C
- Additional features:
- Dimensions: Ø 12 x 70 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 100.0 kOhm
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 23 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1.0 µF
- Idle current IO max., dammed.: 7 mA
- Idle current IO max., unattenuated: 4 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 2500 Hz
- Protection class: II
- Static voltage drop: 1.5 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 3.2 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 4 mm
- Real switching distance Sr:4 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 705 a
- Active surface, material: PBT
- Housing material Mechanical characteristics: Stainless steel
- Tightening torque 20 Nm
- Size M12x1
- Mounting length 35.50 mm
- Fitting: Non-shielded
- Switching output PNP NO/NC
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES0178
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Switching distance (max.)
3.2 mm
- Outputs
PNP
- Enclosure material
Stainless steel
- Model
Inductive
- Installation type
non-shielded
- Connector
M12
- Min. temperature
-40 °C
- Max. temperature
85 °C
IP68
- Length
70.00 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 70.00 mm
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
2500 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416838 BALLUFF Inductive sensor Inductive BES0178 BES0178 non-shielded PNP (Ø x L) 12 mm x 70.00 mm Piece
User & Safety Instructions
User & Safety Instructions 3416838 BALLUFF Inductive sensor Inductive BES0178 BES0178 non-shielded PNP (Ø x L) 12 mm x 70.00 mm Piece
Description
Our inductive standard BES sensors for the detection of electrically conductive metallic objects are robust and reliable. With a wide range of over 500 series, we offer the right inductive sensor for every application. The technology used worldwide has an optimum price-performance ratio and is available in a short time even for high quantities. Dimensions = Ø 12 x 70 mm, design = M12x1, installation = not flush, range = 4 mm, switching output = PNP NO/NC (NO/NC), switching frequency = 2500 Hz, housing material = stainless steel, active surface, material = PBT, connection = plug connector, M12x1 plug, 4-pin, operating voltage Ub = 10...30 VDC, ambient temperature = -40...85 °C, protection class = IP68, approval/conformity = CE, UKCA, cULus, WEEE
