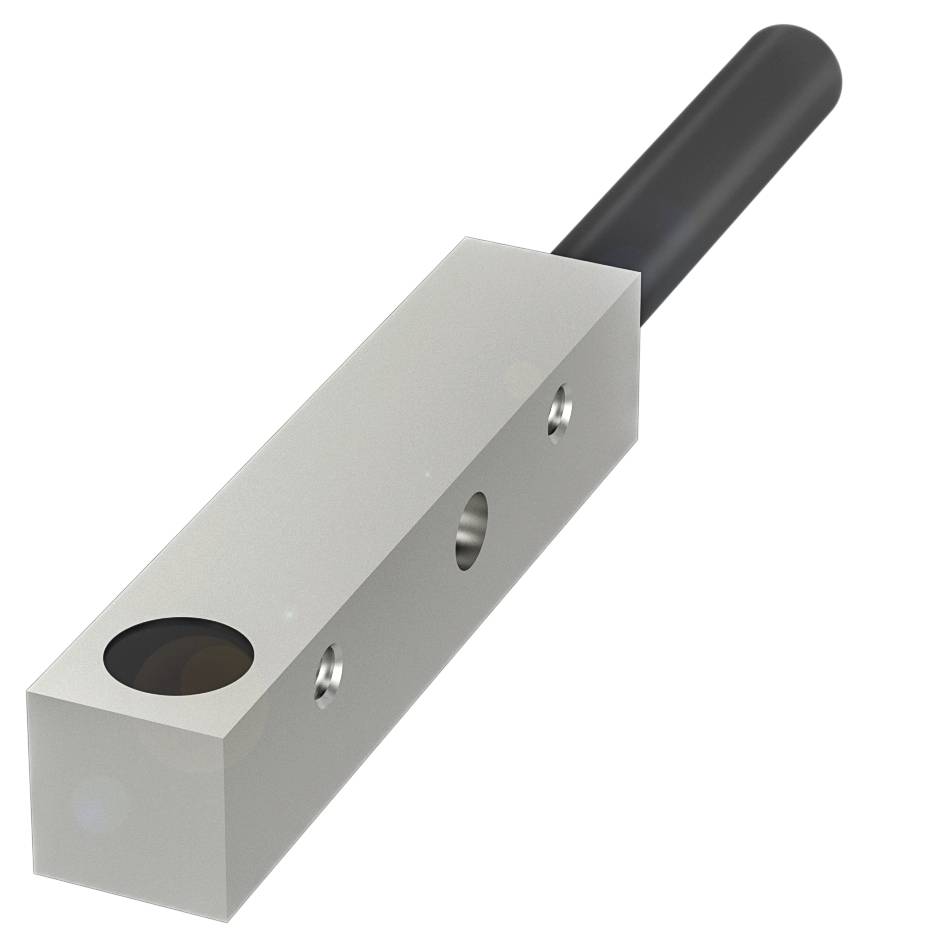

Image similar
BALLUFF Inductive sensor Inductive BES019R BES019R shielded PNP (Ø x H) 3 m x 5.00 mm Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30.0 V
Contact type
1 maker
Switching distance (max.)
0.65 mm
Datasheet (PDF)
Highlights & Details
Balluff BES019R Square compact design
- Dimensions 25 x 5 x 5 mm
- Design: 5x5
- Flush mounting
- Range: 0.8 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimension 25 x 5 x 5 mm
- Active surface, material: PBT
- Connection: Cable, 5.00 m, PUR
- Design: 5x5
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Aluminium, anodized
- Range: 0.8 mm
- Switching output: PNP NO
- Switching frequency 3000 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions 25 x 5 x 5 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: Open collector
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 15 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 1 mA
- Load capacity max. at Ue 0.2 µF
- Idle current IO max., dammed.: 10 mA
- Idle current IO max., unattenuated: 3 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 10%
- Switching frequency 3000 Hz
- Static voltage drop: 2.5 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 0.65 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 0.8 mm
- Real switching distance Sr:0.8 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 830 a
- Active surface, material: PBT
- Size 5x5
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Connection type: Cable, 5.00 m, PUR
- Cable diameter D 3.00 mm
- Cable length 5 m
- Housing material: Aluminium, anodized
- Sheath material: PUR
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Pollution level 3
- Number of conductors: 3
- Conductor cross-section: 0.14 mm²
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES019R
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 maker
- Switching distance (max.)
0.65 mm
- Outputs
PNP
- Enclosure material
Aluminium
- Model
Inductive
- Material properties
anodised
- Installation type
shielded
- Connector
Cable
- Cable length
5.00 m
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Length
5.00 mm
- Width
25.00 mm
- Height
5.00 mm
- (Ø)
3 m
- Dim
(Ø x H) 3 m x 5.00 mm
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
3000 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416696 BALLUFF Inductive sensor Inductive BES019R BES019R shielded PNP (Ø x H) 3 m x 5.00 mm Piece
User & Safety Instructions
User & Safety Instructions 3416696 BALLUFF Inductive sensor Inductive BES019R BES019R shielded PNP (Ø x H) 3 m x 5.00 mm Piece
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions = 25 x 5 x 5 mm, design = 5x5, installed = flush, range = 0.8 mm, switching output = PNP NO contact (NO), Switching frequency=3000 Hz, housing material=aluminum, active surface, material=PBT, connection=cable, 5.00 m, PUR, operating voltage Ub=10...30 VDC, ambient temperature=-25...70 °C, protection class=IP67, approval/conformity=cULusCEEACWEEE
