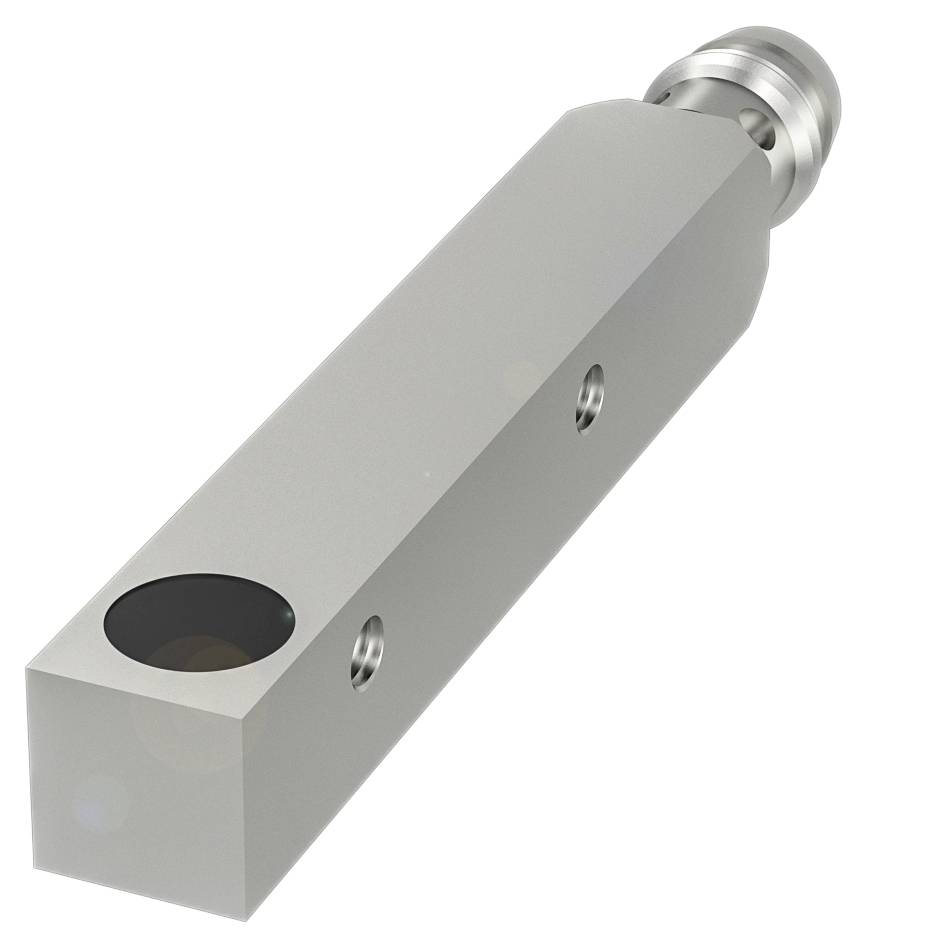

BALLUFF Inductive sensor Inductive BES01TF BES01TF shielded PNP (L x W x H) 8.00 x 59.00 x 8.00 mm
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Contact type
1 PNP
Switching distance (max.)
1.6 mm
Outputs
PNP
Datasheet (PDF)
Highlights & Details
Balluff BES01TF Square compact design
- Dimensions 59 x 8 x 8 mm
- Size: 8x8
- Flush mounting
- Range: 2 mm
- Switching output: PNP NC
Technical specifications
- Main features:Dimension 59 x 8 x 8 mm
- Active surface, material: PBT
- Connection: Plug connector, M8x1 plug, 3-pin
- Size: 8x8
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Zinc, die-cast
- Range: 2 mm
- Switching output: PNP NC
- Switching frequency 3000 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions 59 x 8 x 8 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 10 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 0.5 µF
- Idle current IO max., dammed.: 4 mA
- Idle current IO max., unattenuated: 12 mA
- Residual current l max. 80 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 3000 Hz
- Static voltage drop: 2.5 V
- M8x1 connection, 3-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.6 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 2 mm
- Real switching distance Sr:2 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 830 a
- Active surface, material: PBT
- Housing material Mechanical characteristics: Zinc, die cast
- Tightening torque 0.5 Nm
- Size 8x8
- Flush mounting: Flush mounting
- Switching output: PNP NC
- Switching distance indicator: ■■
- Product type
Inductive sensor
- Type
BES01TF
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 PNP
- Switching distance (max.)
1.6 mm
- Outputs
PNP
- Enclosure material
Zinc
- Model
Inductive
- Material properties
Die-cast
- Installation type
shielded
- Connector
M8 (3-pin)
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Length
8.00 mm
- Width
59.00 mm
- Height
8.00 mm
- Dim
(L x W x H) 8.00 x 59.00 x 8.00 mm
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
3000 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417217 BALLUFF Inductive sensor Inductive BES01TF BES01TF shielded PNP (L x W x H) 8.00 x 59.00 x 8.00 mm
User & Safety Instructions
User & Safety Instructions 3417217 BALLUFF Inductive sensor Inductive BES01TF BES01TF shielded PNP (L x W x H) 8.00 x 59.00 x 8.00 mm
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions = 59 x 8 x 8 mm, design = 8x8, installation = flush, range = 2 mm, switching output = PNP NC), Switching frequency=3000 Hz, casing material=zinc, pressure die cast, active surface, material=PBT, connection = plug connector, M8x1 plug, 3-pin, operating voltage Ub=10...30 VDC, ambient temperature=-25...70 °C, Protection class=IP67, Approval/conformity=CecULusEACWEEE
