Image similar

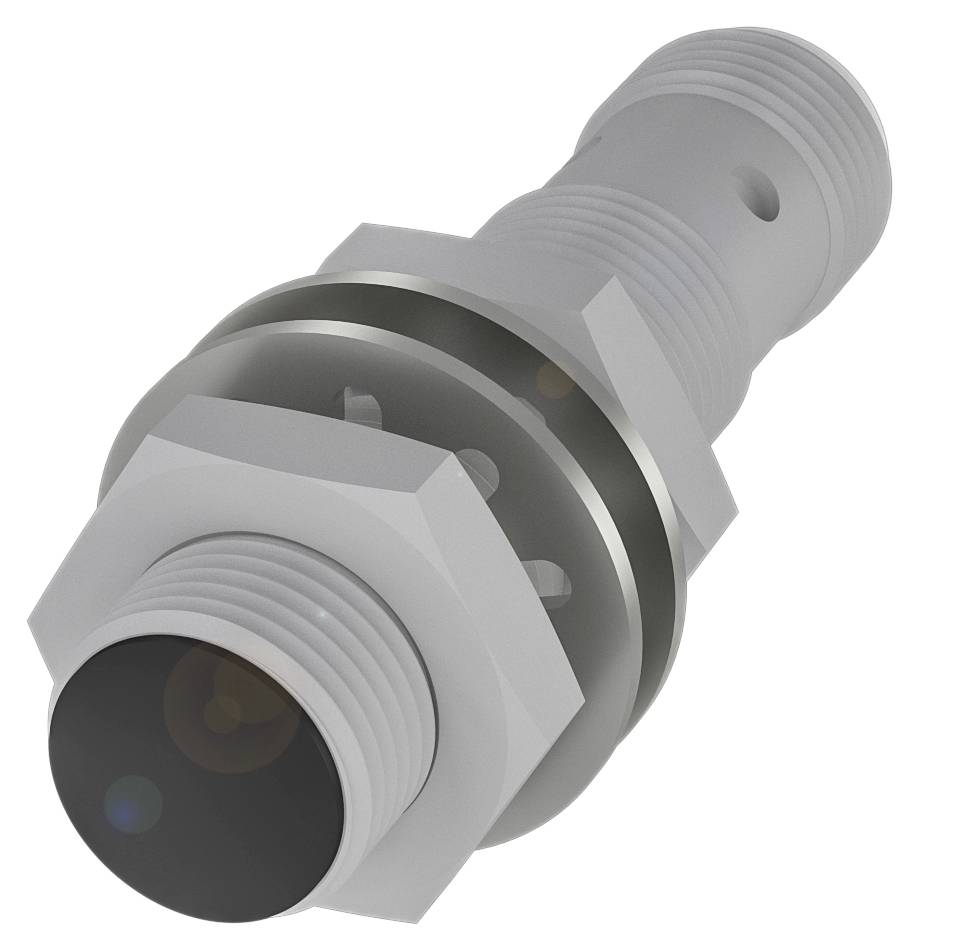

BALLUFF Inductive sensor Inductive BES02JZ BES02JZ M12 shielded PNP (Ø x L) 12 mm x 50.00 mm Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30.0 V
Contact type
1 maker
Switching distance (max.)
2.4 mm
Datasheet (PDF)
Highlights & Details
Balluff BES02JZ Cylindrical design for magnetic field-resistant applications
- Dimensions: Ø 12 x 50 mm
- Design M12x1
- Flush mounting
- Range: 3 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 12 x 50 mm
- Active surface, material: LCP/PTFE
- Connection: Connector, M12x1 connector, 4-pin
- Design M12x1
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Brass, coated, PTFE
- Magnetic field-proof: Magnetic field (AC/DC)
- Range: 3 mm
- Switching output: PNP NO
- Switching frequency 2000 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional properties: Factor 1
- sweat-resistant
- Additional features:
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 15 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 15 mA
- Idle current IO max., unattenuated: 10 mA
- Residual current l max. 80 µA
- Residual ripple max. (% of Ue): 10%
- Switching frequency 2000 Hz
- Protection class: II
- Static voltage drop: 2.5 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 2.4 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 3 mm
- Real switching distance Sr:3 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 320 a
- Active surface, material: LCP/PTFE
- Switching distance indicator: ■■
- Housing material: Brass, coated, PTFE
- Brand: Factor 1
- Additional properties: Factor 1|sweat-resistant
- Magnetic field strength, interference field: 100 kA/m
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES02JZ
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 maker
- Switching distance (max.)
2.4 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Material properties
teflon-coated
- Installation type
shielded
- Size
M12
- Connector
M12
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Length
50.00 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 50.00 mm
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
2000 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417431 BALLUFF Inductive sensor Inductive BES02JZ BES02JZ M12 shielded PNP (Ø x L) 12 mm x 50.00 mm Piece
User & Safety Instructions
User & Safety Instructions 3417431 BALLUFF Inductive sensor Inductive BES02JZ BES02JZ M12 shielded PNP (Ø x L) 12 mm x 50.00 mm Piece
Description
Balluff's inductive Factor 1 BES sensors can be used wherever various types of metals have to be detected evenly and with high precision. Our all-rounder for all metals reliably detects iron and non-ferrous metals, steel, brass, aluminum etc. without any reduction factor in the switching distance. In addition, they are magnetic field-proof and can therefore also be used in the area of strong electromagnetic fields - for example in welding systems. For this purpose we also provide variants with PTFE coating against welding spatter. Dimensions = Ø 12 x 50 mm, design = M12x1, installation = flush, range = 3 mm, switching output = PNP NO, switching frequency = 2000 Hz, housing material = brass, coated, PTFE, active surface, Material = LCP/PTFE, connection = plug-in connector, M12x1 plug, 4-pin, operating voltage Ub = 10...30 VDC, ambient temperature = -25...70 °C, magnetic field = magnetic field proof (AC/DC), protection = IP67, approval/conformity = CE, UKCA, cULus, WEEE, additional properties = factor 1, sweat-resistant
