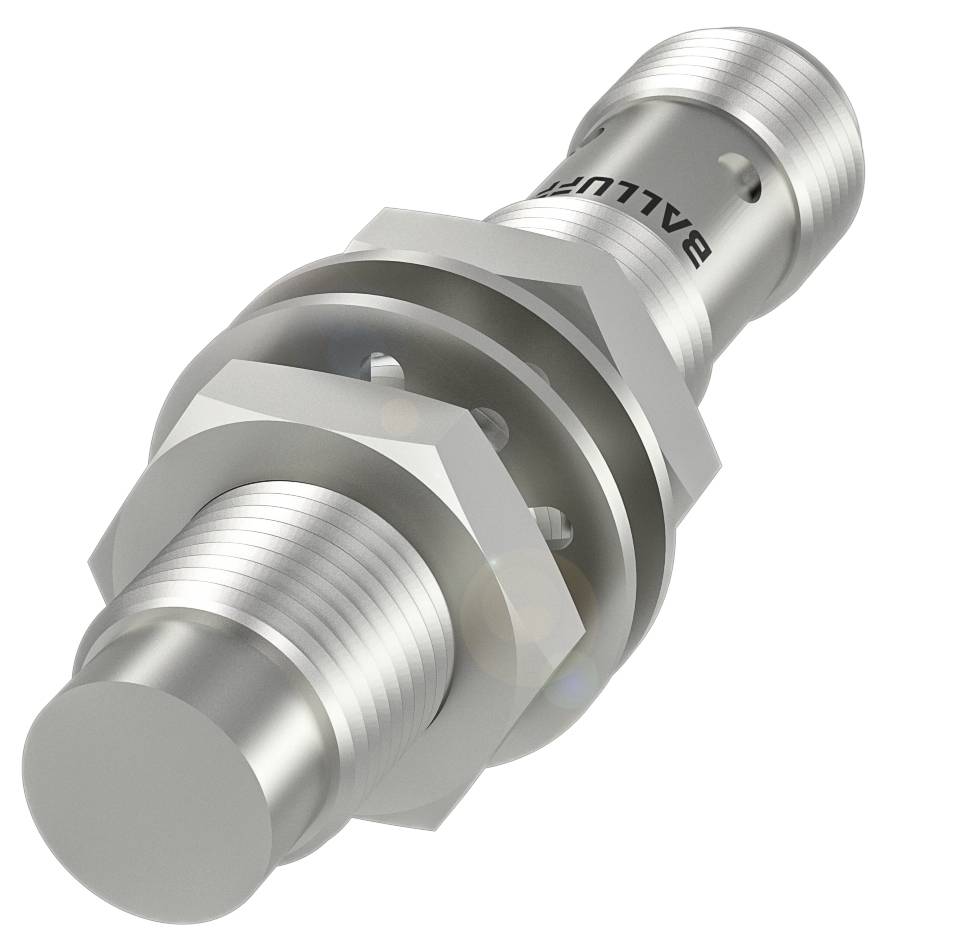

BALLUFF Inductive sensor Inductive BES02WE BES02WE non-shielded PNP (Ø x L) 12 mm x 60.00 mm Piece
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30.0 V
Switching distance (max.)
8.1 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BES02WE Cylindrical design for high pressure resistant applications
- Dimensions: Ø 12 x 60 mm
- Design M12x1
- Fitting: Non-shielded
- Range: 10 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 12 x 60 mm
- Active surface, material: Stainless steel
- Connection: Connector, M12x1 connector, 4-pin
- Design M12x1
- Operating voltage Ub 10...30 VDC
- Compressive strength max. 80 bar
- Fitting: Non-shielded
- Housing material: Stainless steel
- Range: 10 mm
- Switching output: PNP NO
- Switching frequency 350 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 12 x 60 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 47.0 kOhm
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 10 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 16 mA
- Idle current IO max., unattenuated: 9 mA
- Residual current l max. 100 µA
- Residual ripple max. (% of Ue): 20%
- Switching frequency 350 Hz
- Static voltage drop: 2 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 8.1 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 10 mm
- Real switching distance Sr:10 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 335 a
- Active surface, material: Stainless steel
- Tightening torque: 10 Nm ±10%
- Size M12x1
- Mounting length 36.00 mm
- Fitting: Non-shielded
- Switching output: PNP NO
- Switching distance indicator: ■■■
- Housing material: Stainless steel
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Pollution level 3
- Compressive strength max. 80 bar
- Compressive strength, note: Pressure-resistant
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES02WE
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Switching distance (max.)
8.1 mm
- Outputs
PNP
- Enclosure material
Stainless steel
- Model
Inductive
- Installation type
non-shielded
- Connector
M12
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Length
60.00 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 60.00 mm
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
350 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417324 BALLUFF Inductive sensor Inductive BES02WE BES02WE non-shielded PNP (Ø x L) 12 mm x 60.00 mm Piece
User & Safety Instructions
User & Safety Instructions 3417324 BALLUFF Inductive sensor Inductive BES02WE BES02WE non-shielded PNP (Ø x L) 12 mm x 60.00 mm Piece
Description
Our high pressure inductive sensors can withstand a pressure of up to 500 bar. They are therefore perfect for monitoring the position of your hydraulics, such as for the end position control of hydraulic cylinders or the monitoring of valve positions. Dimensions=Ø 12 x 60 mm, design=M12x1, installation=not flush, range=10 mm, switching output=PNP NO (NO), Switching frequency=350 Hz, casing material=stainless steel, active surface, material=stainless steel, connection=connector, M12x1 plug, 4-pin, operating voltage Ub=10...30 VDC, ambient temperature=-25...70 °C, protection class=IP67, approval/conformity=CecULusEACWEEE
