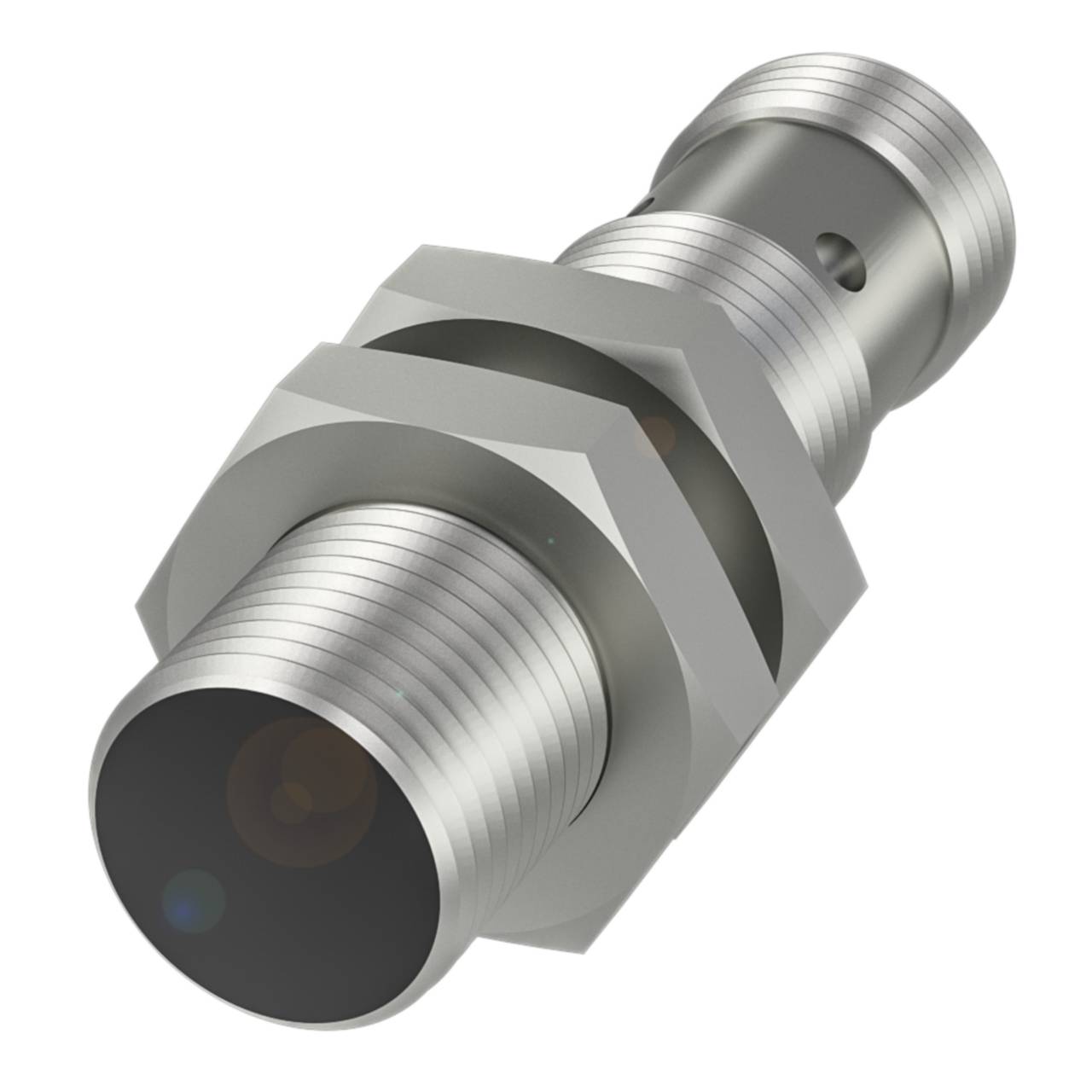

BALLUFF Inductive sensor Inductive BES02ZU BES02ZU M12 shielded NAMUR (Ø x H) 12 mm x 45 m
Product type
Inductive sensor
Max. operating voltage
9.0 V
Switching distance (max.)
3.2 mm
Outputs
NAMUR
Model
Inductive
EAN:
Part number:
Item no:
Highlights & Details
Balluff BES02ZU Cylindrical design for hazardous areas

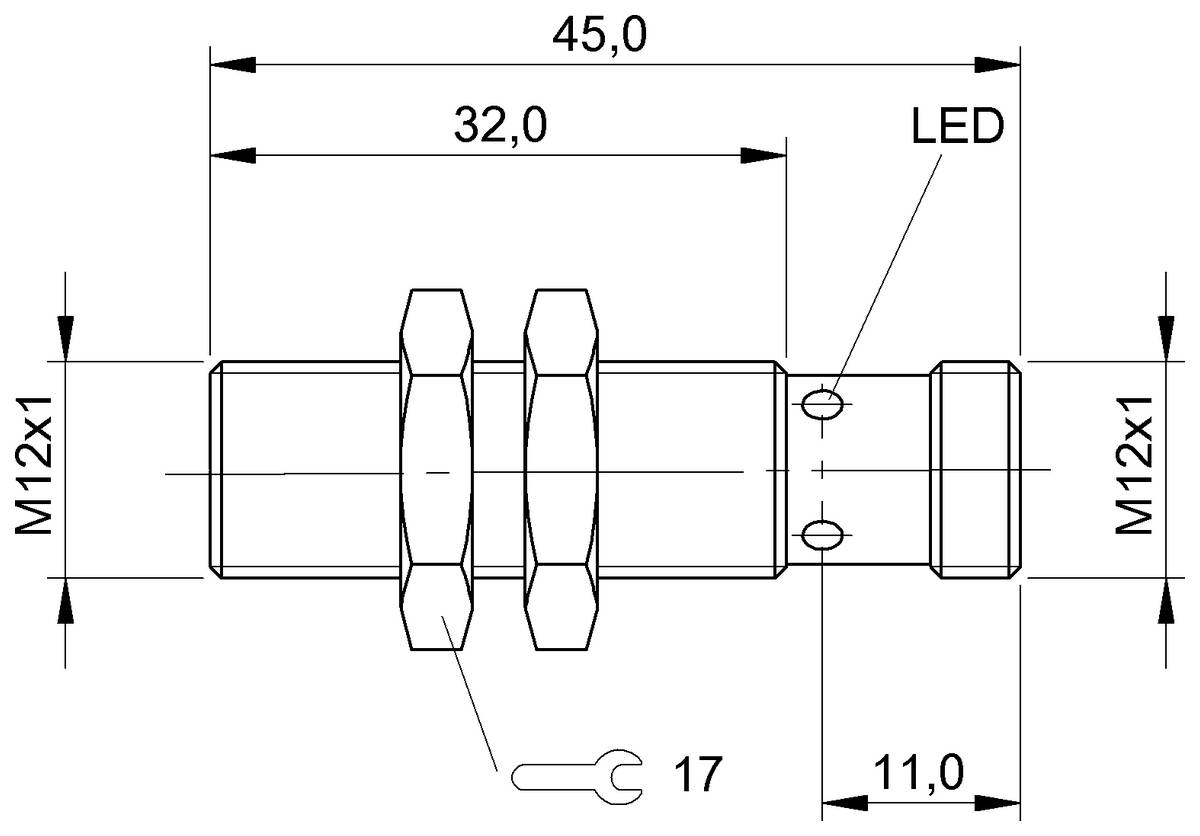

- Dimensions: Ø 12 x 45 mm
- Design M12x1
- Flush mounting
- Range: 4 mm
- Interface: NAMUR
Technical specifications
- Main features:Dimensions: Ø 12 x 45 mm
- Active surface, material: PBT
- Connection: Connector, M12x1 connector, 4-pin
- Design M12x1
- Operating voltage Ub 7.7...9 VDC
- Flush mounting
- Ex category: ATEX: 1D (EPL Da)
- ATEX 1G (EPL GA)
- ATEX 2D (EPL DB)
- ATEX 2G (EPL GB)
- ATEX 3D (EPL DC)
- ATEX 3G (EPL GC)
- Housing material: Brass, nickel-free coated
- Range: 4 mm
- Switching frequency 700 Hz
- Interface: NAMUR
- Ambient temperature -20...70 °C
- Additional features:
- Rated operating voltage Ue DC 8.2 V
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 30 ms
- Operating voltage Ub 7.7...9 VDC
- Switching frequency 700 Hz
- Connection: M12x1 4-pin connector, A-coded
- Reverse polarity protection: No.
- Guaranteed switching distance of Sa: 3.2 mm
- Rated switching distance Sn: 4 mm
- Real switching distance Sr:4 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- Ex marking: ATEX: Ex II 1G Ex ia IIC T6 Ga Ta:|-20 ... 70 °C|Ex II 1D Ex ia IIIC T90°C Da Ta: -20|EN 60079-11|EN 60079-26|IEC 60079-0|IEC 60079-11
- Rated load resistance RV 1000 Ohm
- Internal inductance Li max. 0,115 nH
- Internal capacity CI max.: 210 nF
- Power consumption max., dammed 1 mA
- Current consumption min., unattenuated Electrical connection: 2.1 mA
- Product type
Inductive sensor
- Type
BES02ZU
- Min. operating voltage
7.7 V
- Max. operating voltage
9.0 V
- Operating voltage
7.7 - 9.0 V
- Switching distance (max.)
3.2 mm
- Outputs
NAMUR
- Enclosure material
Brass
- Model
Inductive
- Installation type
shielded
- Size
M12
- Connector
M12
- Min. temperature
-20 °C
- Max. temperature
70 °C
- Length
45.00 mm
- Height
45 m
- (Ø)
12 mm
- Dim
(Ø x H) 12 mm x 45 m
- Content
1 pc(s)
- Nominal voltage
8.2 V
- Switching frequency
700 Hz
- UKCA
yes
Documents & Downloads
Conformity certificate
Conformity certificate 3417294 BALLUFF Inductive sensor Inductive BES02ZU BES02ZU M12 shielded NAMUR (Ø x H) 12 mm x 45 m
Description
For all Ex-zones, we supply inductive sensors. These wear-free switches can be used in areas of zones 2/22, where an explosive atmosphere only rarely occurs (category 3G/3D), up to areas of zones 0/20, where the highest explosion hazard exists.With a wide range of sensor variants, we offer a wide range of applications so that you can solve a wide variety of requirements. The comprehensive portfolio includes, for example, high-pressure sensors up to 500 bar or sensors with extended temperature range - in different designs. You will of course also get the suitable accessories, such as NAMUR isolating amplifiers or connecting cables. Dimensions = Ø 12 x 45 mm, design = M12x1, installation = flush, range = 4 mm, interface = NAMUR, switching frequency = 700 Hz, housing material = brass, nickel free coated, active surface, material = PBT, Connection = plug connector, M12x1 plug, 4-pin, operating voltage Ub = 7.7...9 VDC, ambient temperature = -20...70 °C, Ex category = ATEX: 1D (EPL Da), ATEX: 2D (EPL DB), ATEX: 2G (EPL GB), ATEX: 3D (EPL Dc), ATEX: 3G (EPL GC), approval/conformity = CE, ATEX, IECEx cCSAus, WEEE, CCC Ex
