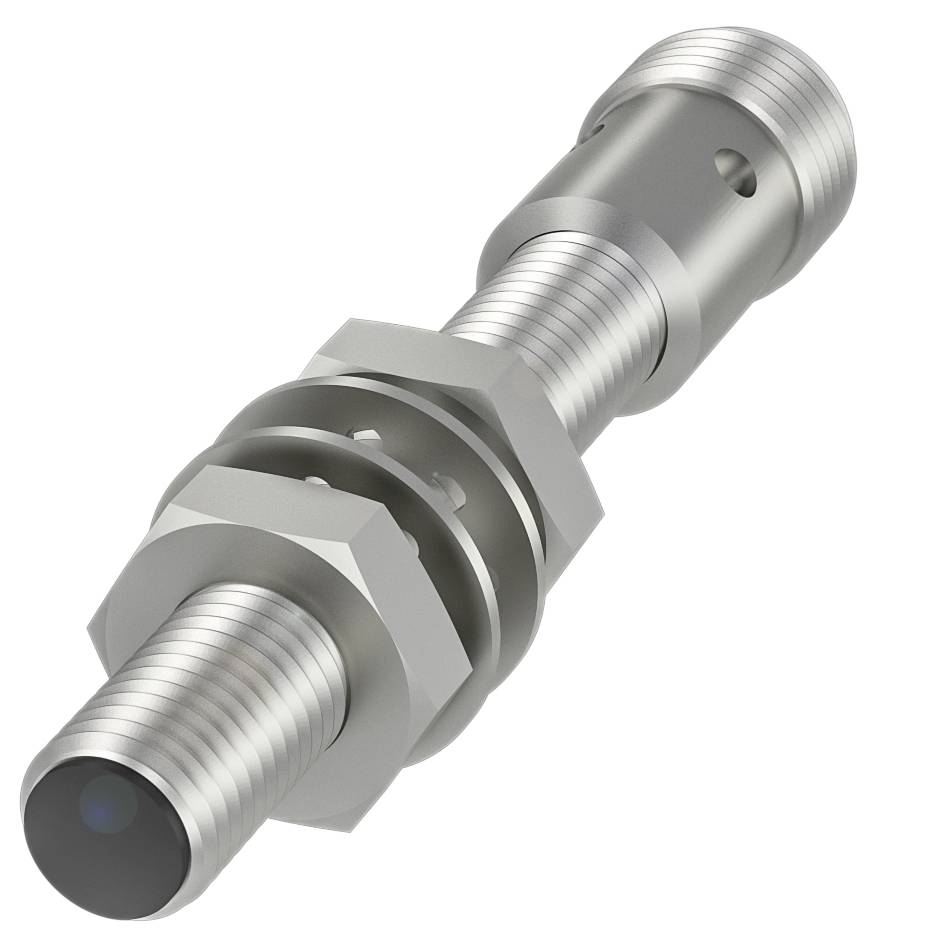

BALLUFF Inductive sensor Inductive BES03T5 BES03T5 shielded PNP (Ø x H) 8 mm x 65 m Piece
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30.0 V
Outputs
PNP
Switching distance (max.)
1.6 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BES03T5 Inductive proximity switch
- Dimensions: Ø 8 x 65 mm
- M8x1 design
- Flush mounting
- Range: 2 mm
- Switching output: PNP NC
Technical specifications
- Main features:Dimensions: Ø 8 x 65 mm
- Active surface, material: PA 12
- Connection: Connector, M12x1 connector, 4-pin
- M8x1 design
- Operating voltage Ub 12...30 VDC
- Flush mounting
- Housing material: Nickel-plated brass
- Range: 2 mm
- Switching output: PNP NC
- Switching frequency 700 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 8 x 65 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 25 ms
- Operating voltage Ub 12...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 2 mA
- Idle current IO max., unattenuated: 7 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 700 Hz
- Protection class: II
- Static voltage drop: 2.5 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.6 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 2 mm
- Real switching distance Sr:2 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 595 a
- Active surface, material: PA 12
- Housing material Mechanical characteristics: Brass, nickel-plated
- Tightening torque 3 Nm
- Size M8x1
- Mounting length 48.00 mm
- Flush mounting: Flush mounting
- Switching output: PNP NC
- Switching distance indicator: ■■
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES03T5
- Min. operating voltage
12.0 V
- Max. operating voltage
30.0 V
- Operating voltage
12.0 - 30.0 V
- Outputs
PNP
- Switching distance (max.)
1.6 mm
- Switching frequency
700 Hz
- Model
Inductive
- Connector
M8
- Installation type
shielded
- Material properties
nickel plated
- Enclosure material
Brass
- Contact type
1 breaker
IP68
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
63.00 mm
- Height
65 m
- (Ø)
8 mm
- Dim
(Ø x H) 8 mm x 65 m
- Nominal voltage
24 V
- UKCA
no
Documents & Downloads
Datasheet
Datasheet 3417325 BALLUFF Inductive sensor Inductive BES03T5 BES03T5 shielded PNP (Ø x H) 8 mm x 65 m Piece
User & Safety Instructions
User & Safety Instructions 3417325 BALLUFF Inductive sensor Inductive BES03T5 BES03T5 shielded PNP (Ø x H) 8 mm x 65 m Piece
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=Ø 8 x 65 mm, design=M8x1, installation=flush, range=2 mm, switching output=PNP NC), Switching frequency=700 Hz, casing material=brass, surface protection=nickel-free coated, active surface, material=PA 12, connection=plug connector, M12x1 plug, 4-pin, operating voltage Ub=12...30 VDC, ambient temperature=-25...70 °C, Protection class=IP68, approval/conformity=CecULusEACWEEE
