Name: BALLUFF Optical sensor BOS0016 BOS0016 Light-ON 1 pc(s)
Brand: BALLUFF
SKU: 3416570

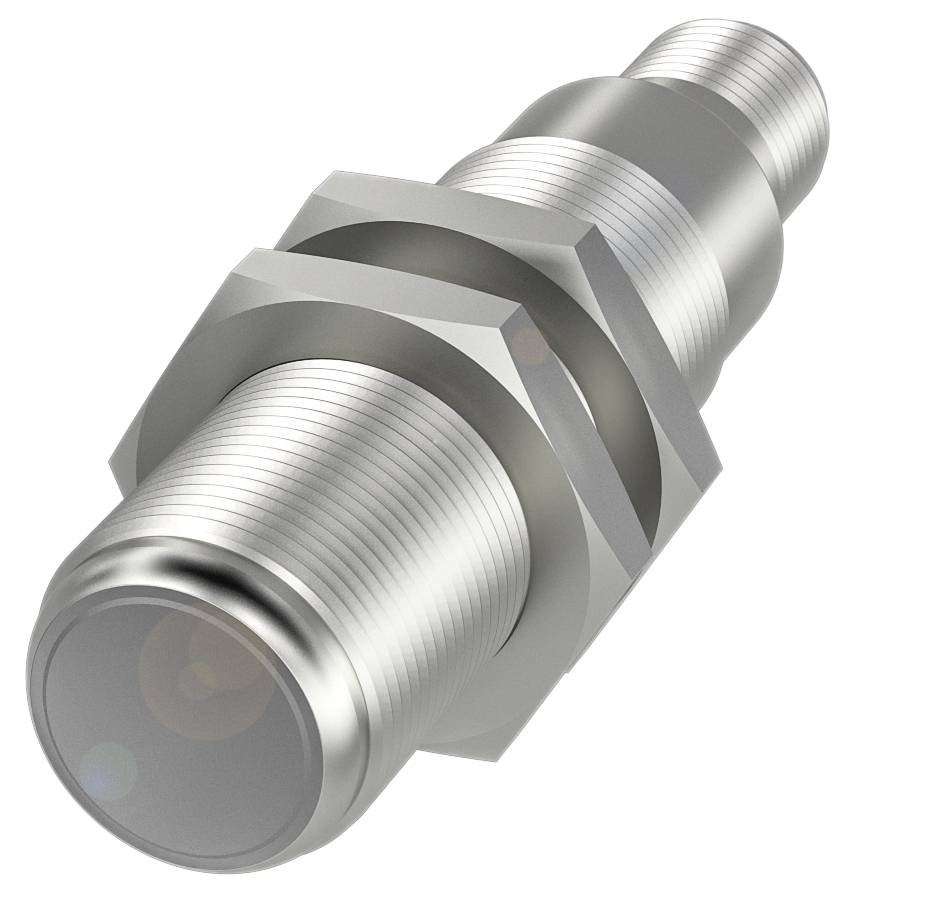

A cylindrical metal object with threading and hexagonal nuts, possibly a sensor or a technical component.

Image similar

Packaging type

Single

Product type

Optical sensor

Functions

Light-ON

Max. operating voltage

30.0 V

Connector

M12 (4-pin)

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

BALLUFF BOS0016 Cylindrical light sensors with M18 thread and different types of light

Dimensions: Ø 18 x 72 mm
Series 18E
PNP NO interface
Functional principle: Optoelectronic sensor
Optical operating principle: Light switch, triangulation

Technical specifications

Main features:Dimensions: Ø 18 x 72 mm
Active surface, material: Glass
Connection: Connector, M12x1 connector, 4-pin
Series 18E
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical operating principle: Light switch, triangulation
Housing material: Stainless steel (1.4571)
LED red light
Light spot size: Ø 5 mm with 20 mm
Optical characteristic: Fixed background suppression, not suitable for very dark objects
Range 0...40 mm
PNP NO interface
Beam characteristic: Focus typical at 16 mm
Additional features:
Functional principle: Optoelectronic sensor
Dimensions: Ø 18 x 72 mm
Attachment: Nut M18x1
Output resistance Ra: 33.0 kOhm
Rated operating voltage Ue DC 24 V
Rated operating current Ie 200 mA
Rated insulation voltage UI 250 V AC
Standby delay TV max.: 10 ms
Operating voltage Ub 10...30 VDC
Usage category: DC-13
Load capacity max. at Ue 1 µF
Residual current l max. 50 µA
Residual ripple max. (% of Ue): 15%
Switching frequency 100 Hz
Protection class: II
Connection: Connector, M12x1 connector, 4-|pin
Short-circuit protection: Yes
Reverse polarity protection: Yes
Exchange possibility protected: Yes
Rated switching distance Sn: 40 mm
Temperature drift max. (% of Sr): 10%
Repeatability max. (% of Sr): 5.0%
MTTF (40 °C) 909 a
Active surface, material: Glass
Housing material: Stainless steel (1.4571)
Range 0...40 mm
Tightening torque max.: 30 Nm|40 Nm
Contacts, surface protection: Gold-plated
Series 18E
Shape: Cylinder|straight lens
Adjuster: No
Shutdown delay toff max.: 5 ms
ON delay max.: 5 ms
Idle current IO max. at Ue 20 mA
Voltage drop Ud max. at Ie 2.5 V
Hysteresis H max.: 30.0 %

Packaging type: Single

Product type: Optical sensor

Type: BOS0016

Functions: Light-ON

Operating voltage: 24

Min. operating voltage: 10.0 V

Max. operating voltage: 30.0 V

Operating voltage: 10.0 - 30.0 V

Contact type: 1 maker

Outputs: PNP

Switching frequency: 100 Hz

Connector: M12 (4-pin)

Size: M18

Enclosure material: Stainless steel

Transmitter type: LED red

: 40 mm

Features: Incl. background suppression

: IP68

Min. temperature: -5 °C

Max. temperature: 75 °C

Length: 72.00 mm

Content: 1 pc(s)

Nominal voltage: 30.0 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416570 BALLUFF Optical sensor BOS0016 BOS0016 Light-ON 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3416570 BALLUFF Optical sensor BOS0016 BOS0016 Light-ON 1 pc(s)

Description

Diffuse sensors with background suppression ensure reliable detection, regardless of surface, color and material. Their scanning method is almost constant even at various degrees of emission. Series=18E, dimension=Ø 18 x 72 mm, interface=PNP NO, operational principle=opto-electronic sensor, optical functional principle=light switch, triangulation, Special feature = fixed background suppression, radiation characteristics=focus typically at 16 mm, light type=LED red light, light spot size=Ø 5 mm at 20 mm, range=0...40 mm, connection=connector, M12x1 connector, 4-pole, Housing material=stainless steel (1.4571), active surface, material=glass, operating voltage Ub=10...30 VDC, approval/conformity=CEWEEE

This text is machine translated.
