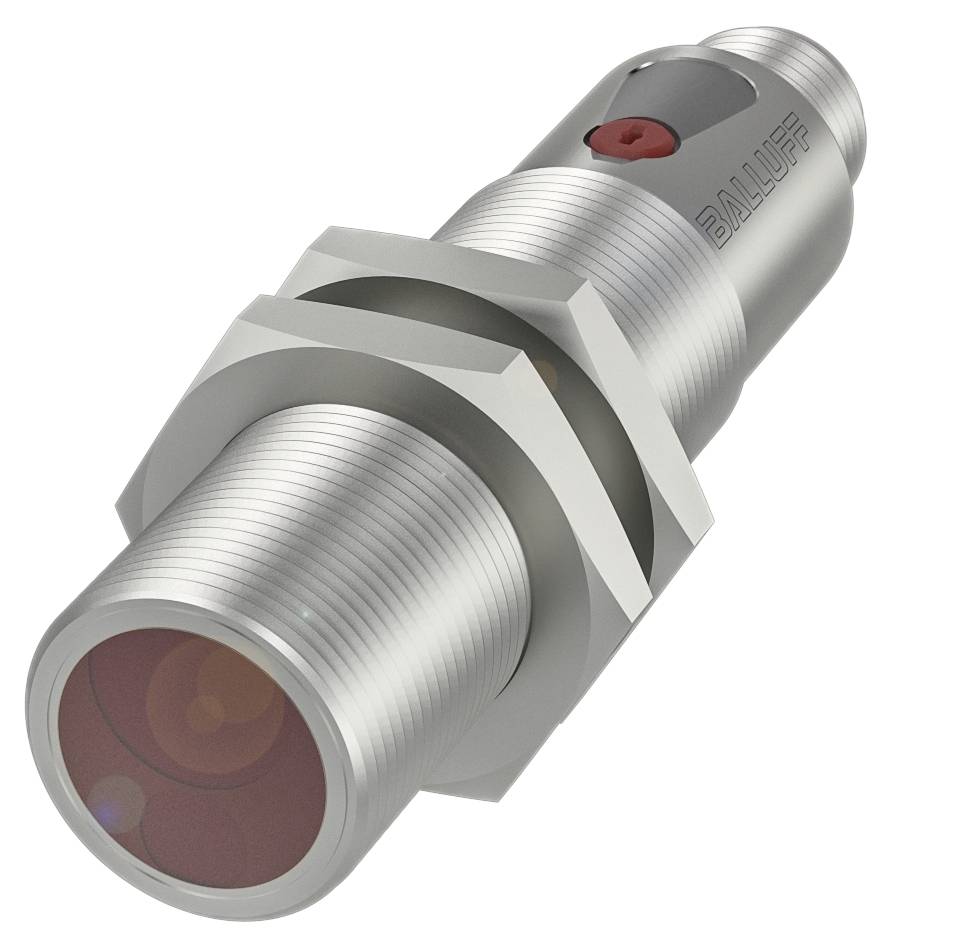

Image similar
BALLUFF Optical sensor BOS002K BOS002K Light-ON 1 pc(s)
Product type
Optical sensor
Functions
Light-ON
Max. operating voltage
30.0 V
Connector
M12 (4-pin)
Type
BOS002K
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BOS002K Cylindrical Light Switch with M18 thread and different types of light
- Dimensions: Ø 18 x 75 mm
- 18M series
- PNP NO interface
- Functional principle: Optoelectronic sensor
- Optical operating principle: Light switch, triangulation
Technical specifications
- Main features:Dimensions: Ø 18 x 75 mm
- Active surface, material: PMMA
- Connection: Connector, M12x1 connector, 4-pin
- 18M series
- Operating voltage Ub 10...30 VDC
- Functional principle: Optoelectronic sensor
- Optical operating principle: Light switch, triangulation
- Housing material: Nickel-plated brass
- Light: Red laser light
- Light spot size: 0.05 x 0.1 mm in focus
- Optical special feature: Background suppression
- Range 30...150 mm
- PNP NO interface
- Beam characteristic: Focus typical at 100 mm
- Additional features:
- Functional principle: Optoelectronic sensor
- Dimensions: Ø 18 x 75 mm
- Attachment: Nut M18x1
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 200 ms
- Hysteresis H max. (% of Sr): 5.0%
- Rated switching distance Sn: 150 mm, adjustable
- Temperature drift max. (% of Sr): 15%
- MTTF (40 °C) 455 a
- Active surface, material: PMMA
- Housing material: Nickel-plated brass
- Distance deviation 18 % max. (% of Sr): 8 %
- Range 30...150 mm
- Tightening torque max.: 15 Nm|30 Nm
- Surface protection: Nickel-plated
- 18M series
- Shape: Cylinder|straight lens
- Shutdown delay toff max.: 1 ms
- Repeatability max. (% of Sr) Functional safety: 1.0%
- Distance deviation 6 % max. (% of Sr): 16.0 %
- Product type
Optical sensor
- Type
BOS002K
- Functions
Light-ON
- Operating voltage
24
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 maker
- Outputs
PNP
- Connector
M12 (4-pin)
- Size
M18
- Enclosure material
Brass
- Material properties
nickel plated
- Transmitter type
SC laser red
150 mm
- Features
Incl. background suppression
IP67
- Min. temperature
-5 °C
- Max. temperature
55 °C
- Length
75.00 mm
- Content
1 pc(s)
- Nominal voltage
30.0 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416584 BALLUFF Optical sensor BOS002K BOS002K Light-ON 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3416584 BALLUFF Optical sensor BOS002K BOS002K Light-ON 1 pc(s)
Description
Diffuse sensors with background suppression ensure reliable detection, regardless of surface, color and material. Their scanning method is almost constant even at various degrees of emission. Series=18M, dimension=Ø 18 x 75 mm, interface=PNP NO, operational principle=opto-electronic sensor, optical functional principle=light switch, triangulation, Special feature = background suppression, radiation characteristics=focus typically at 100 mm, light type=laser red light, light spot size=0.05 x 0.1 mm in focus, range=30...150 mm, connection=connector, M12x1 connector, 4-pin, Housing material=brass, active surface, material=PMMA, operating voltage Ub=10...30 VDC, approval/conformity=CecULUSEACWEEE
This text is machine translated.
This text is machine translated.
Hints
For more information on this BOS002K, please refer to its datasheet under 'downloadable documents'
