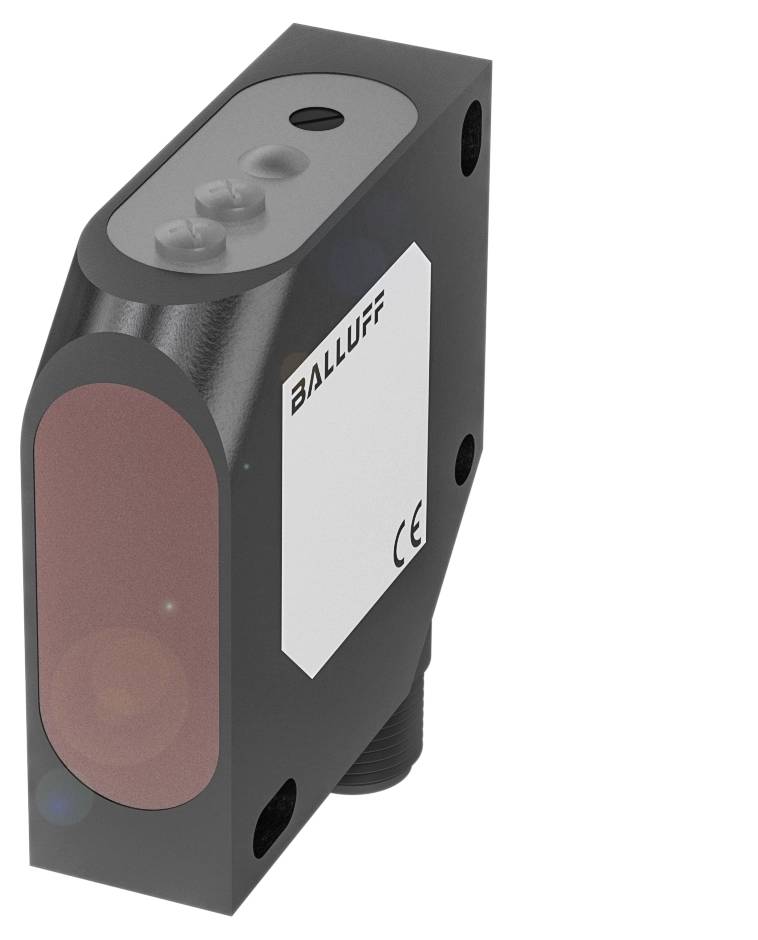

Image similar
BALLUFF Optical sensor BOS0089 BOS0089 Light-ON 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Optical sensor
Functions
Light-ON
Max. operating voltage
30.0 V
Connector
M12 (4-pin)
Datasheet (PDF)
Highlights & Details
Balluff BOS0089 Cubic light sensors with different light types up to 25 m range
- Dimensions 17 x 50 x 50 mm
- Series 26K
- PNP NO interface
- PNP NC
- Functional principle: Optoelectronic sensor
- Optical operating principle: Light switch, triangulation
Technical specifications
- Main features:Dimension 17 x 50 x 50 mm
- Active surface, material: PMMA
- Connection: Connector, M12x1 connector, 4-pin
- Series 26K
- Operating voltage Ub 10...30 VDC
- Functional principle: Optoelectronic sensor
- Optical operating principle: Light switch, triangulation
- ABS casing material
- LED red light
- Light spot size: Ø 8 mm with 200 mm
- Optical special feature: Background suppression
- Range 30...300 mm
- PNP NO interface
- PNP NC
- Additional features:
- Functional principle: Optoelectronic sensor
- Dimensions 17 x 50 x 50 mm
- Mounting: M4 screw
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Load capacity max. at Ue 1 µF
- Residual ripple max. (% of Ue): 10%
- Switching frequency 1000 Hz
- Protection class: II
- Connection: Connector, M12x1 connector, 4-|pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Hysteresis H max. (% of Sr): 5.0%
- Rated switching distance Sn: 300 mm
- MTTF (40 °C) 193 a
- Active surface, material: PMMA
- ABS casing material
- Clearance deviation 18 % max. (% of Sr): 8 % to 90 % Rem.
- Range 30...300 mm
- Adjustable interval (Sn)
- Series 26K
- Shape: Cube|connection can be rotated
- Display: Output function - LED yellow|ERROR - LED red|Switching distance - Digit display|Stability - LED green
- 2-speed potentiometer
- Shutdown delay toff max.: 0.5 ms
- ON delay max.: 0.5 ms
- Idle current IO max. at Ue 35 mA
- Voltage drop Ud max. at Ie 2.4 V
- Packaging type
Piece
- Product type
Optical sensor
- Type
BOS0089
- Functions
Light-ON
- Operating voltage
24
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 breaker
1 maker
- Outputs
PNP
- Switching frequency
1000 Hz
- Connector
M12 (4-pin)
- Enclosure material
Acrylonitrile butadiene styrene
- Transmitter type
LED red
300 mm
- Features
Incl. background suppression
IP67
- Min. temperature
-20 °C
- Max. temperature
60 °C
- Length
50.00 mm
- Width
17.00 mm
- Height
50.00 mm
- Dim
(L x W x H) 50.00 x 17.00 x 50.00 mm
- Content
1 pc(s)
- Nominal voltage
30.0 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417606 BALLUFF Optical sensor BOS0089 BOS0089 Light-ON 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417606 BALLUFF Optical sensor BOS0089 BOS0089 Light-ON 1 pc(s)
Description
Diffuse sensors with background suppression ensure reliable detection, regardless of surface, color and material. Their scanning method is almost constant even at various degrees of emission. Series=26K, dimension=17 x 50 x 50 mm, interface=PNP NO (PNP) PNP NC, operational principle=Optoelectronic sensor, operational principle optical=Light switch, Triangulation, Optical feature=Background suppression, light type=LED red light, light spot size=Ø 8 mm at 200 mm, range=30...300 mm, connection=connector, M12x1 connector, 4-pin, Housing material=ABS, Active surface, material=PMMA, operating voltage Ub=10...30 VDC, approval/conformity=cULusCEEACWEEE
This text is machine translated.
This text is machine translated.
Hints
For more information on this BOS0089, please refer to its datasheet under 'downloadable documents'
