Name: BALLUFF Optical sensor BOS008E BOS008E Light-ON 1 pc(s)
Brand: BALLUFF
SKU: 3417646

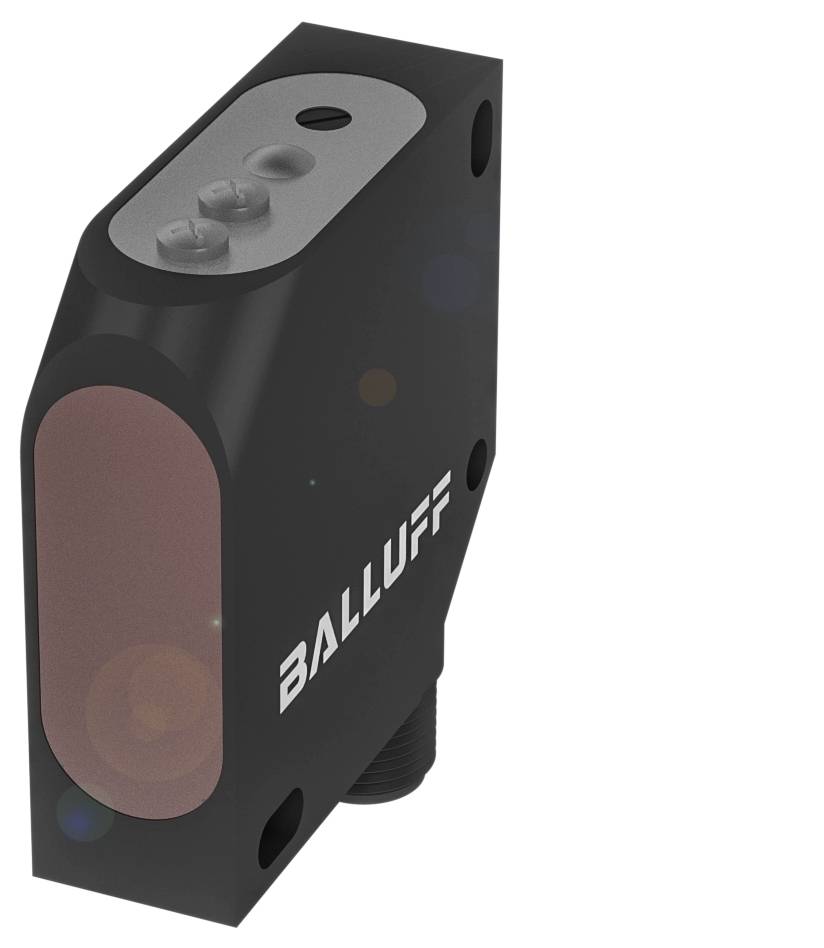

A black, rectangular sensor with a red front face and the inscription 'Balluff' on the side.

Image similar

Product type

Optical sensor

Functions

Light-ON

Max. operating voltage

30.0 V

Connector

M12 (4-pin)

Type

BOS008E

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

BALUFF BOS008E cubic light sensors with different light types up to 25 m range

Dimensions 17 x 50 x 50 mm
Series 26K
PNP NO interface
PNP NC
Functional principle: Optoelectronic sensor
Optical operating principle: Light switch, triangulation

Technical specifications

Main features:Dimension 17 x 50 x 50 mm
Active surface, material: PMMA
Connection: Connector, M12x1 connector, 4-pin
Series 26K
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical operating principle: Light switch, triangulation
ABS casing material
Light: Red laser light
Light spot size: Ø 0.1 mm in focus
Optical special feature: Background suppression
Range 30...150 mm
PNP NO interface
PNP NC
Beam characteristic: Focus typical at 80 mm
Additional features:
Functional principle: Optoelectronic sensor
Dimensions 17 x 50 x 50 mm
Mounting: M4 screw
Rated operating voltage Ue DC 24 V
Rated operating current Ie 200 mA
Rated insulation voltage UI 75 V DC
Operating voltage Ub 10...30 VDC
Usage category: DC-13
Residual ripple max. (% of Ue): 10%
Switching frequency 2500 Hz
Protection class: II
Connection: Connector, M12x1 connector, 4-|pin
Short-circuit protection: Yes
Reverse polarity protection: Yes
Rated switching distance Sn: 150 mm, adjustable
MTTF (40 °C) 188 a
Active surface, material: PMMA
ABS casing material
Clearance deviation 18 % max. (% of Sr): 8 % to 90 % Rem.
Adjustable interval (Sn)
Series 26K
Shape: Cube|connection can be rotated
Display: Output function - LED yellow|ERROR - LED red|Switching distance - Digit display|Stability - LED green
2-speed potentiometer
Shutdown delay toff max.: 0.2 ms
ON delay max.: 0.2 ms
Idle current IO max. at Ue 50 mA
Voltage drop Ud max. at Ie 2.5 V
Range for functional safety 30...150 mm

Product type: Optical sensor

Type: BOS008E

Functions: Light-ON

Operating voltage: 24

Min. operating voltage: 10.0 V

Max. operating voltage: 30.0 V

Operating voltage: 10.0 - 30.0 V

Contact type: 1 breaker
1 maker

Outputs: PNP

Switching frequency: 2500 Hz

Connector: M12 (4-pin)

Enclosure material: Acrylonitrile butadiene styrene

Transmitter type: Laser diode

: 150 mm

Features: Incl. background suppression

: IP67

Min. temperature: -20 °C

Max. temperature: 45 °C

Length: 50.00 mm

Width: 17.00 mm

Height: 50.00 mm

Depth: 50 m

Dim: (L x W x H) 50.00 x 17.00 x 50.00 mm

Content: 1 pc(s)

Nominal voltage: 30.0 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3417646 BALLUFF Optical sensor BOS008E BOS008E Light-ON 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3417646 BALLUFF Optical sensor BOS008E BOS008E Light-ON 1 pc(s)

Description

Diffuse sensors with background suppression ensure reliable detection, regardless of surface, color and material. Their scanning method is almost constant even at various degrees of emission. Series=26K, dimension=17 x 50 x 50 mm, interface=PNP NO (PNP) PNP NC, operational principle=Optoelectronic sensor, operational principle optical=Light switch, Triangulation, Optical feature=Background suppression, Beam characteristic=focus typically at 80 mm, light type=laser red light, light spot size=Ø 0.1 mm in focus, range=30...150 mm, connection=connector, M12x1 connector, 4-pin, Housing material=ABS, Active surface, material=PMMA, operating voltage Ub=10...30 VDC, approval/conformity=cULusCEEACWEEE
