Name: BALLUFF Optical sensor BOS008L BOS008L Dark-ON 1 pc(s)
Brand: BALLUFF
SKU: 3416733

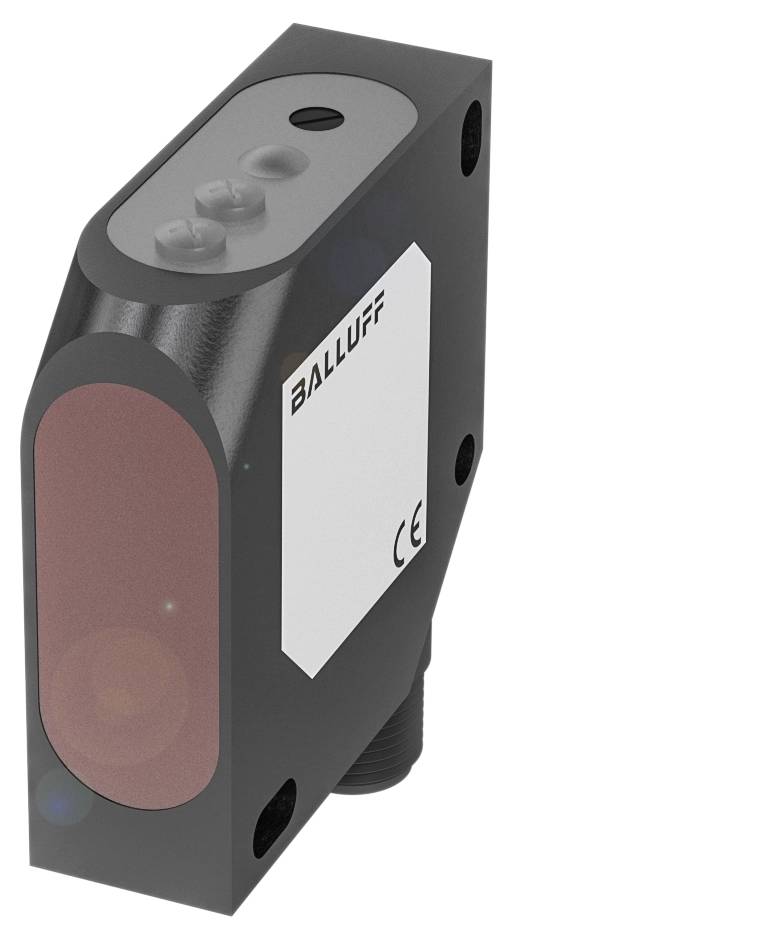

Industrial sensor with rectangular housing, a large red lens element and a sticker with CE marking on the side.

Image similar

Packaging type

Piece

Product type

Optical sensor

Functions

Dark-ON

Max. operating voltage

30.0 V

Connector

M12 (4-pin)

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BOS008L Cubic one way light barriers with different types of light up to 25 m range

Dimensions 17 x 50 x 50 mm
Series 26K
PNP NO interface
PNP NC
Functional principle: Optoelectronic sensor
Optical operating principle: Reflection light barrier

Technical specifications

Main features:Dimension 17 x 50 x 50 mm
Active surface, material: PMMA
Connection: Connector, M12x1 connector, 4-pin
Series 26K
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical operating principle: Reflection light barrier
ABS casing material
Light: Red laser light
Light spot size: Ø 20 mm at 20 m.
Optical special feature: Coaxial optics
Range 0 - 25 m
PNP NO interface
PNP NC
Beam characteristic: Collimated
Additional features:
Functional principle: Optoelectronic sensor
Dimensions 17 x 50 x 50 mm
Mounting: M4 screw
Rated operating voltage Ue DC 24 V
Rated operating current Ie 200 mA
Rated insulation voltage UI 75 V DC
Operating voltage Ub 10...30 VDC
Usage category: DC-13
Residual ripple max. (% of Ue): 10%
Switching frequency 2500 Hz
Protection class: II
Connection: Connector, M12x1 connector, 4-|pin
Short-circuit protection: Yes
Reverse polarity protection: Yes
Rated switching distance Sn: 25 m, adjustable
MTTF (40 °C) 20 a
Active surface, material: PMMA
ABS casing material
Range 0 - 25 m
Setting option: Sensitivity (Sn)
Series 26K
Shape: Cube|connection can be rotated
Display: Output function - LED yellow|ERROR - LED red|Switching distance - Digit display|Stability - LED green
Potentiometer 270°
Shutdown delay toff max.: 0.2 ms
ON delay max.: 0.2 ms
Idle current IO max. at Ue 40 mA
Voltage drop Ud max. at Ie 2.4 V
Reference reflector BOS R-22

Packaging type: Piece

Product type: Optical sensor

Type: BOS008L

Functions: Dark-ON

Operating voltage: 24

Min. operating voltage: 10.0 V

Max. operating voltage: 30.0 V

Operating voltage: 10.0 - 30.0 V

Contact type: 1 breaker
1 maker

Outputs: PNP

Switching frequency: 2500 Hz

Connector: M12 (4-pin)

Enclosure material: Acrylonitrile butadiene styrene

Transmitter type: SC laser red

: 25 m

: IP67

Min. temperature: -20 °C

Max. temperature: 45 °C

Length: 50.00 mm

Width: 17.00 mm

Height: 50.00 mm

Depth: 50 m

Dim: (L x W x H) 50.00 x 17.00 x 50.00 mm

Content: 1 pc(s)

Nominal voltage: 30.0 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416733 BALLUFF Optical sensor BOS008L BOS008L Dark-ON 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3416733 BALLUFF Optical sensor BOS008L BOS008L Dark-ON 1 pc(s)

Description

Thanks to generous assembly tolerances, our reflection light barrier is particularly easy to align. You only install an electric device plus a reflector. Large reflectors guarantee high ranges. The light barriers detect objects regardless of surface, color and material. A polar filter makes them suitable for detecting shiny objects. Series=26K, dimension=17 x 50 x 50 mm, interface=PNP NO (PNP) PNP NC, operational principle=Optoelectronic sensor, operational principle optical=reflective light barrier, optical feature=coaxial optics, beam characteristic=collimated, light type=laser red light, light spot size=Ø 20 mm at 20 m, range=0...25 m, connection=connector, M12x1 connector, 4-pin, Housing material=ABS, Active surface, material=PMMA, operating voltage Ub=10...30 VDC, approval/conformity=cULusCEEACWEEE
