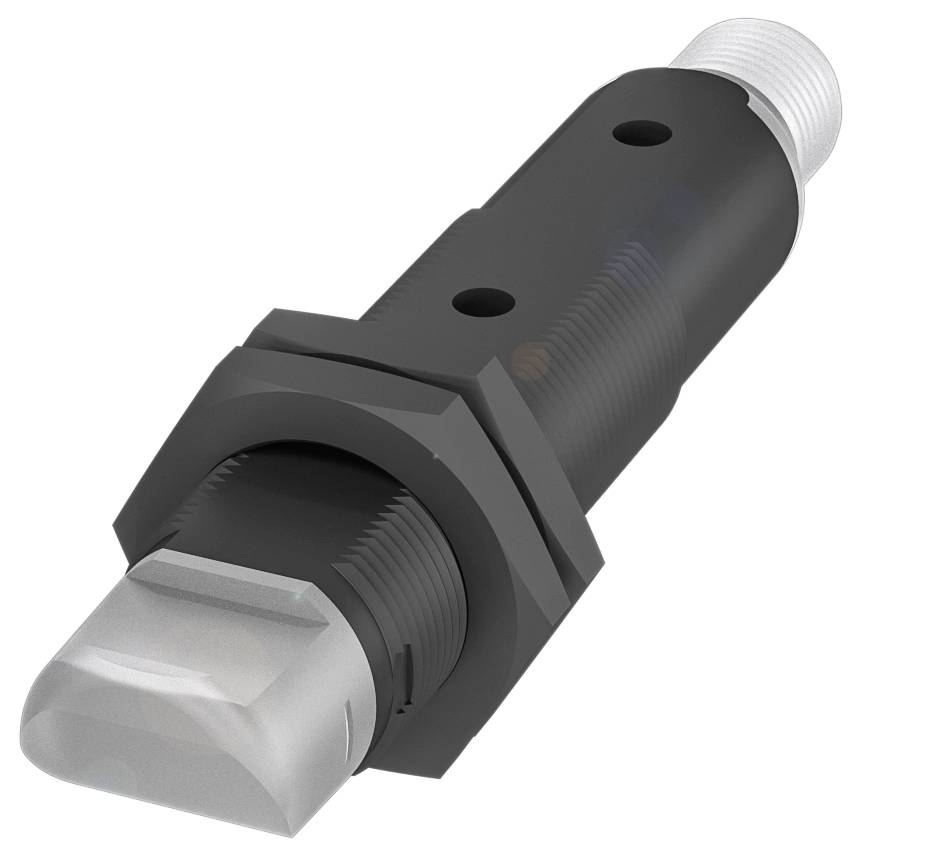

Image similar
BALLUFF Optical sensor BOS00CP BOS00CP Receiver Dark-ON 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Optical sensor
Functions
Dark-ON
Max. operating voltage
30.0 V
Connector
M12 (4-pin)
Datasheet (PDF)
Highlights & Details
Balluff BOS00CP Cylindrical One-way Light Barriers with M18 thread and different types of light
- Dimensions: Ø 18 x 93.5 mm
- 18KW series
- NPN no (NO) interface
- NPN NC
- Functional principle: Optoelectronic sensor
- Optical function principle: One-way light barrier (receiver)
Technical specifications
- Main features:Dimensions: Ø 18 x 93.5 mm
- Active surface, material: PMMA
- Connection: Connector, M12x1 connector, 4-pin
- 18KW series
- Operating voltage Ub 10...30 VDC
- Functional principle: Optoelectronic sensor
- Optical function principle: One-way light barrier (receiver)
- PBT casing material
- Type of light: Infrared
- Brand: Global
- Range 0 - 15 m
- NPN no (NO) interface
- NPN NC
- Additional features:
- Functional principle: Optoelectronic sensor
- Dimensions: Ø 18 x 93.5 mm
- Attachment: Nut M18x1
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 10...30 VDC
- Residual ripple max. (% of Ue): 8%
- Switching frequency 250 Hz
- Connection: Connector, M12x1 connector, 4-|pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Rated switching distance Sn: 15 m, adjustable
- Active surface, material: PMMA
- Switch output: NPN NO contact (NO)|NPN NC contact (NC) Pins 4-2
- PBT casing material
- Tightening torque max. 1.5 Nm
- Setting option: Sensitivity (Sn)
- Brand: Global
- 18KW series
- Shape: Cylinder flat|optics 90°
- Display: Output function - LED yellow|stability - LED green
- Potentiometer 270°
- Shutdown delay toff max.: 1.67 ms
- ON delay max.: 1.67 ms
- Idle current IO max. at Ue 30 mA
- Voltage drop Ud max. at Ie 2 V
- External light max. 5000 Lux
- Optical function principle: One-way light barrier (receiver)
- Type of light: Infrared
- Optical switching function: Light switching|dark switching
- MTTF (40 °C) Material 855 a
- REFERENCE TRANSMITTER: BLS 18KW-XX-1P-.
- Range for functional safety 0...15 m.
- Packaging type
Single
- Product type
Optical sensor
- Type
BOS00CP
- Model
Receiver
- Functions
Dark-ON
- Operating voltage
24
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 breaker
1 maker
- Outputs
NPN
- Switching frequency
250 Hz
- Connector
M12 (4-pin)
- Size
M18
- Enclosure material
PBT
- Transmitter type
LED IR
15 m
IP67
- Min. temperature
-25 °C
- Max. temperature
55 °C
- Length
93.50 mm
- Height
14.00 mm
- Content
1 pc(s)
- Nominal voltage
30.0 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417435 BALLUFF Optical sensor BOS00CP BOS00CP Receiver Dark-ON 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417435 BALLUFF Optical sensor BOS00CP BOS00CP Receiver Dark-ON 1 pc(s)
Description
With their excellent repeatability, our single-use light barriers are Ideal for positioning tasks. They recognize objects regardless of surface, color, and material. The transmitter and receiver are housed in separate enclosures. High ranges are not a problem for the light barriers. They have a large functional reserve and are very resistant to contamination. Optoelectronic sensor, connector type = connector, switching output = NPN NO (NO);NPN NC contact (NC) pins 4-2, range max. = 15 m
This text is machine translated.
This text is machine translated.
Hints
For more information on this BOS00CP, please refer to its datasheet under 'downloadable documents'
