Name: BALLUFF Optical sensor BOS00CT BOS00CT Receiver Dark-ON 1 pc(s)
Brand: BALLUFF
SKU: 3417462

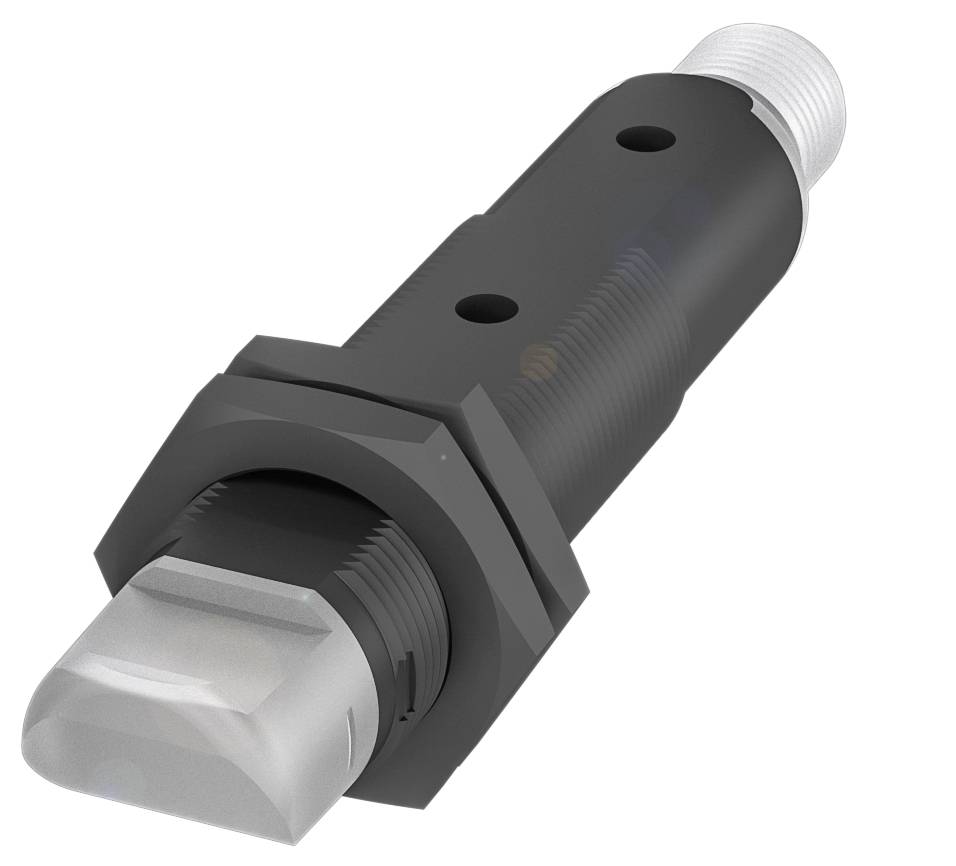

A cylindrical sensor with large threading and a rectangular, flat head. The sensor is predominantly black and made of plastic.

Image similar

Product type

Optical sensor

Functions

Dark-ON

Max. operating voltage

30.0 V

Connector

M12 (4-pin)

Type

BOS00CT

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BOS00CT Cylindrical One-way Light Barriers with M18 thread and different types of light

Dimensions: Ø 18 x 93.5 mm
18KW series
PNP NO interface
PNP NC
Functional principle: Optoelectronic sensor
Optical function principle: One-way light barrier (receiver)

Technical specifications

Main features:Dimensions: Ø 18 x 93.5 mm
Active surface, material: PMMA
Connection: Connector, M12x1 connector, 4-pin
18KW series
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical function principle: One-way light barrier (receiver)
PBT casing material
Light: Red laser light
Brand: Global
Range 0 - 50 m
PNP NO interface
PNP NC
Additional features:
Functional principle: Optoelectronic sensor
Dimensions: Ø 18 x 93.5 mm
Attachment: Nut M18x1
Rated operating voltage Ue DC 24 V
Rated operating current Ie 100 mA
Rated insulation voltage UI 75 V DC
Operating voltage Ub 10...30 VDC
Usage category: DC-13
Residual ripple max. (% of Ue): 8%
Switching frequency 1500 Hz
Connection: Connector, M12x1 connector, 4-|pin
Short-circuit protection: Yes
Reverse polarity protection: Yes
Rated switching distance Sn: 50 m, adjustable
Active surface, material: PMMA
Housing material Mechanical characteristics: PBT
Range 0 - 50 m
Tightening torque max. 1.5 Nm
Setting option: Sensitivity (Sn)
Brand: Global
18KW series
Shape: Cylinder flat|optics 90°
Display: Output function - yellow LED
Potentiometer 270°
Shutdown delay toff max.: 0.33 ms
ON delay max.: 0.33 ms
Idle current IO max. at Ue 30 mA
Voltage drop Ud max. at Ie 2 V
MTTF (40 °C) Material 875 a
REFERENCE TRANSMITTER: BLS 18KW-XX-1LT-.

Product type: Optical sensor

Type: BOS00CT

Model: Receiver

Functions: Dark-ON

Operating voltage: 24

Min. operating voltage: 10.0 V

Max. operating voltage: 30.0 V

Operating voltage: 10.0 - 30.0 V

Contact type: 1 breaker
1 maker

Outputs: PNP

Switching frequency: 1500 Hz

Connector: M12 (4-pin)

Size: M18

Enclosure material: PBT

Transmitter type: Laser diode

: 50 m

: IP67

Min. temperature: -10 °C

Max. temperature: 50 °C

Length: 93.50 mm

Height: 14.00 mm

Content: 1 pc(s)

Nominal voltage: 30.0 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3417462 BALLUFF Optical sensor BOS00CT BOS00CT Receiver Dark-ON 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3417462 BALLUFF Optical sensor BOS00CT BOS00CT Receiver Dark-ON 1 pc(s)

Description

With their excellent repeatability, our single-use light barriers are Ideal for positioning tasks. They recognize objects regardless of surface, color, and material. The transmitter and receiver are housed in separate enclosures. High ranges are not a problem for the light barriers. They have a large functional reserve and are very resistant to contamination. Optoelectronic sensor, connector type = connector, switching output = PNP NO contact (PNP); PNP NC contact (pins 4-2, range max. = 50 m
