Image similar
BALLUFF Optical sensor BOS00JW BOS00JW Light-ON 1 pc(s)
Product type
Optical sensor
Functions
Light-ON
Max. operating voltage
30.0 V
Connector
M12 (4-pin)
Type
BOS00JW
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

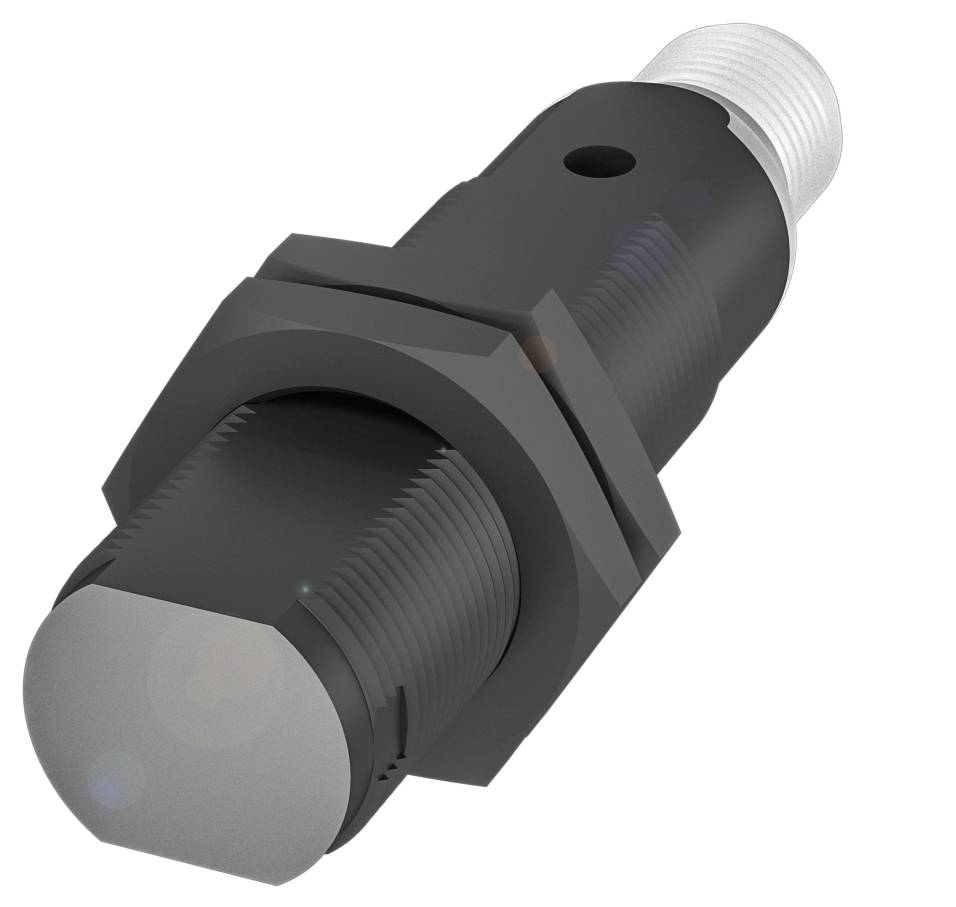

BALLUFF BOS00JW Cylindrical light sensor with M18 thread and different types of light
- Dimensions: Ø 18 x 71.5 mm
- Series: 18KF
- PNP NO interface
- PNP NC
- Functional principle: Optoelectronic sensor
- Optical operating principle: Light switch, triangulation
Technical specifications
- Main features:Dimensions: Ø 18 x 71.5 mm
- Active surface, material: PMMA
- Connection: Connector, M12x1 connector, 4-pin
- Series: 18KF
- Operating voltage Ub 10...30 VDC
- Functional principle: Optoelectronic sensor
- Optical operating principle: Light switch, triangulation
- PBT casing material
- LED red light
- Light spot size: Ø 20 mm with 100 mm
- Brand: Global
- Optical special feature: Fixed background suppression
- Range 5...100 mm
- PNP NO interface
- PNP NC
- Beam characteristic: Focused
- Additional features:
- Functional principle: Optoelectronic sensor
- Dimensions: Ø 18 x 71.5 mm
- Attachment: Nut M18x1|screw M3
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 10...30 VDC
- Residual ripple max. (% of Ue): 8%
- Switching frequency 1000 Hz
- Connection: Connector, M12x1 connector, 4-|pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Rated switching distance Sn: 100 mm
- MTTF (40 °C) 838 a
- Active surface, material: PMMA
- PBT casing material
- Range 5...100 mm
- Tightening torque max. 1.5 Nm
- Brand: Global
- Series: 18KF
- Shape: Cylinder flat|Straight optics
- Display: Output function - yellow LED
- Adjuster: No
- Shutdown delay toff max.: 0.5 ms
- ON delay max.: 0.5 ms
- Idle current IO max. at Ue 35 mA
- Voltage drop Ud max. at Ie 2 V
- Product type
Optical sensor
- Type
BOS00JW
- Functions
Light-ON
- Operating voltage
24
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 breaker
1 maker
- Outputs
PNP
- Switching frequency
1000 Hz
- Connector
M12 (4-pin)
- Size
M18
- Enclosure material
PBT
- Transmitter type
LED red
100 mm
- Features
Incl. background suppression
IP67
- Min. temperature
-25 °C
- Max. temperature
55 °C
- Length
71.50 mm
- Height
14.00 mm
- Depth
71.5 m
- (Ø)
18 mm
- Dim
(Ø x H) 18 mm x 14.00 mm
- Content
1 pc(s)
- Nominal voltage
30.0 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417624 BALLUFF Optical sensor BOS00JW BOS00JW Light-ON 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417624 BALLUFF Optical sensor BOS00JW BOS00JW Light-ON 1 pc(s)
Description
Diffuse sensors with background suppression ensure reliable detection, regardless of surface, color and material. Their scanning method is almost constant even at various degrees of emission. Optoelectronic sensor, fixed background suppression, light transmitter = LED, connection type = connector, switching output = PNP NO (PNP); PNP NC (pins 4-2, range max. = 100 mm
This text is machine translated.
This text is machine translated.
Hints
For more information on this BOS00JW, please refer to its datasheet under 'downloadable documents'
