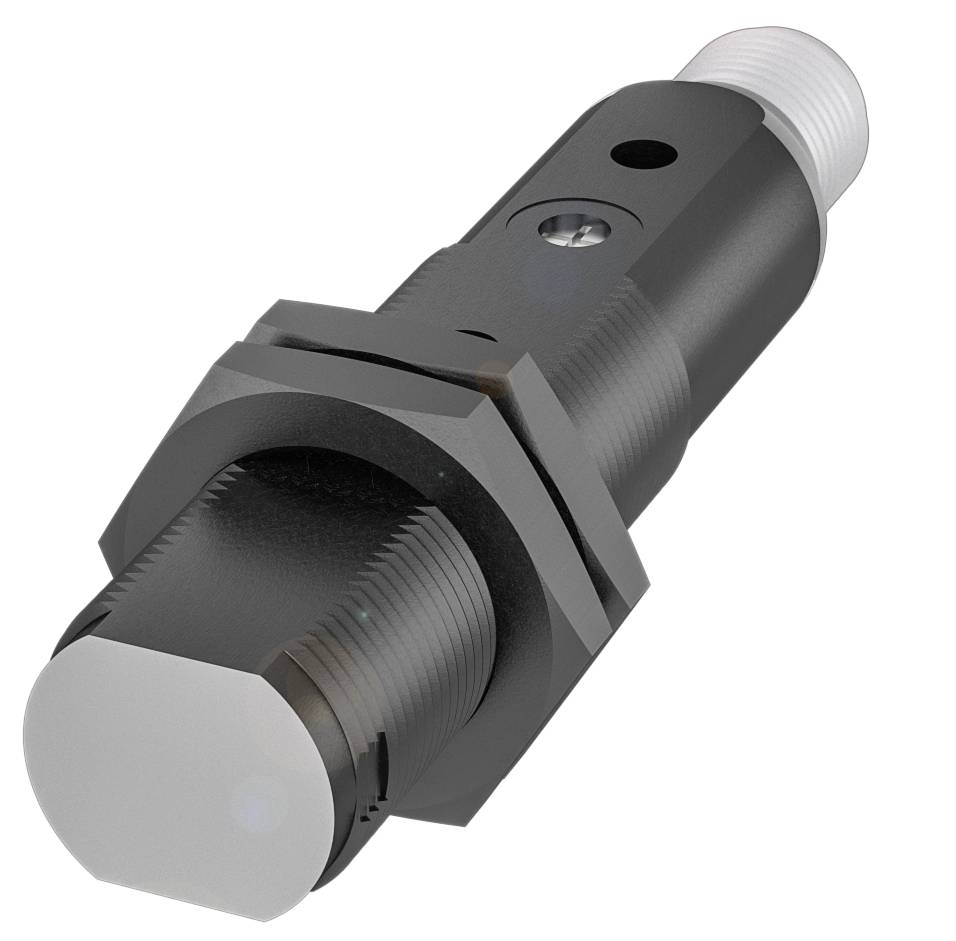

BALLUFF Optical sensor BOS00K1 BOS00K1 Light-ON 1 pc(s)
Packaging type
Piece
Product type
Optical sensor
Functions
Light-ON
Max. operating voltage
30.0 V
Connector
M12 (4-pin)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BOS00K1 Cylindrical Light Switch with M18 thread and different types of light
- Dimensions: Ø 18 x 81.5 mm
- Series: 18KF
- PNP NO interface
- PNP NC
- Functional principle: Optoelectronic sensor
- Optical functional principle: Light switch, energetic
Technical specifications
- Main features:Dimensions: Ø 18 x 81.5 mm
- Active surface, material: PMMA
- Connection: Connector, M12x1 connector, 4-pin
- Series: 18KF
- Operating voltage Ub 10...30 VDC
- Functional principle: Optoelectronic sensor
- Optical functional principle: Light switch, energetic
- PBT casing material
- LED infrared light
- Light spot size: Ø 200 mm with 600 mm
- Brand: Global
- Range 0...700 mm
- PNP NO interface
- PNP NC
- Beam characteristics: Varied
- Additional features:
- Functional principle: Optoelectronic sensor
- Dimensions: Ø 18 x 81.5 mm
- Attachment: Screw M3|nut M18x1
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 10...30 VDC
- Residual ripple max. (% of Ue): 8%
- Switching frequency 1000 Hz
- Connection: Connector, M12x1 connector, 4-|pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Rated switching distance Sn: 700 mm, adjustable
- MTTF (40 °C) 774 a
- Active surface, material: PMMA
- PBT casing material
- Range 0...700 mm
- Tightening torque max. 1.5 Nm
- Adjustable interval (Sn)
- Brand: Global
- Series: 18KF
- Shape: Cylinder flat|Straight optics
- Display: Output function - LED yellow|stability - LED green
- Potentiometer 270°
- Shutdown delay toff max.: 0.5 ms
- ON delay max.: 0.5 ms
- Idle current IO max. at Ue 35 mA
- Voltage drop Ud max. at Ie 2 V
- Packaging type
Piece
- Product type
Optical sensor
- Type
BOS00K1
- Functions
Light-ON
- Operating voltage
24
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 breaker
1 maker
- Outputs
PNP
- Switching frequency
1000 Hz
- Connector
M12 (4-pin)
- Size
M18
- Enclosure material
PBT
- Transmitter type
LED IR
700 mm
IP67
- Min. temperature
-25 °C
- Max. temperature
55 °C
- Length
81.50 mm
- Height
14.00 mm
- Content
1 pc(s)
- Nominal voltage
30.0 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418103 BALLUFF Optical sensor BOS00K1 BOS00K1 Light-ON 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418103 BALLUFF Optical sensor BOS00K1 BOS00K1 Light-ON 1 pc(s)
Description
Energetic light sensors are Ideal for detecting contrast differences. You can detect objects depending on the surface, color and material.They are cost-effective, easy to mount and align. Series=18KF, dimension=Ø 18 x 81.5 mm, interface=PNP NO (PNP) PNP NC, operational principle=Optoelectronic Sensor, optical operational principle=Light switch, energetic, beam characteristic=diverse, light type=LED infrared, light spot size=Ø 200 mm at 600 mm, range=0...700 mm, connection=connector, M12x1 connector, 4-pin, Housing material=PBT, Active surface, material=PMMA, operating voltage Ub=10...30 VDC, approval/conformity=CecULusEACWEEE
This text is machine translated.
This text is machine translated.
Hints
For more information on this BOS00K1, please refer to its datasheet under 'downloadable documents'
