Name: BALLUFF Optical sensor BOS00LR BOS00LR Light-ON 1 pc(s)
Brand: BALLUFF
SKU: 3418710

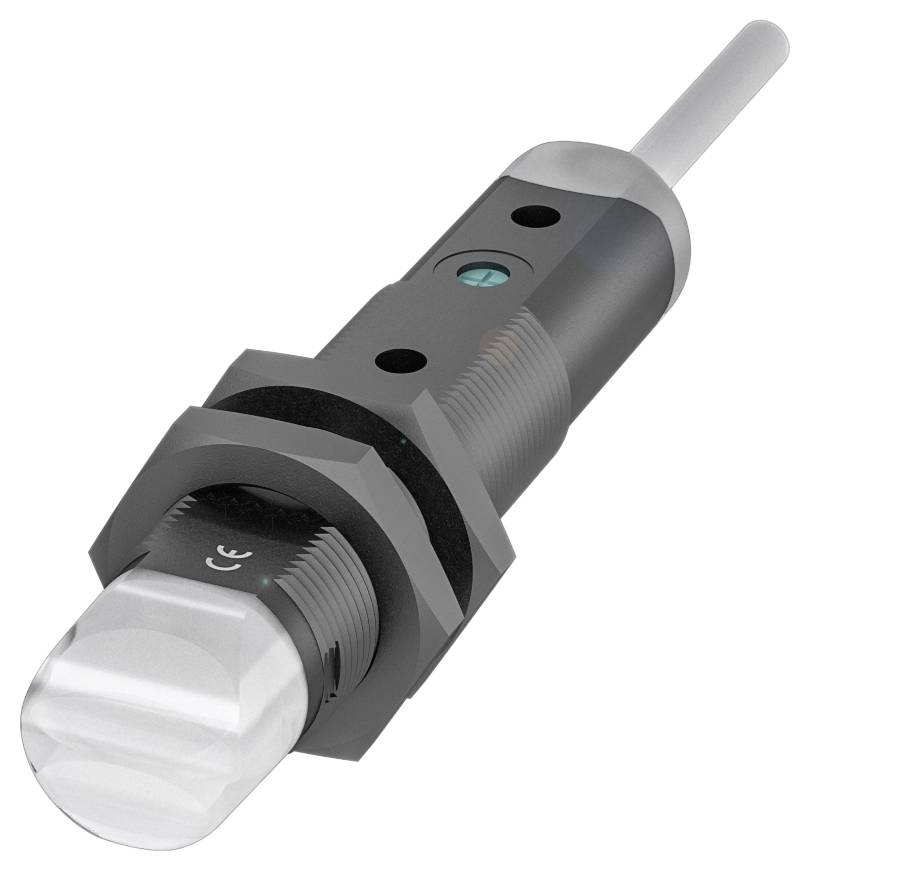

A cylindrical sensor with metal housing and transparent head, cable at the end. Used for object detection in industrial applications.

Image similar

Product type

Optical sensor

Functions

Light-ON

Max. operating voltage

30.0 V

Connector

Cable, open end

Type

BOS00LR

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

BALLUFF BOS00LR Cylindrical Light Switch with M18 thread and different types of light

Dimensions: Ø 18 x 89 mm
18KW series
PNP NO interface
PNP NC
Functional principle: Optoelectronic sensor
Optical functional principle: Light switch, energetic

Technical specifications

Main features:Dimensions: Ø 18 x 89 mm
Active surface, material: PMMA
Connection: Cable, 2.00 m, PVC
18KW series
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical functional principle: Light switch, energetic
PBT casing material
LED infrared light
Brand: Global
Range 0...400 mm
PNP NO interface
PNP NC
Beam characteristics: Varied
Additional features:
Functional principle: Optoelectronic sensor
Dimensions: Ø 18 x 89 mm
Attachment: Screw M3|nut M18x1
Rated operating voltage Ue DC 24 V
Rated operating current Ie 100 mA
Rated insulation voltage UI 75 V DC
Operating voltage Ub 10...30 VDC
Residual ripple max. (% of Ue): 8%
Switching frequency 1000 Hz
Connection: Cable, 2.00 m, PVC
Short-circuit protection: Yes
Reverse polarity protection: Yes
Rated switching distance Sn: 400 mm, adjustable
MTTF (40 °C) 774 a
Active surface, material: PMMA
Switching output: PNP NO
Cable diameter D 4.00 mm
Cable length 2 m
PBT casing material
Jacket material PVC
EN 60068-2-27, shock: Half-sine, 30 gn, 11 ms, 3x6
EN 60068-2-6, Vibration: 10…55 Hz, Amplitude: 0.5 mm,|3x30 min.
Protection class IP67
Ambient temperature: -25 to 55 °C
Number of conductors: 4
Conductor cross-section: 0.14 mm²
Range 0...400 mm
Tightening torque max. 1.5 Nm
Adjustable interval (Sn)
Brand: Global
18KW series
Shape: Cylinder flat|optics 90°
Display: Output function - LED yellow|stability - LED green
Potentiometer 270°
Shutdown delay toff max.: 0.5 ms
ON delay max.: 0.5 ms
Idle current IO max. at Ue 35 mA
Voltage drop Ud max. at Ie 2 V
External light max. 5000 Lux
Optical functional principle: Light switch, energetic
LED infrared light
Optical switching function: Light switching
Beam characteristics: Varied
Wavelength 880 nm

Product type: Optical sensor

Type: BOS00LR

Functions: Light-ON

Operating voltage: 24

Min. operating voltage: 10.0 V

Max. operating voltage: 30.0 V

Operating voltage: 10.0 - 30.0 V

Contact type: 1 breaker
1 maker

Outputs: PNP

Switching frequency: 1000 Hz

Connector: Cable, open end

Cable length: 2.00 m

Size: M18

Enclosure material: PBT

Transmitter type: LED IR

Wavelength: 880 nm

: 400 mm

: IP67

Min. temperature: -25 °C

Max. temperature: 55 °C

Length: 89.00 mm

Height: 14.00 mm

(Ø): 18 mm

Dim: (Ø x H) 18 mm x 14.00 mm

Content: 1 pc(s)

Nominal voltage: 30.0 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3418710 BALLUFF Optical sensor BOS00LR BOS00LR Light-ON 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3418710 BALLUFF Optical sensor BOS00LR BOS00LR Light-ON 1 pc(s)

Description

Energetic light sensors are Ideal for detecting contrast differences. You can detect objects depending on the surface, color and material.They are cost-effective, easy to mount and align. Optoelectronic sensor, light transmitter = LED, connector type = cable, switching output = PNP NO (PNP); PNP NC (pins 4-2, range max. = 400 mm
