Name: BALLUFF Optical sensor BOS00TL BOS00TL Dark-ON 1 pc(s)
Brand: BALLUFF
SKU: 3416678

Image similar

Product type

Optical sensor

Functions

Dark-ON

Max. operating voltage

30.0 V

Connector

M12 (4-pin)

Type

BOS00TL

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

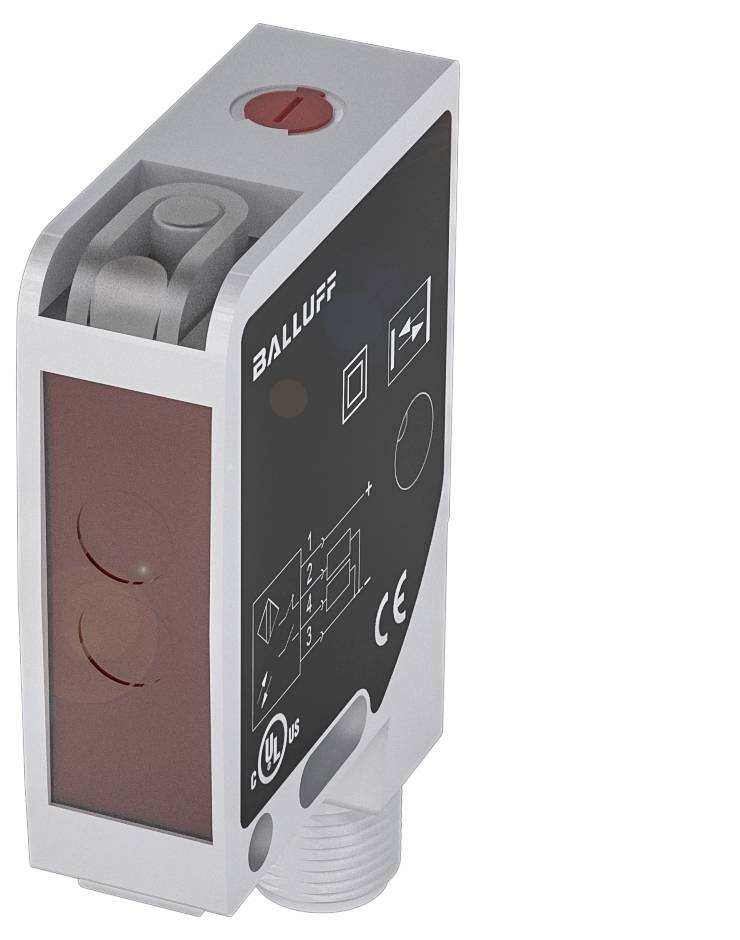

Balluff BOS00TL Cubic reflective light barriers with different types of light

Dimensions 15 x 50 x 42.5 mm
Series 21M
PNP NO interface
PNP NC
Functional principle: Optoelectronic sensor
Optical operating principle: Reflection light barrier

Technical specifications

Main features:Dimension 15 x 50 x 42.5 mm
Active surface, material: PMMA
Connection: Connector, M12x1 connector, 4-pin
Series 21M
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical operating principle: Reflection light barrier
Housing material: Zinc, die-cast, powder-coated
Aluminium
Light: Red laser light
Range 0 - 20 m
PNP NO interface
PNP NC
Beam characteristic: Collimated
Additional features:
Functional principle: Optoelectronic sensor
Dimensions 15 x 50 x 42.5 mm
Mounting: M4 screw
Rated operating voltage Ue DC 24 V
Rated operating current Ie 100 mA
Rated insulation voltage UI 75 V DC
Standby delay TV max.: 200 ms
Operating voltage Ub 10...30 VDC
Usage category: DC-13
Load capacity max. at Ue 1 µF
Residual current l max. 10 µA
Residual ripple max. (% of Ue): 8%
Switching frequency 2000 Hz
Protection class: II
Connection: Connector, M12x1 connector, 4-|pin
Short-circuit protection: Yes
Reverse polarity protection: Yes
Rated switching distance Sn: 20 m, adjustable
MTTF (40 °C) 308 a
Active surface, material: PMMA
Housing material: Zinc, die casting,|powder coated|Aluminium
Range 0 - 20 m
Setting option: Sensitivity (Sn)
Contacts, surface protection: Gold-plated
Surface protection: Powder-coated
Series 21M
Shape: Cube|connection can be rotated
Display: Output function - LED yellow|LED green: Operating voltage
Potentiometer 270°
Shutdown delay toff max.: 0.25 ms
ON delay max.: 0.25 ms
Idle current IO max. at Ue 35 mA
Voltage drop Ud max. at Ie 2 V
Exchange option protected Recording range/Measuring range: Yes

Product type: Optical sensor

Type: BOS00TL

Functions: Dark-ON

Operating voltage: 24

Min. operating voltage: 10.0 V

Max. operating voltage: 30.0 V

Operating voltage: 10.0 - 30.0 V

Contact type: 1 breaker
1 maker

Outputs: PNP

Switching frequency: 2000 Hz

Connector: M12 (4-pin)

Enclosure material: Zinc

Material properties: powder-coated

Transmitter type: SC laser red

: 20 m

: IP67

Min. temperature: -10 °C

Max. temperature: 50 °C

Length: 42.50 mm

Width: 15.00 mm

Height: 50.00 mm

Depth: 42.5 m

Dim: (L x W x H) 42.50 x 15.00 x 50.00 mm

Content: 1 pc(s)

Nominal voltage: 30.0 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416678 BALLUFF Optical sensor BOS00TL BOS00TL Dark-ON 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3416678 BALLUFF Optical sensor BOS00TL BOS00TL Dark-ON 1 pc(s)

Description

Thanks to generous assembly tolerances, our reflection light barrier is particularly easy to align. You only install an electric device plus a reflector. Large reflectors guarantee high ranges. The light barriers detect objects regardless of surface, color and material. A polar filter makes them suitable for detecting shiny objects. Series=21M, dimension=15 x 50 x 42.5 mm, interface=PNP NO (PNP) PNP NC, operational principle=Optoelectronic Sensor, operational principle optical=reflective light barrier, beam characteristic=collimated, light type=laser red light, Range=0...20 m, connection=plug connector, M12x1 plug, 4-pin, housing material=zinc, Die-cast aluminum, active surface, material=PMMA, operating voltage Ub=10...30 VDC, certification/conformity=CecULusWEEE

This text is machine translated.
