Name: BALLUFF Optical sensor BOS00WF BOS00WF Receiver Dark-ON 1 pc(s)
Brand: BALLUFF
SKU: 3417522

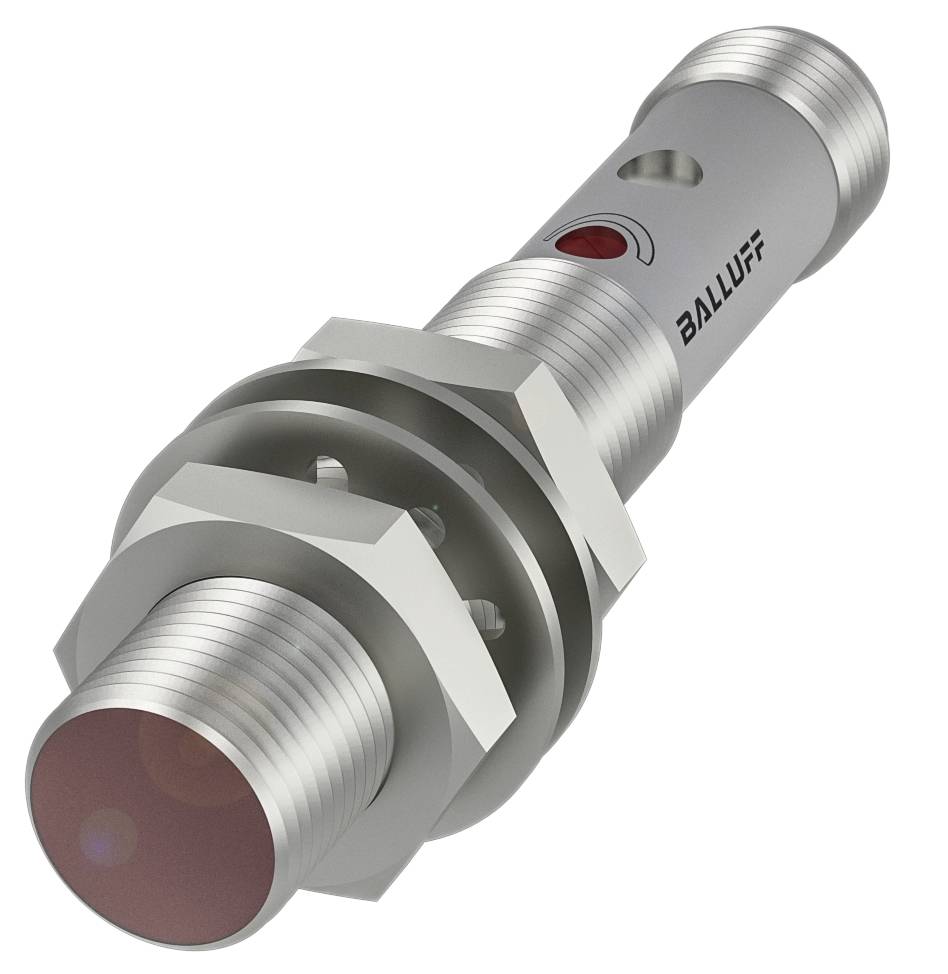

A cylindrical Balluff sensor with threading and red indicator, used in industrial applications for object detection.

Image similar

Packaging type

Piece

Product type

Optical sensor

Functions

Dark-ON

Max. operating voltage

30.0 V

Connector

M12 (4-pin)

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

BALLUFF BOS00WF Cylindrical Single-way Light Barriers with M12 thread and different types of light

Dimensions: Ø 12 x 70 mm
Series 12M
PNP NO interface
PNP NC
Functional principle: Optoelectronic sensor
Optical function principle: One-way light barrier (receiver)

Technical specifications

Main features:Dimensions: Ø 12 x 70 mm
Active surface, material: PMMA
Connection: Connector, M12x1 connector, 4-pin
Series 12M
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical function principle: One-way light barrier (receiver)
Housing material: Nickel-plated brass
Light: Red laser light
Range 0 - 30 m
PNP NO interface
PNP NC
Additional features:
Functional principle: Optoelectronic sensor
Dimensions: Ø 12 x 70 mm
Attachment: Nut M12x1
Rated operating voltage Ue DC 24 V
Rated operating current Ie 200 mA
Rated insulation voltage UI 75 V DC
Standby delay TV max.: 20 ms
Operating voltage Ub 10...30 VDC
Usage category: DC-13
Load capacity max. at Ue 0.1 µF
Residual ripple max. (% of Ue): 10%
Switching frequency 1000 Hz
Connection: Connector, M12x1 connector, 4-|pin
Short-circuit protection: Yes
Reverse polarity protection: Yes
Exchange possibility protected: Yes
Rated switching distance Sn: 3 m, adjustable|depending on transmitter
Temperature drift max. (% of Sr): Compensated
MTTF (40 °C) 251 a
Active surface, material: PMMA
Housing material: Nickel-plated brass
Range 0 - 30 m
Tightening torque max. 15 Nm
Setting option: Sensitivity (Sn)
Contacts, surface protection: Gold-plated
Surface protection: Nickel-plated
Series 12M
Shape: Cylinder|straight lens
Display: Output function - yellow LED
Potentiometer 270°
Shutdown delay toff max.: 0.5 ms
ON delay max.: 0.5 ms
Idle current IO max. at Ue 15 mA
REFERENCE TRANSMITTER: BOS 12M-XT-LS12-.
Voltage drop and max. at Ie Electrical connection: 2.5 V
Smallest slit type: 0.5mm at 3M, R0= 6m (LS12)

Packaging type: Piece

Product type: Optical sensor

Type: BOS00WF

Model: Receiver

Functions: Dark-ON

Operating voltage: 24

Min. operating voltage: 10.0 V

Max. operating voltage: 30.0 V

Operating voltage: 10.0 - 30.0 V

Contact type: 1 breaker
1 maker

Outputs: PNP

Switching frequency: 1000 Hz

Connector: M12 (4-pin)

Size: M12

Enclosure material: Brass

Material properties: nickel plated

: 30 m

: IP67

Min. temperature: -10 °C

Max. temperature: 50 °C

Length: 70.00 mm

Depth: 70 mm

(Ø): 12 mm

Dim: (Ø x L) 12 mm x 70.00 mm

Content: 1 pc(s)

Nominal voltage: 30.0 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3417522 BALLUFF Optical sensor BOS00WF BOS00WF Receiver Dark-ON 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3417522 BALLUFF Optical sensor BOS00WF BOS00WF Receiver Dark-ON 1 pc(s)

Description

With their excellent repeatability, our single-use light barriers are Ideal for positioning tasks. They recognize objects regardless of surface, color, and material. The transmitter and receiver are housed in separate enclosures. High ranges are not a problem for the light barriers. They have a large functional reserve and are very resistant to contamination. Series=12M, dimension=Ø 12 x 70 mm, interface=PNP NO (PNP) PNP NC, operational principle=Optoelectronic sensor, operational principle optical=One-way light barrier (receiver), light type=Laser Red light, range=0...30 m, connection=connector M12x1 connector, 4-pin, housing material=brass, active surface, Material=PMMA, operating voltage Ub=10...30 VDC, approval/conformity=CecULusWEEE
