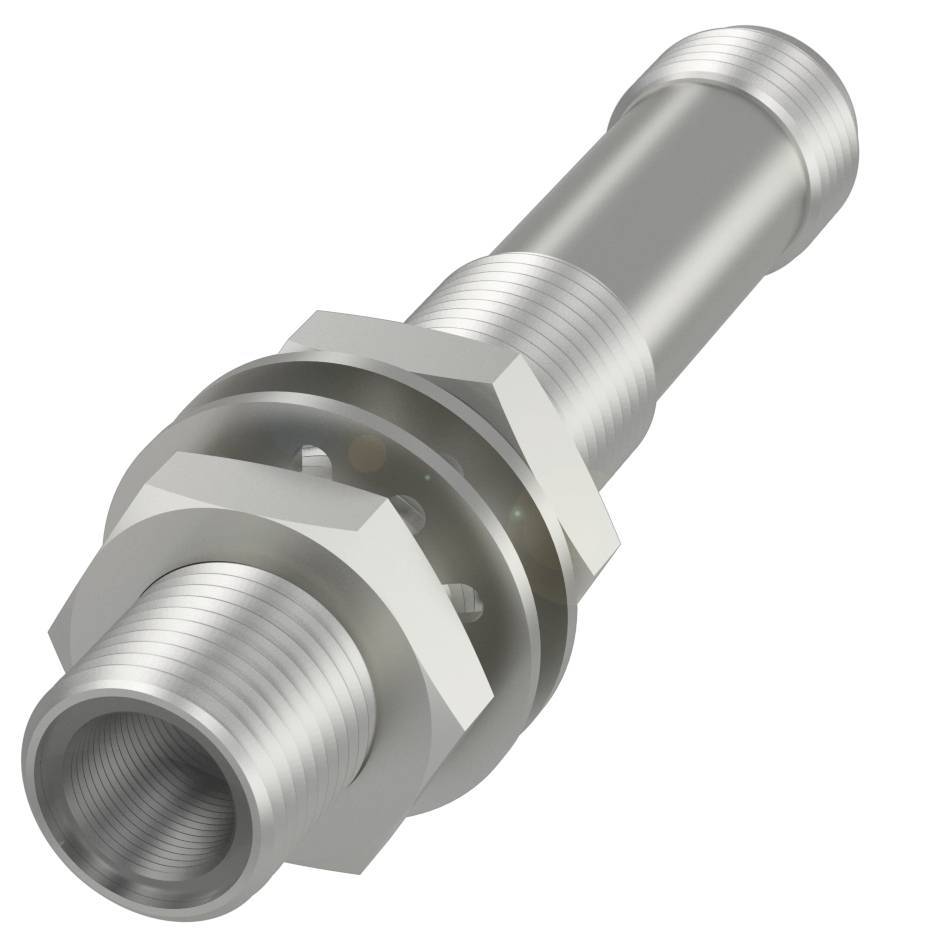

Image similar
BALLUFF Optical sensor BOS00WJ BOS00WJ Transmitter 1 pc(s)
EAN:
Part number:
Item no:
Product type
Optical sensor
Max. operating voltage
30.0 V
Connector
M12 (4-pin)
Type
BOS00WJ
Model
Transmitter
Datasheet (PDF)
Highlights & Details
Balluff BOS00WJ Cylindrical Single-beam sensors with M12 thread and different types of light
- Dimensions: Ø 12 x 70 mm
- Series 12M
- Functional principle: Optoelectronic sensor
- Optical function principle: One-way light barrier (transmitter)
- Beam characteristic: Collimated
Technical specifications
- Main features:Dimensions: Ø 12 x 70 mm
- Active surface, material: Glass
- Connection: Connector, M12x1 connector, 4-pin
- Series 12M
- Operating voltage Ub 10...30 VDC
- Functional principle: Optoelectronic sensor
- Optical function principle: One-way light barrier (transmitter)
- Housing material: Nickel-plated brass
- Light: Red laser light
- Light spot size: Ø 2.5 mm light emission
- Range 0 - 30 m
- Beam characteristic: Collimated
- Additional features:
- Functional principle: Optoelectronic sensor
- Dimensions: Ø 12 x 70 mm
- Attachment: Nut M12x1
- Rated operating voltage Ue DC 24 V
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 10...30 VDC
- Residual ripple max. (% of Ue): 10%
- Connection: Connector, M12x1 connector, 4-|pin
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Rated switching distance Sn: 30 m, adjustable
- MTTF (40 °C) 593 a
- Active surface, material: Glass
- Housing material: Nickel-plated brass
- EN 60068-2-27, shock: Half-sine, 30 gn, 11 ms, 3x6
- EN 60068-2-6, vibration: 10…55 Hz, amplitude 1 mm, 3x30|min.
- Protection class IP67
- Ambient temperature -10...50 °C
- Pollution level 3
- Range 0 - 30 m
- Tightening torque max. 15 Nm
- Contacts, surface protection: Gold-plated
- Series 12M
- Shape: Cylinder|straight lens
- Idle current IO max. at Ue 10 mA
- Optical function principle: One-way light barrier (transmitter)
- Laser class according to IEC 60825-1: 1
- Light: Red laser light
- Light spot size: Ø 2.5 mm light emission
- Medium power Po max. 60 µW
- Pulse duration t max. 2.5 µs
- Pulse frequency 19.7 kHz
- Beam characteristic: Collimated
- Wavelength 650 nm
- Smallest part type: 200 µm at 2 m. R0 = 6 m.
- REFERENCE RECEIVER: BOS 12M-..-LE10-.
- Surface protection Mechanical characteristics: Nickel-plated
- Pulse power PP max. 1.5 mW
- Smallest slit type: 0.5mm at 3M, R0= 6m (LS12)
- Product type
Optical sensor
- Type
BOS00WJ
- Model
Transmitter
- Operating voltage
24
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Connector
M12 (4-pin)
- Size
M12
- Enclosure material
Brass
- Material properties
nickel plated
- Transmitter type
SC laser red
- Laser class
1
- Wavelength
650 nm
30 m
IP67
- Min. temperature
-10 °C
- Max. temperature
50 °C
- Length
70.00 mm
- Content
1 pc(s)
- Nominal voltage
30.0 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418573 BALLUFF Optical sensor BOS00WJ BOS00WJ Transmitter 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418573 BALLUFF Optical sensor BOS00WJ BOS00WJ Transmitter 1 pc(s)
Description
With their excellent repeatability, our single-use light barriers are Ideal for positioning tasks. They recognize objects regardless of surface, color, and material. The transmitter and receiver are housed in separate enclosures. High ranges are not a problem for the light barriers. They have a large functional reserve and are very resistant to contamination. Series=12M, dimension=Ø 12 x 70 mm, operating principle=optoelectronic sensor, operational principle optical=one-way light barrier (transmitter), beam characteristic=collimated, light type=laser red light, Light spot size=Ø 2.5 mm Light output, range=0...30 m, connection=connector, M12x1 connector, 4-pin, Housing material=brass, active surface, material=glass, operating voltage Ub=10...30 VDC, approval/conformity=CecULusWEEE
This text is machine translated.
This text is machine translated.
Hints
For more information on this BOS00WJ, please refer to its datasheet under 'downloadable documents'
