Name: BALLUFF Optical sensor BOS0134 BOS0134 Contrast detection 1 pc(s)
Brand: BALLUFF
SKU: 3418127

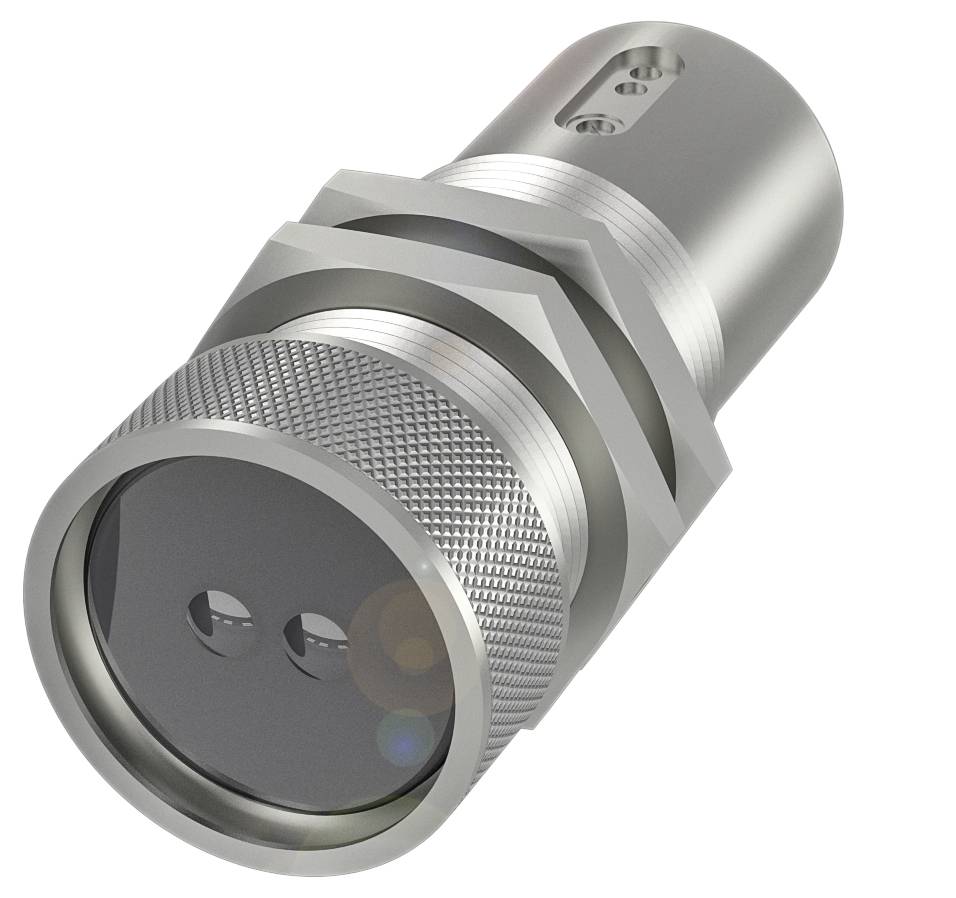

Silver-colored metal connector with ribbed grip at the front and threading on the back, for electrical connection.

Image similar

Product type

Optical sensor

Functions

Contrast detection

Max. operating voltage

30.0 V

Connector

M12 (4-pin)

Type

BOS0134

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BOS0134 cylindrical light switch with M30 diameter

Dimensions: Ø 36 x 89 mm
Series 30M
PNP NO/NC interface
NPN no/NC
Functional principle: Optoelectronic sensor
Optical functional principle: Light switch, energetic

Technical specifications

Main features:Dimensions: Ø 36 x 89 mm
Active surface, material: Glass
Connection: Connector, M12x1 connector, 4-pin
Series 30M
Operating voltage Ub 11...30 VDC
Functional principle: Optoelectronic sensor
Optical functional principle: Light switch, energetic
Housing material: Nickel-plated brass
Type of light: Infrared
Range 200...2000 mm
PNP NO/NC interface
NPN no/NC
Beam characteristics: Varied
Additional features:
Functional principle: Optoelectronic sensor
Dimensions: Ø 36 x 89 mm
Attachment: Nut M301.5
Output resistance Ra: 22.0 kOhm
Rated operating voltage Ue DC 24 V
Rated operating current Ie 200 mA
Operating voltage Ub 11...30 VDC
Load capacity max. at Ue 1 µF
Residual ripple max. (% of Ue): 10%
Switching frequency 15 Hz
Connection: Connector, M12x1 connector, 4-|pin
Short-circuit protection: Yes
Reverse polarity protection: Yes
Hysteresis H max. (% of Sr): 15.0%
Rated switching distance Sn: 2 m, adjustable
Temperature drift max. (% of Sr): 10%
MTTF (40 °C) 5 a
Active surface, material: Glass
Housing material: Nickel-plated brass
Range 200...2000 mm
Tightening torque max. 40 Nm
Adjustable interval (Sn)
Surface protection: Nickel-plated
Series 30M
Shape: Cylinder|straight lens
Display: LED green: Operating voltage|ERROR - LED red|LED yellow: Light reception
18-speed potentiometer
Shutdown delay toff max.: 33 ms
ON delay max.: 33 ms
Idle current IO max. at Ue 50 mA
Additional properties: Basic device for fiber optics BFO|18..
Voltage drop and max. at Ie Electrical connection: 2.5 V

Product type: Optical sensor

Type: BOS0134

Functions: Contrast detection

Operating voltage: 24

Min. operating voltage: 11.0 V

Max. operating voltage: 30.0 V

Operating voltage: 11.0 - 30.0 V

Contact type: 1 breaker
1 maker

Outputs: PNP

Switching frequency: 15 Hz

Connector: M12 (4-pin)

Enclosure material: Brass

Material properties: nickel plated

Transmitter type: LED IR

: 2000 mm

: IP65

Min. temperature: -5 °C

Max. temperature: 55 °C

Length: 89.00 mm

Height: 89 mm

(Ø): 36 mm

Dim: (Ø x H) 36 mm x 89 mm

Content: 1 pc(s)

Nominal voltage: 30.0 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3418127 BALLUFF Optical sensor BOS0134 BOS0134 Contrast detection 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3418127 BALLUFF Optical sensor BOS0134 BOS0134 Contrast detection 1 pc(s)

Description

Energetic light sensors are Ideal for detecting contrast differences. You can detect objects depending on the surface, color and material.They are cost-effective, easy to mount and align. Series=30M, dimension=Ø 36 x 89 mm, interface=PNP NO/NC (NO/NC) NPN NO/NC (NO/NC), operating principle=Optoelectronic sensor, operational principle optical=Light switch, energetic, radiation characteristic=diverse, light type=infrared, range=200...2000 mm, connection=plug connector, M12x1 plug, 4-pin, Housing material=brass, active surface, material=glass, operating voltage Ub=11...30 VDC, approval/conformity=CecULusWEEE
