Image similar

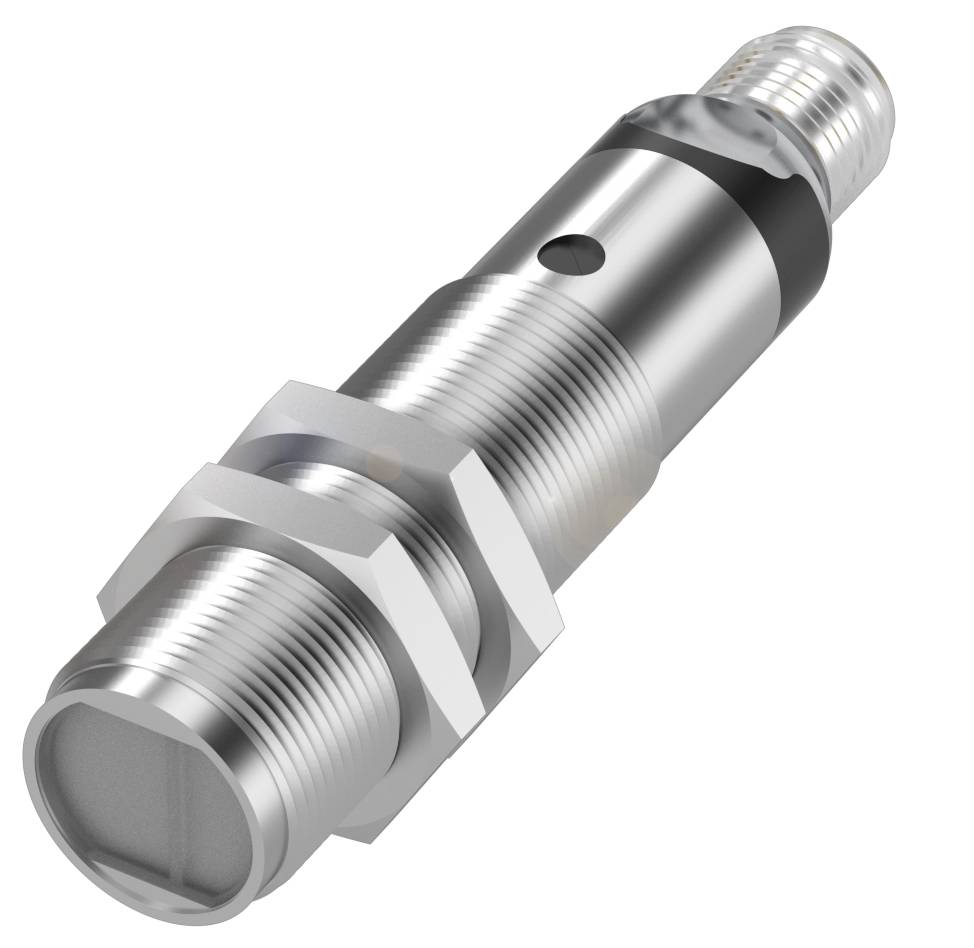

BALLUFF Optical sensor BOS013H BOS013H Light-ON 1 pc(s)
Packaging type
Piece
Product type
Optical sensor
Functions
Light-ON
Max. operating voltage
30.0 V
Connector
M12 (4-pin)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
BALLUFF BOS013H Cylindrical Light Switch with M18 thread and different types of light
- Dimensions: Ø 18 x 81.5 mm
- 18M series
- PNP NO interface
- PNP NC
- Functional principle: Optoelectronic sensor
- Optical functional principle: Light switch, energetic
Technical specifications
- Main features:Dimensions: Ø 18 x 81.5 mm
- Active surface, material: PMMA
- Connection: Connector, M12x1 connector, 4-pin
- 18M series
- Operating voltage Ub 10...30 VDC
- Functional principle: Optoelectronic sensor
- Optical functional principle: Light switch, energetic
- Housing material: Nickel-plated brass
- Light: Red laser light
- Range 0...350 mm
- PNP NO interface
- PNP NC
- Beam characteristics: Varied
- Additional features:
- Functional principle: Optoelectronic sensor
- Dimensions: Ø 18 x 81.5 mm
- Attachment: Nut M18x1
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 10...30 VDC
- Residual ripple max. (% of Ue): 8%
- Switching frequency 1500 Hz
- Protection class: II
- Connection: Connector, M12x1 connector, 4-|pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Rated switching distance Sn: 350 mm, adjustable
- MTTF (40 °C) 739 a
- Active surface, material: PMMA
- Housing material: Nickel-plated brass
- Range 0...350 mm
- Tightening torque max. 22 Nm
- Adjustable interval (Sn)
- Surface protection: Nickel-plated
- 18M series
- Shape: Cylinder|straight lens
- Display: Output function - LED yellow|LED green: Operating voltage
- Potentiometer 270°
- Shutdown delay toff max.: 0.33 ms
- ON delay max.: 0.33 ms
- Idle current IO max. at Ue 35 mA
- Voltage drop Ud max. at Ie 2 V
- External light max. 5000 Lux
- Optical functional principle: Light switch, energetic
- Laser class according to IEC 60825-1: 1
- Light: Red laser light
- Medium power Po max. 390 µW
- Pulse duration t max. 6.0 µs
- Pulse frequency 25 kHz
- Optical switching function: Light switching|dark switching
- Beam characteristics: Varied
- Wavelength 650 nm
- Packaging type
Piece
- Product type
Optical sensor
- Type
BOS013H
- Functions
Light-ON
- Operating voltage
24
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 breaker
1 maker
- Outputs
PNP
- Switching frequency
1500 Hz
- Connector
M12 (4-pin)
- Size
M18
- Enclosure material
Brass
- Material properties
nickel plated
- Transmitter type
SC laser red
- Laser class
1
- Wavelength
650 nm
350 mm
- Features
LED indicator
IP67
- Min. temperature
-10 °C
- Max. temperature
50 °C
- Length
81.50 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 81.50 mm
- Content
1 pc(s)
- Nominal voltage
30.0 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418495 BALLUFF Optical sensor BOS013H BOS013H Light-ON 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418495 BALLUFF Optical sensor BOS013H BOS013H Light-ON 1 pc(s)
Description
Energetic light sensors are Ideal for detecting contrast differences. You can detect objects depending on the surface, color and material.They are cost-effective, easy to mount and align. Optoelectronic sensor, light transmitter = laser, connector type = connector, switching output = PNP NO (PNP); PNP NC (pins 4-2, range max. = 350 mm
This text is machine translated.
This text is machine translated.
Hints
For more information on this BOS013H, please refer to its datasheet under 'downloadable documents'
