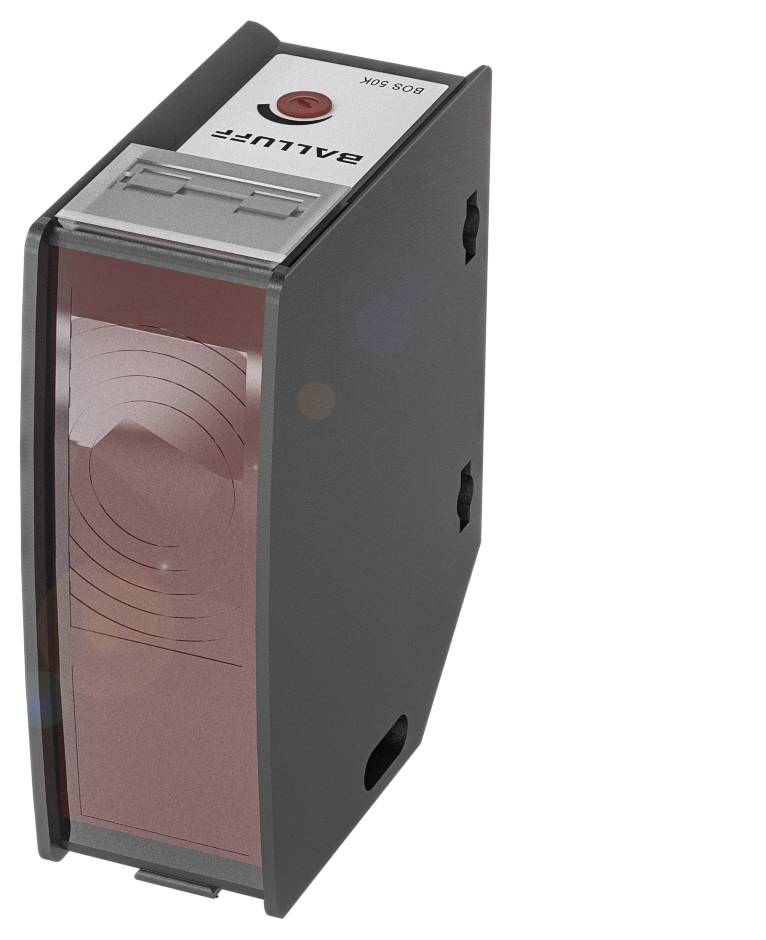

Name: BALLUFF Optical sensor BOS0156 BOS0156 Light-ON 1 pc(s)
Brand: BALLUFF
SKU: 3416813

Image similar

Packaging type

Piece

Product type

Optical sensor

Functions

Light-ON

Max. operating voltage

30.0 V

Connector

M12 (4-pin)

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BOS0156 Cubic switches with different light types up to 60 m range

Dimensions 28.5 x 80.5 x 62 mm
Series 50K
PNP NO interface
Functional principle: Optoelectronic sensor
Optical operating principle: Light switch, triangulation

Technical specifications

Main features:Dimension 28.5 x 80.5 x 62 mm
Active surface, material: Glass
Connection: Connector, M12x1 connector, 4-pin
Series 50K
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical operating principle: Light switch, triangulation
PC case material
ABS
LED red light
Light spot size 60 x 60 mm with Sr.
Optical special feature: Background suppression
Range 200...2000 mm
PNP NO interface
Beam characteristics: Varied
Additional features:
Dimensions 28.5 x 80.5 x 62 mm
Mounting: M5 screw
Connection: Connector, M12x1 connector, 4-|pin
Short-circuit protection: Yes
Reverse polarity protection: Yes
Exchange possibility protected: Yes
Hysteresis H max. (% of Sr): 5.0%
Rated switching distance Sn: 2 m, adjustable
Temperature drift max. (% of Sr): 10%
Repeatability max. (% of Sr): 5.0%
Active surface, material: Glass
Switching output: PNP NO
Housing material: PC|ABS
EN 60068-2-27, shock: Half-sine, 30 gn, 11 ms, 3x6
EN 60068-2-6, Vibration: 10…55 Hz, Amplitude: 0.5 mm,|3x30 min.
Protection class IP67
Ambient temperature -10...60 °C
Distance deviation 18 % max. (% of Sr): 8 %
Range 200...2000 mm
Contacts, surface protection: Gold-plated
External light max. 10000 Lux
Optical operating principle: Light switch, triangulation
LED red light
Light spot size 60 x 60 mm with Sr.
Optical special feature: Background suppression
Optical switching function: Light switching
Beam characteristics: Varied
Wavelength 630 nm
LED group according to IEC 62471: Free group
MTTF (40 °C) Material 219 a
Distance deviation 6 % max. (% of Sr): 25.0 %
Switching function, additional output: NC
Additional output: Error output PNP

Packaging type: Piece

Product type: Optical sensor

Type: BOS0156

Functions: Light-ON

Operating voltage: 24

Min. operating voltage: 10.0 V

Max. operating voltage: 30.0 V

Operating voltage: 10.0 - 30.0 V

Contact type: 1 maker

Outputs: PNP

Connector: M12 (4-pin)

Enclosure material: PC

Transmitter type: LED red

Wavelength: 630 nm

: 2000 mm

Features: Incl. background suppression

: IP67

Min. temperature: -10 °C

Max. temperature: 60 °C

Length: 62.00 mm

Width: 28.50 mm

Height: 80.50 mm

Depth: 62 m

Dim: (L x W x H) 62.00 x 28.50 x 80.50 mm

Content: 1 pc(s)

Nominal voltage: 30.0 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416813 BALLUFF Optical sensor BOS0156 BOS0156 Light-ON 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3416813 BALLUFF Optical sensor BOS0156 BOS0156 Light-ON 1 pc(s)

Description

Diffuse sensors with background suppression ensure reliable detection, regardless of surface, color and material. Their scanning method is almost constant even at various degrees of emission. Series=50K, dimension=28.5 x 80.5 x 62 mm, interface=PNP NO, operational principle=opto-electronic sensor, optical functional principle=light switch, triangulation, Special feature = background suppression, beam characteristic = divergent, light type = LED red light, light spot size = 60 x 60 mm for sr, range = 200...2000 mm, connection = connector, M12x1 connector, 4-pin, Housing material=PC ABS, Active surface, material=glass, operating voltage Ub=10...30 VDC, approval/conformity=CecULusEACWEEE
