Name: BALLUFF Optical sensor BOS01MU BOS01MU Dark-ON 1 pc(s)
Brand: BALLUFF
SKU: 3416599

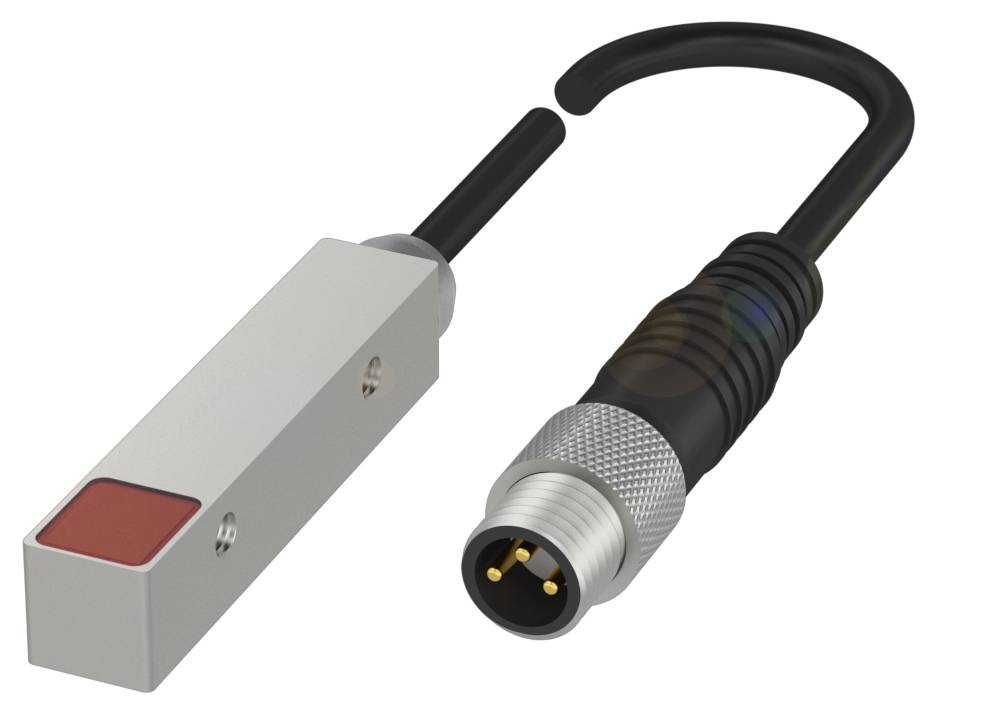

A rectangular sensor next to a round, black-silver connector with two visible contacts, connected by a black cable.

Image similar

Packaging type

Piece

Product type

Optical sensor

Functions

Dark-ON

Max. operating voltage

30.0 V

Connector

M8 (3-pin)

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BOS01MU Square reflective light barriers with different light types

Dimensions 8 x 59 x 8 mm
Q08M series
PNP NO interface
Functional principle: Optoelectronic sensor
Optical operating principle: Reflection light barrier

Technical specifications

Main features:Dimension 8 x 59 x 8 mm
Active surface, material: PMMA
Connection: Cable with plug connector, M8x1 plug, 3-pin, 0.20 m, PUR
Q08M series
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical operating principle: Reflection light barrier
Housing material: Zinc, die-cast, nickel-plated
Light: Red laser light
Light spot size: Ø 3.0 mm light emission
Range 0 - 1 m
PNP NO interface
Beam characteristics: Varied
Additional features:
Functional principle: Optoelectronic sensor
Dimensions 8 x 59 x 8 mm
Mounting: M3 screw
Output resistance Ra: 33.0 kOhm
Rated operating voltage Ue DC 24 V
Rated operating current Ie 100 mA
Rated insulation voltage UI 75 V DC
Standby delay TV max.: 150 ms
Operating voltage Ub 10...30 VDC
MTTF (40 °C) 1619 a
Active surface, material: PMMA
Housing material: Zinc, die-cast, nickel-plated
Sheath material: PUR
Surface protection: Nickel-plated
Q08M series
Shape: Cube|connection 90°
Shutdown delay toff max.: 1.25 ms
ON delay max.: 1.25 ms
Reference reflector BOS R-22

Packaging type: Piece

Product type: Optical sensor

Type: BOS01MU

Functions: Dark-ON

Operating voltage: 24

Min. operating voltage: 10.0 V

Max. operating voltage: 30.0 V

Operating voltage: 10.0 - 30.0 V

Contact type: 1 maker

Outputs: PNP

Connector: M8 (3-pin)

Cable length: 0.20 m

Enclosure material: Zinc

Material properties: Die-cast

Transmitter type: SC laser red

: 1 m

: IP67

Min. temperature: -5 °C

Max. temperature: 55 °C

Length: 8.00 mm

Width: 8.00 mm

Height: 59.00 mm

Depth: 8 m

Dim: (L x W x H) 8.00 x 8.00 x 59.00 mm

Content: 1 pc(s)

Nominal voltage: 30.0 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416599 BALLUFF Optical sensor BOS01MU BOS01MU Dark-ON 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3416599 BALLUFF Optical sensor BOS01MU BOS01MU Dark-ON 1 pc(s)

Description

Thanks to generous assembly tolerances, our reflection light barrier is particularly easy to align. You only install an electric device plus a reflector. Large reflectors guarantee high ranges. The light barriers detect objects regardless of surface, color and material. A polar filter makes them suitable for detecting shiny objects. Optoelectronic sensor, light transmitter = laser, connector type = cable with connector, switching output = PNP NO, range max. = 1 m
