Name: BALLUFF Optical sensor BOS01R1 BOS01R1 Transmitter 1 pc(s)
Brand: BALLUFF
SKU: 3418128

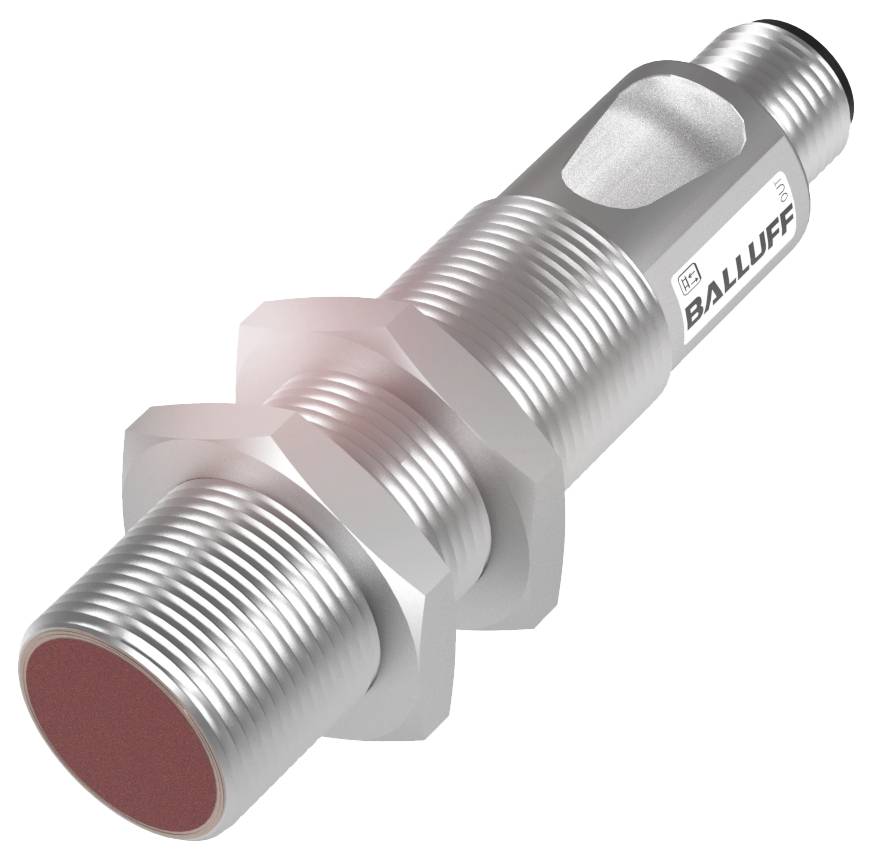

Metal sensor with cylindrical shape, thread, and 'BALLUFF' inscription. Sensor surface at the tip. Suitable for industrial applications.

Image similar

Packaging type

Piece

Product type

Optical sensor

Max. operating voltage

30.0 V

Connector

M12 (4-pin)

Type

BOS01R1

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BOS01R1 Cylindrical One-way Light Barriers with M18 thread and different types of light

Dimensions: Ø 18 x 75 mm
18M series
Functional principle: Optoelectronic sensor
Optical function principle: One-way light barrier (transmitter)
Beam characteristic: Collimated

Technical specifications

Main features:Dimensions: Ø 18 x 75 mm
Active surface, material: Glass
Connection: Connector, M12x1 connector, 4-pin
18M series
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical function principle: One-way light barrier (transmitter)
Housing material: Nickel-plated brass
Light: Red laser light
Light spot size: Ø 40 mm at 60 m.
Range 0 - 60 m
Beam characteristic: Collimated
Additional features:
Functional principle: Optoelectronic sensor
Dimensions: Ø 18 x 75 mm
Attachment: Nut M18x1
Rated operating voltage Ue DC 24 V
Rated insulation voltage UI 75 V DC
Operating voltage Ub 10...30 VDC
Residual ripple max. (% of Ue): 15%
Protection class: II
Connection: Connector, M12x1 connector, 4-|pin
Reverse polarity protection: Yes
Exchange possibility protected: Yes
Rated switching distance Sn: 60 m, adjustable
MTTF (40 °C) 811 a
Active surface, material: Glass
Housing material: Nickel-plated brass
Range 0 - 60 m
Tightening torque max.: 15 Nm|30 Nm
Contacts, surface protection: Gold-plated
18M series
Shape: Cylinder|straight lens
Display: LED green: Operating voltage
Adjuster: No
Idle current IO max. at Ue 9 mA
Optical function principle: One-way light barrier (transmitter)
Laser class according to IEC 60825-1: 1
Light: Red laser light
Light spot size: Ø 40 mm at 60 m.
Medium power Po max. 390 µW
Pulse duration t max. 30.0 µs
Pulse frequency 10.8 kHz
Smallest part type: Ø 0.2 mm at 1.5 m. R0 = 5 m.
REFERENCE RECEIVER: BOS 18M-..-LE20-..
Surface protection Mechanical characteristics: Nickel-plated
Pulse power PP max. 2.5 mW

Packaging type: Piece

Product type: Optical sensor

Type: BOS01R1

Model: Transmitter

Operating voltage: 24

Min. operating voltage: 10.0 V

Max. operating voltage: 30.0 V

Operating voltage: 10.0 - 30.0 V

Connector: M12 (4-pin)

Size: M18

Enclosure material: Brass

Material properties: nickel plated

Transmitter type: SC laser red

Laser class: 1

: 60 m

: IP67

Min. temperature: -5 °C

Max. temperature: 55 °C

Length: 75.00 mm

Depth: 75 m

Content: 1 pc(s)

Nominal voltage: 30.0 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3418128 BALLUFF Optical sensor BOS01R1 BOS01R1 Transmitter 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3418128 BALLUFF Optical sensor BOS01R1 BOS01R1 Transmitter 1 pc(s)

Description

With their excellent repeatability, our single-use light barriers are Ideal for positioning tasks. They recognize objects regardless of surface, color, and material. The transmitter and receiver are housed in separate enclosures. High ranges are not a problem for the light barriers. They have a large functional reserve and are very resistant to contamination. Series=18M, dimension=Ø 18 x 75 mm, operating principle=optoelectronic sensor, operational principle optical=one-way light barrier (transmitter), beam characteristic=collimated, light type=laser red light, Light spot size=Ø 40 mm at 60 m, range=0...60 m, connection=connector, M12x1 connector, 4-pin, Housing material=brass, active surface, material=glass, operating voltage Ub=10...30 VDC, approval/conformity=cULusCEEACWEEE
