Name: BALLUFF Optical sensor BOS020M BOS020M Light-ON 1 pc(s)
Brand: BALLUFF
SKU: 3416648

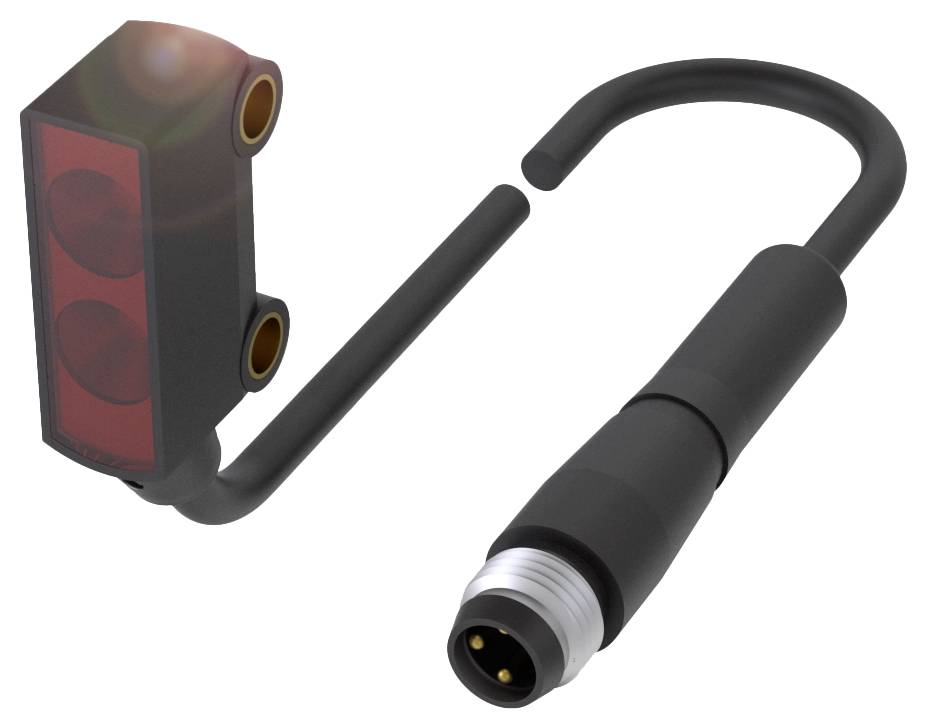

An electrical sensor with two connections and a curved cable is shown. The sensor is suitable for technical applications.

Image similar

Product type

Optical sensor

Functions

Light-ON

Max. operating voltage

30.0 V

Connector

M8 (3-pin)

Type

BOS020M

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

BALUFF BOS020M cubic light switches with different light types up to 3 m range

Dimensions 7.7 x 26.8 x 13.5 mm
Series R020K
PNP NO interface
Functional principle: Optoelectronic sensor
Optical operating principle: Light switch, HGA fixed

Technical specifications

Main features:Dimension 7.7 x 26.8 x 13.5 mm
Active surface, material: PMMA
Connection: Cable with plug connector, M8x1 plug, 3-pin, 0.20 m, PVC
Series R020K
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical operating principle: Light switch, HGA fixed
ABS casing material
LED red light
Light spot size: Ø 3 mm with 15 mm
Optical special feature: Background suppression
Range 1...30 mm
PNP NO interface
Beam characteristic: Focus typical at 15 mm
Additional features:
Functional principle: Optoelectronic sensor
Dimensions 7.7 x 26.8 x 13.5 mm
Mounting: M3 screw
Rated operating voltage Ue DC 24 V
Rated operating current Ie 50 mA
Rated insulation voltage UI 50 V DC
Operating voltage Ub 10...30 VDC
Residual ripple max. (% of Ue): 20%
Switching frequency 800 Hz
Protection class III
Connection: Cable with connector, M8x1-|plug, 3-pin, 0.20 m, PVC
Short-circuit protection: Yes
Reverse polarity protection: Yes
Exchange possibility protected: Yes
Rated switching distance Sn: 30 mm
MTTF (40 °C) 3487 a
Active surface, material: PMMA
Switching output: PNP NO
Cable diameter D 2.40 mm
Cable length 0.2 m
ABS casing material
Jacket material PVC
Protection class IP67
Ambient temperature: -25 to 50 °C
Range 1...30 mm
Series R020K
Shape: Cube|connection 60°
Display: LED green: Operating voltage
Shutdown delay toff max.: 0.63 ms
ON delay max.: 0.63 ms
Idle current IO max. at Ue 20 mA
Voltage drop Ud max. at Ie 2.5 V
External light max. 5000 Lux
Optical operating principle: Light switch, HGA fixed
LED red light
Light spot size: Ø 3 mm with 15 mm
Optical special feature: Background suppression
Optical switching function: Light switching
Beam characteristic: Focus typical at 15 mm
Wavelength 660 nm

Product type: Optical sensor

Type: BOS020M

Functions: Light-ON

Operating voltage: 24

Min. operating voltage: 10.0 V

Max. operating voltage: 30.0 V

Operating voltage: 10.0 - 30.0 V

Contact type: 1 maker

Outputs: PNP

Switching frequency: 800 Hz

Connector: M8 (3-pin)

Cable length: 0.20 m

Enclosure material: Acrylonitrile butadiene styrene

Transmitter type: LED red

Wavelength: 660 nm

: 30 mm

Features: Incl. background suppression

: IP67

Min. temperature: -25 °C

Max. temperature: 50 °C

Length: 13.50 mm

Width: 7.70 mm

Height: 26.80 mm

Dim: (L x W x H) 13.50 x 7.70 x 26.80 mm

Content: 1 pc(s)

Nominal voltage: 30.0 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416648 BALLUFF Optical sensor BOS020M BOS020M Light-ON 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3416648 BALLUFF Optical sensor BOS020M BOS020M Light-ON 1 pc(s)

Description

Diffuse sensors with background suppression ensure reliable detection, regardless of surface, color and material. Their scanning method is almost constant even at various degrees of emission. Series=R020K, dimension=7.7 x 26.8 x 13.5 mm, interface=PNP NO, operational principle=Optoelectronic sensor, operational principle optical=Light switch, HGA fixed, Special feature=background suppression, radiation characteristic=focus typically at 15 mm, light type=LED red light, light spot size=Ø 3 mm at 15 mm, range=1...30 mm, connection=cable with connector, M8x1-plug, 3-pole, 0.20 m, PVC, housing material=ABS, active surface, material=PMMA, Operating voltage Ub=10...30 VDC, approval/conformity=CecULusWEEE
