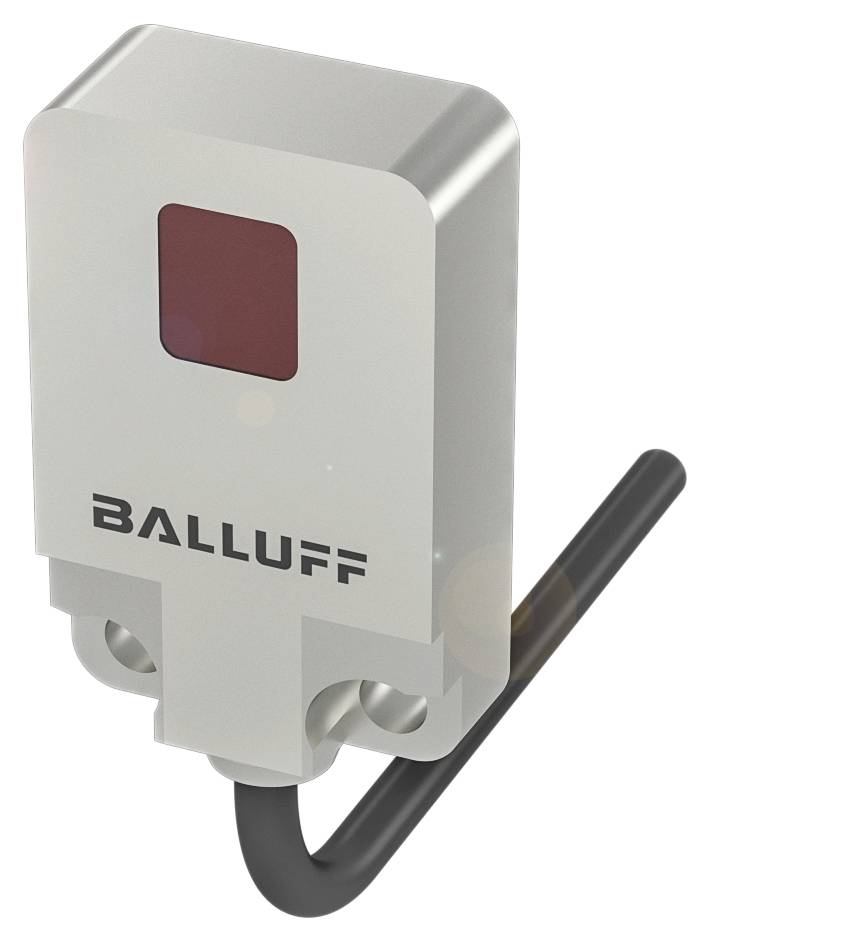

Name: BALLUFF Optical sensor BOS021K BOS021K Light-ON 1 pc(s)
Brand: BALLUFF
SKU: 3416764

Image similar

Product type

Optical sensor

Functions

Light-ON

Max. operating voltage

30.0 V

Connector

Cable, open end

Type

BOS021K

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

BALUFF BOS021K Cubic switches with different light types for washdown

Dimensions 20 x 32 x 9 mm
R01E
PNP NO interface
Functional principle: Optoelectronic sensor
Special features: Washdown

Technical specifications

Main features:Dimension 20 x 32 x 9 mm
Active surface, PA material
Connection: Cable, 2.00 m, PUR
R01E
Special features: Washdown
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical functional principle: Light switch, energetic
Housing material: Stainless steel (1.4404)
LED red light
Light spot size: Ø 3.0 mm light emission
Range 1...100 mm
PNP NO interface
Beam characteristics: Varied
Additional features:
Functional principle: Optoelectronic sensor
Dimensions 20 x 32 x 9 mm
Mounting: M3 screw
Rated operating voltage Ue DC 24 V
Rated operating current Ie 100 mA
Rated insulation voltage UI 75 V DC
Standby delay TV max.: 150 ms
Operating voltage Ub 10...30 VDC
Usage category: DC-13
Load capacity max. at Ue 0.05 µF
Residual current l max. 50 µA
Switching frequency 500 Hz
Connection: Cable, 2.00 m, PUR
Short-circuit protection: Yes
Reverse polarity protection: Yes
Exchange possibility protected: Yes
Hysteresis H max. (% of Sr): 8.0%
Rated switching distance Sn: 100 mm
Temperature drift max. (% of Sr): 10%
Repeatability max. (% of Sr): 0.2%
Active surface, PA material
Switching output: PNP NO
Cable diameter D 3.00 mm
Cable length 2 m
Housing material: Stainless steel (1.4404)
Sheath material: PUR
EN 60068-2-27, shock: Half-sine, 30 gn, 11 ms, 3x6|half-sine, 100 gn, 2 ms, 3x8000
EN 60068-2-6, Vibration: 10…55 Hz, Amplitude: 1 mm, 3x30|min|10…2000 Hz, Amplitude: 1 mm, 30|gn, 3x5 hrs
Protection class IP67
Ambient temperature -5...55 °C
Pollution level 3
Number of conductors: 3
Conductor cross-section: 0.14 mm²
Range 1...100 mm
R01E
Shape: Cube|connection 90°
Display: Limit range - LED yellow, flashes|LED yellow: Light reception
Shutdown delay toff max.: 1 ms
ON delay max.: 1 ms
Idle current IO max. at Ue 10 mA
Voltage drop Ud max. at Ie 0.7 V
External light max. 5000 Lux
Optical functional principle: Light switch, energetic
LED red light
Light spot size: Ø 3.0 mm light emission
Optical switching function: Light switching
Beam characteristics: Varied
Wavelength 650 nm
LED group according to IEC 62471: Free group
Protection class according to DIN 40050: IP69K

Product type: Optical sensor

Type: BOS021K

Functions: Light-ON

Operating voltage: 24

Min. operating voltage: 10.0 V

Max. operating voltage: 30.0 V

Operating voltage: 10.0 - 30.0 V

Contact type: 1 maker

Outputs: PNP

Switching frequency: 500 Hz

Connector: Cable, open end

Cable length: 2.00 m

Enclosure material: Stainless steel

Material properties: rust-proof

Transmitter type: LED red

Wavelength: 650 nm

: 100 mm

: IP67

Min. temperature: -5 °C

Max. temperature: 55 °C

Length: 9.00 mm

Width: 20.00 mm

Height: 32.00 mm

Depth: 9 m

Dim: (L x W x H) 9.00 x 20.00 x 32.00 mm

Content: 1 pc(s)

Nominal voltage: 30.0 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416764 BALLUFF Optical sensor BOS021K BOS021K Light-ON 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3416764 BALLUFF Optical sensor BOS021K BOS021K Light-ON 1 pc(s)

Description

Energetic light sensors are Ideal for detecting contrast differences. You can detect objects depending on the surface, color and material.They are cost-effective, easy to mount and align. Optoelectronic sensor, light transmitter = LED, connection type = cable, switching output = PNP NO, range max. = 100 mm
