Name: BALLUFF Optical sensor BOS0223 BOS0223 Light-ON 1 pc(s)
Brand: BALLUFF
SKU: 3416740

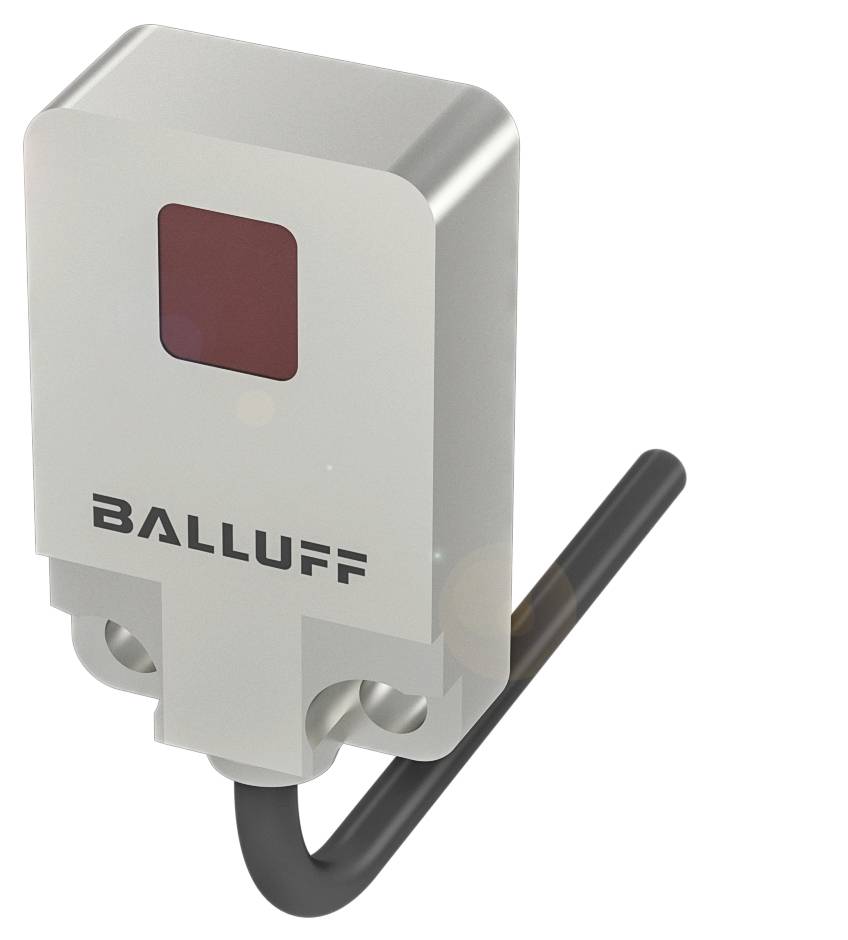

Image similar

Product type

Optical sensor

Functions

Light-ON

Max. operating voltage

30.0 V

Connector

Cable, open end

Type

BOS0223

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

BALUFF BOS0223 Cubic reflective light switches with different types of light for washdown

Dimensions 20 x 32 x 9 mm
R01E
PNP NC interface
Functional principle: Optoelectronic sensor
Special features: Washdown

Technical specifications

Main features:Dimension 20 x 32 x 9 mm
Active surface, PA material
Connection: Cable, 2.00 m, PUR
R01E
Special features: Washdown
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical operating principle: Reflection light barrier
Housing material: Stainless steel (1.4404)
LED red light
Light spot size: Ø 3.0 mm light emission
Range: 1 m
PNP NC interface
Beam characteristics: Varied
Additional features:
Dimensions 20 x 32 x 9 mm
Mounting: M3 screw
MTTF (40 °C) 466 a
Active surface, PA material
Switching output: PNP NC
Housing material: Stainless steel (1.4404)
Sheath material: PUR
EN 60068-2-27, shock: Half sine, 100 gn, 2 ms, 3x8000|half sine, 30 gn, 11 ms, 3x6
EN 60068-2-6, Vibration: 10…55 Hz, Amplitude: 1 mm, 3x30|min|10…2000 Hz, Amplitude: 1 mm, 30|gn, 3x5 hrs
Protection class IP67
Ambient temperature -5...55 °C
Pollution level 3
R01E
Shutdown delay toff max.: 1 ms
External light max. 5000 Lux
Optical operating principle: Reflection light barrier
LED red light
Light spot size: Ø 3.0 mm light emission
Polarisation filter: Yes
Optical switching function: Light switching
Beam characteristics: Varied
Wavelength 650 nm
LED group according to IEC 62471: Free group
Protection class according to DIN 40050: IP69K
Blind zone 25 mm

Product type: Optical sensor

Type: BOS0223

Functions: Light-ON

Operating voltage: 24

Min. operating voltage: 10.0 V

Max. operating voltage: 30.0 V

Operating voltage: 10.0 - 30.0 V

Contact type: 1 breaker

Outputs: PNP

Connector: Cable, open end

Cable length: 2.00 m

Enclosure material: Stainless steel

Transmitter type: LED red

Wavelength: 650 nm

: 1 m

: IP67

Min. temperature: -5 °C

Max. temperature: 55 °C

Length: 9.00 mm

Width: 20.00 mm

Height: 32.00 mm

Depth: 9 m

(Ø): 3.0 m

Dim: (Ø x H) 3.0 m x 32.00 mm

Content: 1 pc(s)

Nominal voltage: 30.0 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416740 BALLUFF Optical sensor BOS0223 BOS0223 Light-ON 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3416740 BALLUFF Optical sensor BOS0223 BOS0223 Light-ON 1 pc(s)

Description

Thanks to generous assembly tolerances, our reflection light barrier is particularly easy to align. You only install an electric device plus a reflector. Large reflectors guarantee high ranges. The light barriers detect objects regardless of surface, color and material. A polar filter makes them suitable for detecting shiny objects. Optoelectronic sensor, light transmitter = LED, connector type = cable, switching output = PNP NC
