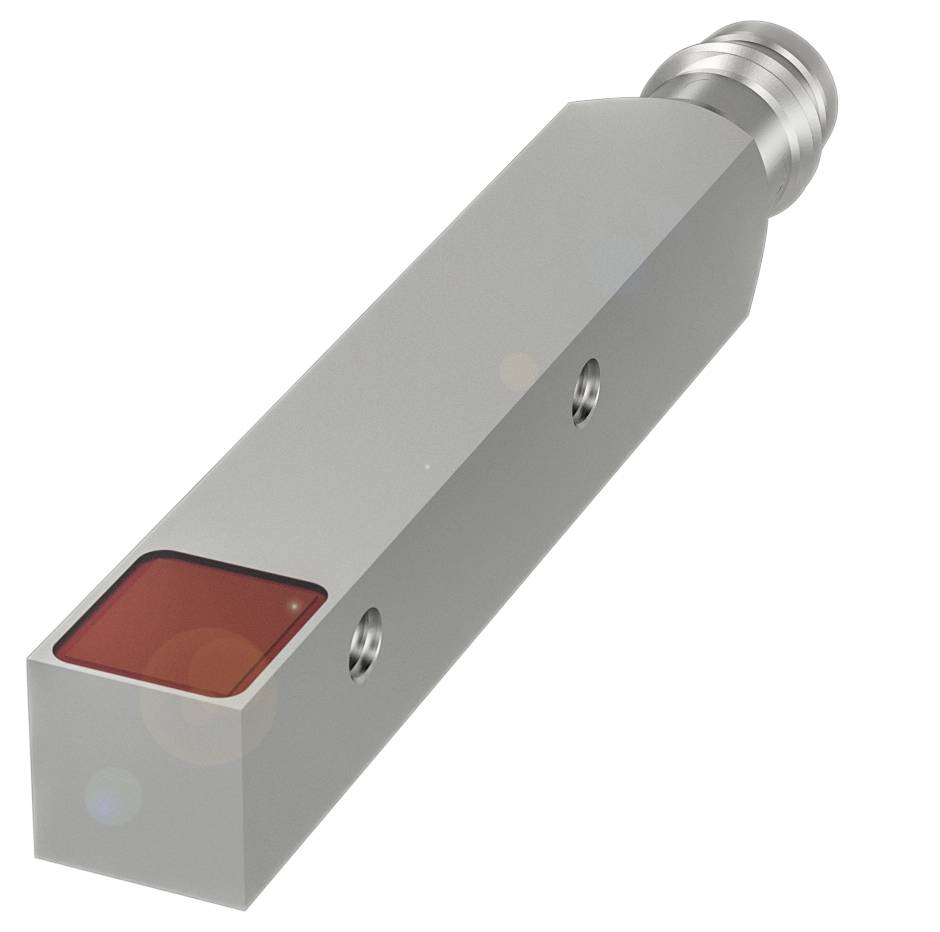

Image similar
BALLUFF Optical sensor BOS026F BOS026F Transmitter 1 pc(s)
Packaging type
Piece
Product type
Optical sensor
Max. operating voltage
30.0 V
Connector
M8 (3-pin)
Type
BOS026F
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BOS026F Square disposable light barriers with different light types
- Dimensions 8 x 59 x 8 mm
- Q08M series
- Functional principle: Optoelectronic sensor
- Optical function principle: One-way light barrier (transmitter)
- Beam characteristics: Varied
Technical specifications
- Main features:Dimension 8 x 59 x 8 mm
- Active surface, material: PMMA
- Connection: Plug connector, M8x1 plug, 3-pin
- Q08M series
- Operating voltage Ub 10...30 VDC
- Functional principle: Optoelectronic sensor
- Optical function principle: One-way light barrier (transmitter)
- Housing material: Zinc, die-cast, nickel-plated
- Light: Red laser light
- Light spot size: Ø 3.0 mm light emission
- Range 0 - 3 m
- Beam characteristics: Varied
- Additional features:
- Functional principle: Optoelectronic sensor
- Dimensions 8 x 59 x 8 mm
- Mounting: M3 screw
- Rated operating voltage Ue DC 24 V
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 10...30 VDC
- Residual ripple max. (% of Ue): 15%
- Connection: Connector, M8x1 plug, 3-|pin
- Reverse polarity protection: Yes
- Rated switching distance Sn: 3 m.
- MTTF (40 °C) 1579 a
- Active surface, material: PMMA
- Housing material: Zinc, die-cast, nickel-plated
- EN 60068-2-27, shock: Half-sine, 30 gn, 11 ms, 3x6|half-sine, 100 gn, 2 ms, 3x8000
- EN 60068-2-6, vibration: 10…2000 Hz, 1 mm, 30 gn, 3x5 h|10…55 Hz, Amplitude: 1 mm, 3x30|min.
- Protection class IP67
- Ambient temperature -5...55 °C
- Range 0 - 3 m
- Surface protection: Nickel-plated
- Q08M series
- Shape: Cube|connection 90°
- Adjuster: No
- Idle current IO max. at Ue 10 mA
- Optical function principle: One-way light barrier (transmitter)
- Laser class according to IEC 60825-1: 1
- Light: Red laser light
- Light spot size: Ø 3.0 mm light emission
- Medium power Po max. 390 µW
- Pulse duration t max. 6 µs
- Pulse frequency 8 kHz
- Beam characteristics: Varied
- Wavelength 650 nm
- REFERENCE RECEIVER: BOS Q08M-..-LE21-..
- Pulse power PP max. 2 mW
- Packaging type
Piece
- Product type
Optical sensor
- Type
BOS026F
- Model
Transmitter
- Operating voltage
24
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Connector
M8 (3-pin)
- Enclosure material
Zinc
- Material properties
Die-cast
- Transmitter type
SC laser red
- Laser class
1
- Wavelength
650 nm
3 m
IP67
- Min. temperature
-5 °C
- Max. temperature
55 °C
- Length
8.00 mm
- Width
8.00 mm
- Height
59.00 mm
- Dim
(L x W x H) 8.00 x 8.00 x 59.00 mm
- Content
1 pc(s)
- Nominal voltage
30.0 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416646 BALLUFF Optical sensor BOS026F BOS026F Transmitter 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3416646 BALLUFF Optical sensor BOS026F BOS026F Transmitter 1 pc(s)
Description
With their excellent repeatability, our single-use light barriers are Ideal for positioning tasks. They recognize objects regardless of surface, color, and material. The transmitter and receiver are housed in separate enclosures. High ranges are not a problem for the light barriers. They have a large functional reserve and are very resistant to contamination. Optoelectronic sensor, light transmitter = laser, connector type = connector, range max. = 3 m
This text is machine translated.
This text is machine translated.
Hints
For more information on this BOS026F, please refer to its datasheet under 'downloadable documents'
