Name: BALLUFF Photo sensor BOS 12M-PA-RH12-S4 BOS01ZU 1 pc(s)
Brand: BALLUFF
SKU: 3416647

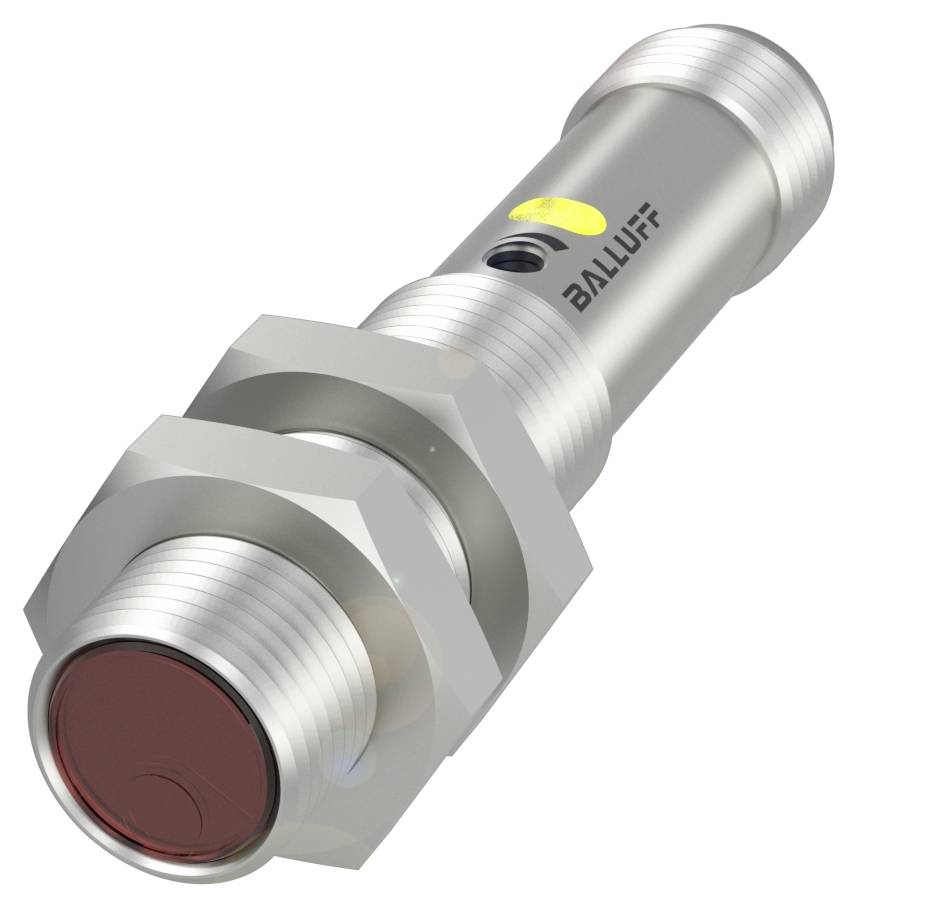

A cylindrical, silver sensor with the inscription 'Balluff' on the side, with a nut-shaped part for mounting.

Image similar

Product type

Photo sensor

Connector

M12 (4-pin)

Type

BOS 12M-PA-RH12-S4

Operating voltage

24 V DC

Contact type

1 breaker

1 maker

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BOS01ZU Cylindrical Light Switch with M12 thread and different types of light

Dimensions: Ø 12 x 60 mm
Series 12M
PNP NO interface
PNP NC
Functional principle: Optoelectronic sensor
Optical operating principle: Light switch, triangulation

Technical specifications

Main features:Dimensions: Ø 12 x 60 mm
Active surface, material: PMMA
Connection: Connector, M12x1 connector, 4-pin
Series 12M
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical operating principle: Light switch, triangulation
Housing material: Nickel-plated brass
LED red light
Light spot size: Ø 6 mm with 100 mm
Optical special feature: Background suppression
Range 25...100 mm
PNP NO interface
PNP NC
Beam characteristics: Varied
Additional features:
Dimensions: Ø 12 x 60 mm
Attachment: Nut M12x1
Rated operating voltage Ue DC 24 V
MTTF (40 °C) 631 a
Active surface, material: PMMA
Housing material: Nickel-plated brass
Tightening torque max.: 7 Nm|15 Nm
Surface protection: Nickel-plated
Series 12M
Shape: Cylinder|straight lens
Shutdown delay toff max.: 1 ms

Product type: Photo sensor

Type: BOS 12M-PA-RH12-S4

Operating voltage: 24 V DC

Contact type: 1 breaker
1 maker

Connector: M12 (4-pin)

Size: M12

Enclosure material: Brass (Ni-plated)

Material properties: nickel plated

Transmitter type: LED red

: 100 mm

Features: Incl. background suppression

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416647 BALLUFF Photo sensor BOS 12M-PA-RH12-S4 BOS01ZU 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3416647 BALLUFF Photo sensor BOS 12M-PA-RH12-S4 BOS01ZU 1 pc(s)

Description

Diffuse sensors with background suppression ensure reliable detection, regardless of surface, color and material. Their scanning method is almost constant even at various degrees of emission. Photoelectric sensor, background suppression, light emitter=LED, connection type=connector, switching output=PNP normally open (NO); PNP NC pins 4-2, range max.=100 mm
