Name: BALLUFF Photo sensor BOS 12M-PO-RD10-S4 BOS01WP 1 pc(s)
Brand: BALLUFF
SKU: 3417506

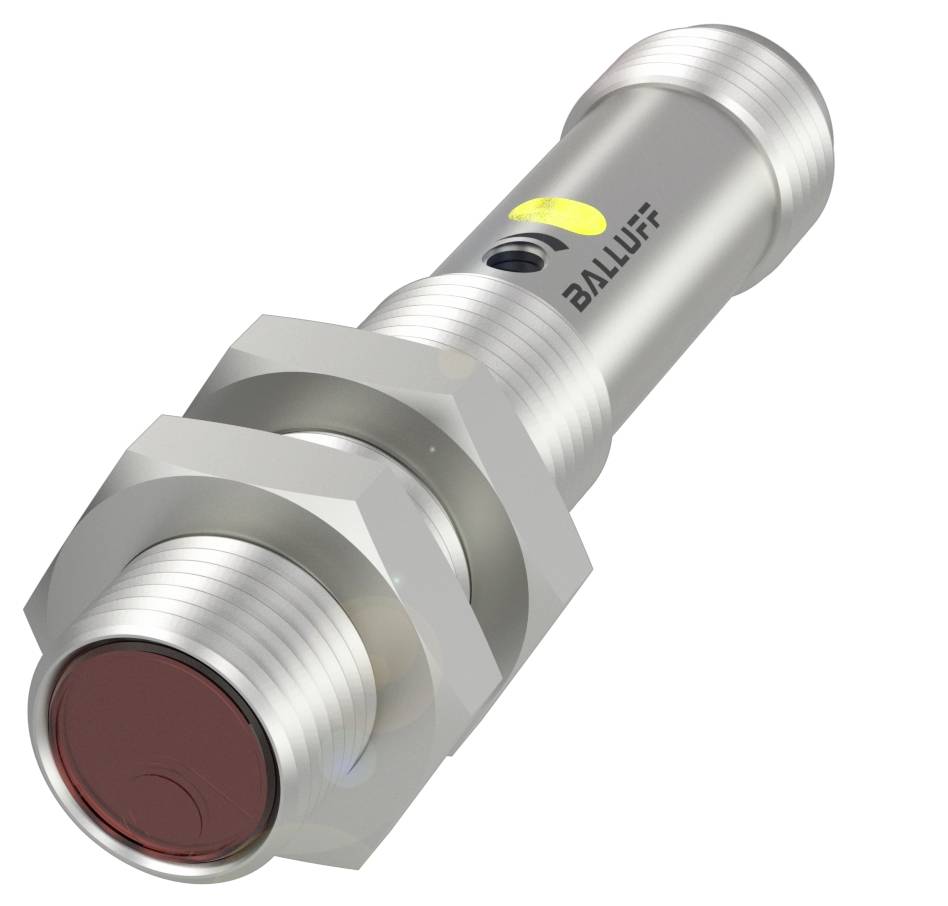

A cylindrical sensor with the inscription 'Balluff', silver-colored, with a red cap at one end, suitable for industrial applications.

Image similar

Product type

Photo sensor

Connector

M12 (4-pin)

Type

BOS 12M-PO-RD10-S4

Operating voltage

24 V DC

Contact type

1 breaker

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

BALLUFF BOS01WP cylindrical light sensors with M12 thread and different types of light

Dimensions: Ø 12 x 60 mm
Series 12M
PNP NC interface
Functional principle: Optoelectronic sensor
Optical functional principle: Light switch, energetic

Technical specifications

Main features:Dimensions: Ø 12 x 60 mm
Active surface, material: PMMA
Connection: Connector, M12x1 connector, 4-pin
Series 12M
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical functional principle: Light switch, energetic
Housing material: Nickel-plated brass
LED red light
Light spot size 28 x 28 mm at 250 mm
Brand: Global
Range 0...250 mm
PNP NC interface
Beam characteristics: Varied
Additional features:
Functional principle: Optoelectronic sensor
Dimensions: Ø 12 x 60 mm
Attachment: Nut M12x1
Rated operating voltage Ue DC 24 V
Rated operating current Ie 100 mA
Rated insulation voltage UI 75 V DC
Operating voltage Ub 10...30 VDC
Usage category: DC-13
Load capacity max. at Ue 0.2 µF
Residual ripple max. (% of Ue): 15%
Switching frequency 1000 Hz
Connection: Connector, M12x1 connector, 4-|pin
Short-circuit protection: Yes
Reverse polarity protection: Yes
Exchange possibility protected: Yes
Hysteresis H max. (% of Sr): 10.0%
Rated switching distance Sn: 250 mm, adjustable
Temperature drift max. (% of Sr): 10%
MTTF (40 °C) 1428 a
Active surface, material: PMMA
Housing material: Nickel-plated brass
Range 0...250 mm
Tightening torque max.: 7 Nm|15 Nm
Adjustable interval (Sn)
Contacts, surface protection: Gold-plated
Surface protection: Nickel-plated
Brand: Global
Series 12M
Shape: Cylinder|straight lens
Display: LED green: Operating voltage|Boundary range - LED yellow, flashes|LED yellow: Light reception
Potentiometer 270°
Shutdown delay toff max.: 0.5 ms
ON delay max.: 0.5 ms
Idle current IO max. at Ue 20 mA
Voltage drop Ud max. at Ie 1.5 V

Product type: Photo sensor

Type: BOS 12M-PO-RD10-S4

Operating voltage: 24 V DC

Contact type: 1 breaker

Switching frequency: 1000 Hz

Connector: M12 (4-pin)

Size: M12

Enclosure material: Brass (Ni-plated)

Material properties: nickel plated

Transmitter type: LED red

: 250 mm

(Ø): 12 mm

Dim: (Ø) 12 mm

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3417506 BALLUFF Photo sensor BOS 12M-PO-RD10-S4 BOS01WP 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3417506 BALLUFF Photo sensor BOS 12M-PO-RD10-S4 BOS01WP 1 pc(s)

Description

Energetic light sensors are Ideal for detecting contrast differences. You can detect objects depending on the surface, color and material.They are cost-effective, easy to mount and align. Optoelectronic sensor, light transmitter = LED, connector type = connector, switching output = PNP NC) pin 2, range max. = 250 mm
