Name: BALLUFF Photo sensor BOS 12M-PS-ID10-S4 BOS01Y2 1 pc(s)
Brand: BALLUFF
SKU: 3416601

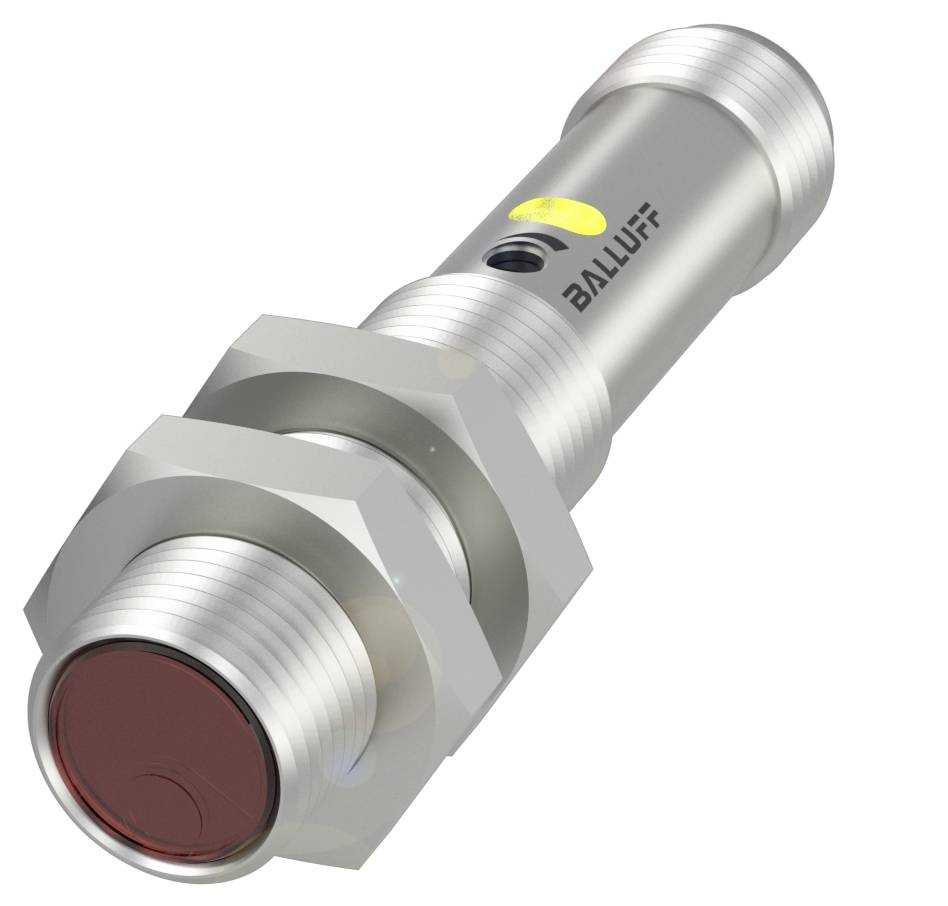

A cylindrical sensor from Balluff with metallic housing and red sensor area, suitable for industrial applications.

Image similar

Product type

Photo sensor

Connector

M12 (4-pin)

Type

BOS 12M-PS-ID10-S4

Operating voltage

24 V DC

Contact type

1 maker

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

BALUFF BOS01Y2 Cylindrical Light Switch with M12 thread and different types of light

Dimensions: Ø 12 x 60 mm
Series 12M
PNP NO interface
Functional principle: Optoelectronic sensor
Optical functional principle: Light switch, energetic

Technical specifications

Main features:Dimensions: Ø 12 x 60 mm
Active surface, material: PMMA
Connection: Connector, M12x1 connector, 4-pin
Series 12M
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical functional principle: Light switch, energetic
Housing material: Nickel-plated brass
LED infrared light
Light spot size 45 x 45 mm at 400 mm
Range 1...400 mm
PNP NO interface
Beam characteristics: Varied
Additional features:
Functional principle: Optoelectronic sensor
Dimensions: Ø 12 x 60 mm
Attachment: Nut M12x1
Rated operating voltage Ue DC 24 V
Rated operating current Ie 100 mA
Rated insulation voltage UI 75 V DC
Operating voltage Ub 10...30 VDC
Usage category: DC-13
Load capacity max. at Ue 0.2 µF
Residual ripple max. (% of Ue): 15%
Switching frequency 1000 Hz
Connection: Connector, M12x1 connector, 4-|pin
Short-circuit protection: Yes
Reverse polarity protection: Yes
Exchange possibility protected: Yes
Hysteresis H max. (% of Sr): 10.0%
Rated switching distance Sn: 400 mm, adjustable
Temperature drift max. (% of Sr): 10%
MTTF (40 °C) 1428 a
Active surface, material: PMMA
Switching output: PNP NO pin 4
Housing material: Nickel-plated brass
EN 60068-2-27, shock: Half-sine, 30 gn, 11 ms, 3x6
EN 60068-2-6, vibration: 10…55 Hz, amplitude 1 mm, 3x30|min.
Protection class IP67
Ambient temperature -5...55 °C
Pollution level 3
Range 1...400 mm
Tightening torque max.: 7 Nm|15 Nm
Adjustable interval (Sn)
Contacts, surface protection: Gold-plated
Surface protection: Nickel-plated
Series 12M
Shape: Cylinder|straight lens
Display: LED green: Operating voltage|Boundary range - LED yellow, flashes|LED yellow: Light reception
Potentiometer 270°
Shutdown delay toff max.: 0.5 ms
ON delay max.: 0.5 ms
Voltage drop Ud max. at Ie 1.5 V
External light max. 10000 Lux
Optical functional principle: Light switch, energetic
LED infrared light
Light spot size 45 x 45 mm at 400 mm
Optical switching function: Light switching
Beam characteristics: Varied
Wavelength 850 nm.
LED group according to IEC 62471: Free group

Product type: Photo sensor

Type: BOS 12M-PS-ID10-S4

Operating voltage: 24 V DC

Contact type: 1 maker

Switching frequency: 1000 Hz

Connector: M12 (4-pin)

Size: M12

Enclosure material: Brass (Ni-plated)

Material properties: nickel plated

Transmitter type: LED IR

Wavelength: 850 nm

: 400 mm

: IP67

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416601 BALLUFF Photo sensor BOS 12M-PS-ID10-S4 BOS01Y2 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3416601 BALLUFF Photo sensor BOS 12M-PS-ID10-S4 BOS01Y2 1 pc(s)

Description

Energetic light sensors are Ideal for detecting contrast differences. You can detect objects depending on the surface, color and material.They are cost-effective, easy to mount and align. Optoelectronic sensor, light transmitter = LED, connector type = connector, switching output = PNP NO pin 4, range max. = 400 mm
