Name: BALLUFF Photo sensor BOS 18M-PA-RH22-S4 BOS014W 1 pc(s)
Brand: BALLUFF
SKU: 3416596

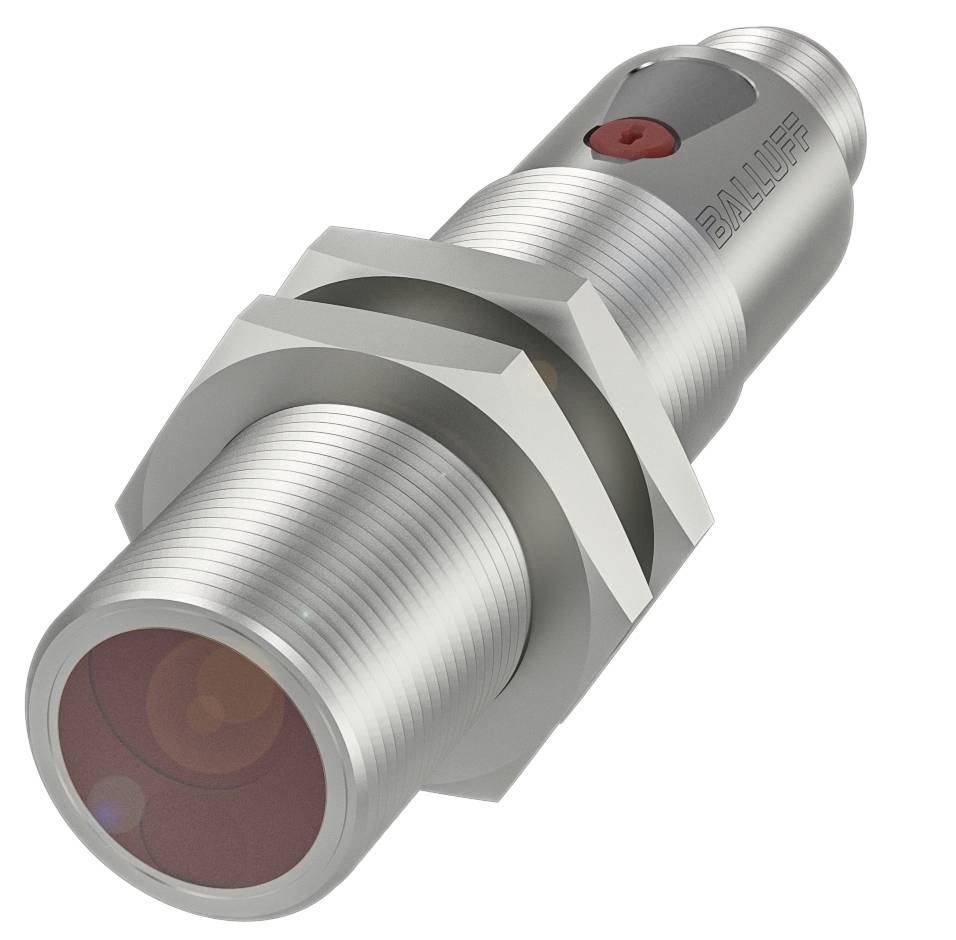

A cylindrical, silver sensor with a red front glass and a black button, suitable for industrial applications.

Image similar

Product type

Photo sensor

Max. operating voltage

30 V DC

Connector

M12 (4-pin)

Type

BOS 18M-PA-RH22-S4

Min. operating voltage

10 V DC

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BOS014W Cylindrical Light Switch with M18 thread and different types of light

Dimensions: Ø 18 x 75 mm
18M series
PNP NO interface
PNP NC
Functional principle: Optoelectronic sensor
Optical operating principle: Light switch, triangulation

Technical specifications

Main features:Dimensions: Ø 18 x 75 mm
Active surface, material: Glass
Connection: Connector, M12x1 connector, 4-pin
18M series
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical operating principle: Light switch, triangulation
Housing material: Brass
LED red light
Light spot size 27 x 27 mm at 300 mm
Optical special feature: Background suppression
Range 30...300 mm
PNP NO interface
PNP NC
Beam characteristics: Varied
Additional features:
Dimensions: Ø 18 x 75 mm
Attachment: Nut M18x1
Hysteresis H max. (% of Sr): 6.0%
Rated switching distance Sn: 300 mm adjustable
Repeatability max. (% of Sr): 1.0%
MTTF (40 °C) 563 a
Active surface, material: Glass
Housing material: Brass
Distance deviation 18 % max. (% of Sr): Typical 18 %
Range 30...300 mm
Tightening torque max.: 15 Nm|30 Nm

Product type: Photo sensor

Type: BOS 18M-PA-RH22-S4

Min. operating voltage: 10 V DC

Max. operating voltage: 30 V DC

Operating voltage: 10 - 30 V DC

Contact type: 1 breaker
1 maker

Connector: M12 (4-pin)

Size: M18

Enclosure material: Brass

Transmitter type: LED red

: 300 mm

Features: Incl. background suppression

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416596 BALLUFF Photo sensor BOS 18M-PA-RH22-S4 BOS014W 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3416596 BALLUFF Photo sensor BOS 18M-PA-RH22-S4 BOS014W 1 pc(s)

Description

Diffuse sensors with background suppression ensure reliable detection, regardless of surface, color and material. Their scanning method is almost constant even at various degrees of emission. Series=18M, dimension=Ø 18 x 75 mm, interface=PNP NO (PNP) PNP NC, operational principle=Optoelectronic sensor, operational principle optical=Light switch, Triangulation, Optical feature=background suppression, Beam characteristic=diverse, light type=LED red light, light spot size=27 x 27 mm at 300 mm, range=30...300 mm, connection=connector, M12x1 connector, 4-pin, Housing material=brass, active surface, material=glass, operating voltage Ub=10...30 VDC, approval/conformity=cULusCEEACWEEE
