Name: BALLUFF Photo sensor BOS 18M-PUV-RD30-S4 BOS01J8 Contrast detection 1 pc(s)
Brand: BALLUFF
SKU: 3416571

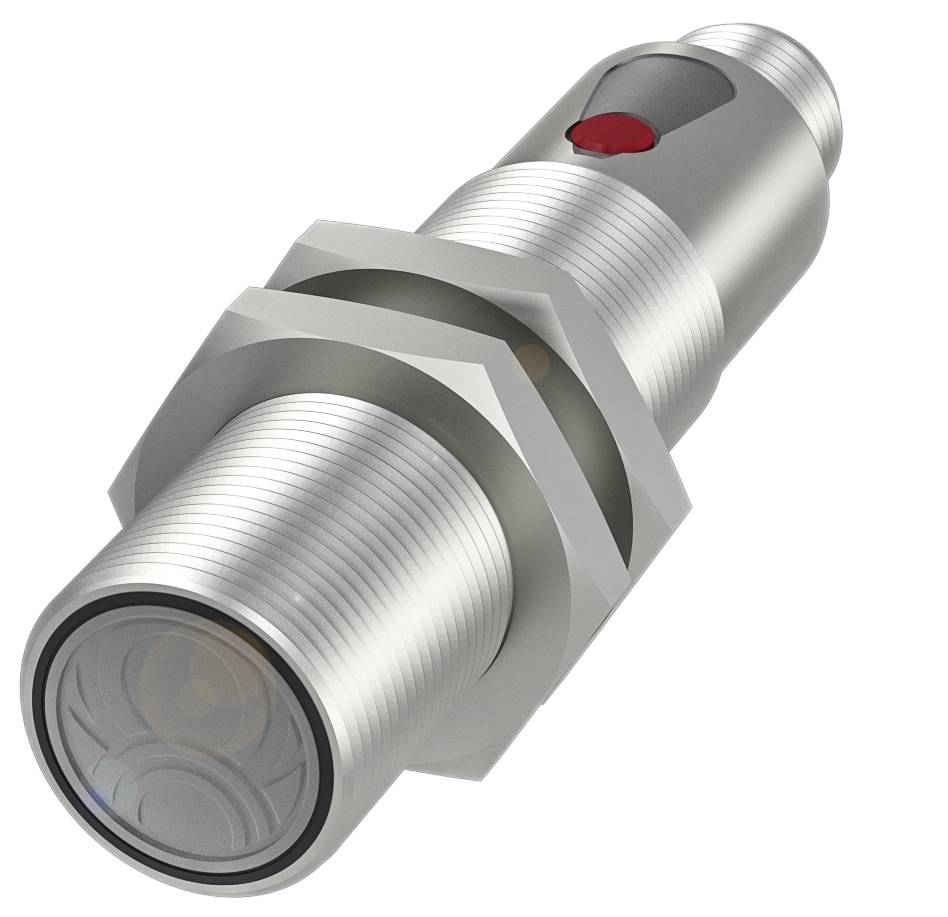

Cylindrical stainless steel sensor with red and black button on top, suitable for industrial applications.

Image similar

Product type

Photo sensor

Functions

Contrast detection

Connector

M12 (4-pin)

Type

BOS 18M-PUV-RD30-S4

Operating voltage

24 V DC

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BOS01J8 Cylindrical Light Switch with M18 thread and different types of light

Dimensions: Ø 18 x 75 mm
18M series
PNP NO/NC interface
Functional principle: Optoelectronic sensor
Optical functional principle: Light switch, energetic

Technical specifications

Main features:Dimensions: Ø 18 x 75 mm
Active surface, material: Glass
Connection: Connector, M12x1 connector, 4-pin
18M series
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical functional principle: Light switch, energetic
Housing material: Nickel-plated brass
LED red light
Light spot size: Ø 50 mm with 600 mm
Range 0...500 mm
PNP NO/NC interface
Beam characteristics: Varied
Additional features:
Functional principle: Optoelectronic sensor
Dimensions: Ø 18 x 75 mm
Attachment: Nut M18x1
Rated operating voltage Ue DC 24 V
Rated operating current Ie 100 mA
Rated insulation voltage UI 75 V DC
Operating voltage Ub 10...30 VDC
Usage category: DC-13
Load capacity max. at Ue 0.1 µF
Residual ripple max. (% of Ue): 15%
Switching frequency 1000 Hz
Protection class: II
Connection: Connector, M12x1 connector, 4-|pin
Short-circuit protection: Yes
Reverse polarity protection: Yes
Exchange possibility protected: Yes
Hysteresis H max. (% of Sr): 10.0%
Rated switching distance Sn: 500 mm, adjustable
Temperature drift max. (% of Sr): 10%
MTTF (40 °C) 468 a
Active surface, material: Glass
Housing material: Nickel-plated brass
Range 0...500 mm
Tightening torque max.: 15 Nm|30 Nm
Adjustable interval (Sn)
Contacts, surface protection: Gold-plated
Surface protection: Nickel-plated
18M series
Shape: Cylinder|straight lens
Display: LED green: Operating voltage|Boundary range - LED yellow, flashes|Short circuit - LED green, flashes|LED yellow: Light reception
Adjuster: Button
Shutdown delay toff max.: 0.5 ms
ON delay max.: 0.5 ms
Idle current IO max. at Ue 40 mA
Voltage drop Ud max. at Ie 2.5 V

Product type: Photo sensor

Type: BOS 18M-PUV-RD30-S4

Functions: Contrast detection

Operating voltage: 24 V DC

Contact type: 1 breaker
1 maker

Switching frequency: 1000 Hz

Connector: M12 (4-pin)

Size: M18

Enclosure material: Brass (Ni-plated)

Material properties: nickel plated

Transmitter type: LED red

: 500 mm

Depth: 75 m

(Ø): 18 m

Dim: (Ø x D) 18 m x 75 m

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416571 BALLUFF Photo sensor BOS 18M-PUV-RD30-S4 BOS01J8 Contrast detection 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3416571 BALLUFF Photo sensor BOS 18M-PUV-RD30-S4 BOS01J8 Contrast detection 1 pc(s)

Description

Energetic light sensors are Ideal for detecting contrast differences. You can detect objects depending on the surface, color and material.They are cost-effective, easy to mount and align. Series=18M, dimension=Ø 18 x 75 mm, interface=PNP NO/NC contact (NO/NC), operating principle=Optoelectronic sensor, operational principle optical=Light switch, energetic, Beam characteristic=diverse, light type=LED red light, light spot size=Ø 50 mm at 600 mm, range=0...500 mm, connection=connector, M12x1 connector, 4-pin, Housing material=brass, active surface, material=glass, operating voltage Ub=10...30 VDC, approval/conformity=CecULusEACWEEE
