Name: BALLUFF Photo sensor BOS Q08M-PS-KD20-S49 BOS01RJ 1 pc(s)
Brand: BALLUFF
SKU: 3416729

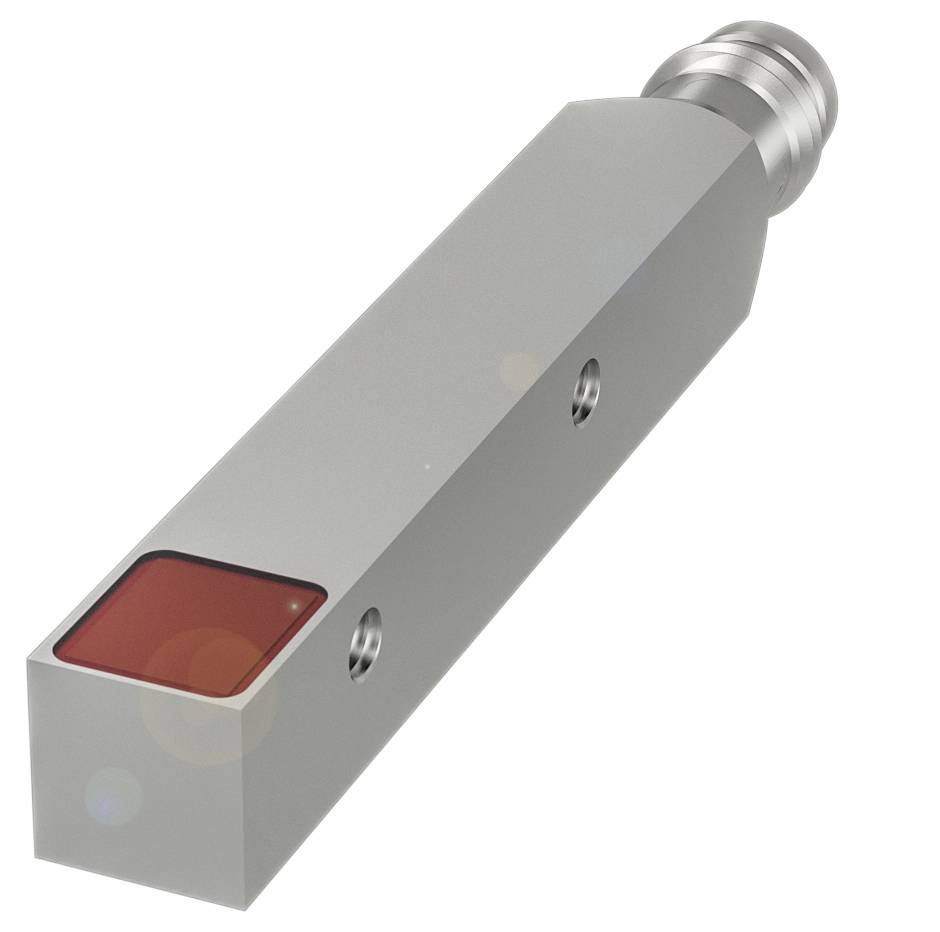

A rectangular, metallic shiny sensor with a red window and round connection at the end, possibly for industrial applications.

Image similar

Packaging type

Single

Product type

Photo sensor

Connector

M8 (3-pin)

Type

BOS Q08M-PS-KD20-S49

Operating voltage

24 V DC

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BOS01RJ Square light sensors with different types of light

Dimensions 8 x 59 x 8 mm
Q08M series
PNP NO interface
Functional principle: Optoelectronic sensor
Optical functional principle: Light switch, energetic

Technical specifications

Main features:Dimension 8 x 59 x 8 mm
Active surface, material: PMMA
Connection: Plug connector, M8x1 plug, 3-pin
Q08M series
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical functional principle: Light switch, energetic
Housing material: Zinc, die-cast, nickel-plated
LED red light
Light spot size: Ø 3.0 mm light emission
Range 1...60 mm
PNP NO interface
Beam characteristics: Varied
Additional features:
Functional principle: Optoelectronic sensor
Dimensions 8 x 59 x 8 mm
Mounting: M3 screw
Rated operating voltage Ue DC 24 V
Rated operating current Ie 100 mA
Rated insulation voltage UI 75 V DC
Standby delay TV max.: 20 ms
Operating voltage Ub 10...30 VDC
Usage category: DC-13
Load capacity max. at Ue 0.5 µF
Residual ripple max. (% of Ue): 10%
Switching frequency 500 Hz
Connection: Connector, M8x1 plug, 3-|pin
Short-circuit protection: Yes
Reverse polarity protection: Yes
Exchange possibility protected: Yes
Rated switching distance Sn: 60 mm
MTTF (40 °C) 997.4 a
Active surface, material: PMMA
Switching output: PNP NO
Housing material: Zinc, die-cast, nickel-plated
EN 60068-2-27, shock: Half-sine, 30 gn, 11 ms, 3x6|half-sine, 100 gn, 2 ms, 3x8000
EN 60068-2-6, Vibration: 10…55 Hz, Amplitude: 1 mm, 3x30|min|10…2000 Hz, Amplitude: 1 mm, 30|gn, 3x5 hrs
Protection class IP67
Ambient temperature -5...55 °C
Range 1...60 mm
Contacts, surface protection: Gold-plated
Surface protection: Nickel-plated
Q08M series
Shape: Cube|connection 90°
Display: Limit range - LED yellow, flashes|LED yellow: Light reception
Shutdown delay toff max.: 1 ms
ON delay max.: 1 ms
Idle current IO max. at Ue 15 mA
Voltage drop Ud max. at Ie 0.7 V
Optical functional principle: Light switch, energetic
LED red light
Light spot size: Ø 3.0 mm light emission
Optical switching function: Light switching
Beam characteristics: Varied
Wavelength 645 nm
LED group according to IEC 62471: Free group

Packaging type: Single

Product type: Photo sensor

Type: BOS Q08M-PS-KD20-S49

Operating voltage: 24 V DC

Contact type: 1 maker

Switching frequency: 500 Hz

Connector: M8 (3-pin)

Enclosure material: Zinc (die-cast, Ni-plated)

Material properties: nickel plated

Transmitter type: LED red

Wavelength: 645 nm

: 60 mm

: IP67

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416729 BALLUFF Photo sensor BOS Q08M-PS-KD20-S49 BOS01RJ 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3416729 BALLUFF Photo sensor BOS Q08M-PS-KD20-S49 BOS01RJ 1 pc(s)

Description

Energetic light sensors are Ideal for detecting contrast differences. You can detect objects depending on the surface, color and material.They are cost-effective, easy to mount and align. Optoelectronic sensor, light transmitter = LED, connector type = connector, switching output = PNP NO, range max. = 60 mm
