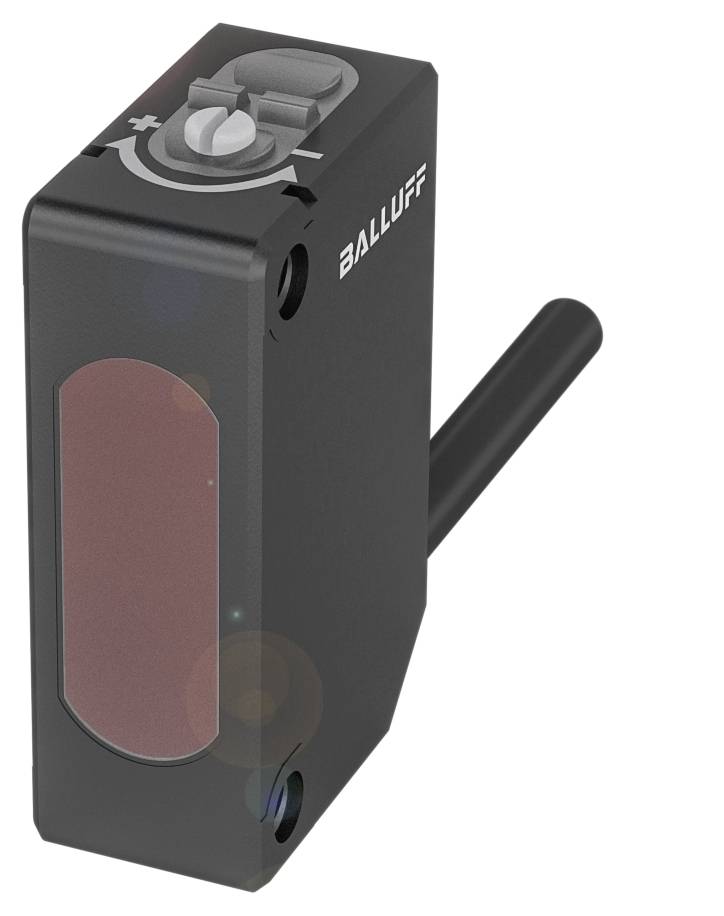

BALLUFF Photo sensor BOS R090K-PU-RH10-02 BOS029K Background suppression 1 pc(s)

Our light sensors with background suppression detect objects within a set switching distance, without being disturbed by the reflecting background. Almost independent of the object's color and surface. This way, object and background can be safely differentiated because these sensors are characterized by their slight differences in grayscale value and hysteresis.Since the transmitter and receiver are placed in a housing without space, you can easily mount our light switches and align them quickly. Thereby, additionally the clearly visible light beam of the versions available in red light and laser supports you. With teach-in or via potentiometer you can make the setting simple in many sensor designs. Additionally it is also available in versions with fixed adjustable switching distance. Series = R090K, Dimensions = 10.7 x 32.7 x 19.5 mm, port = PNP NO/NC contact (NO/NC), operating principle = Optoelectronic sensor, optical functional principle = light scanner, triangulation, optical feature = background suppression, beam characteristic = focus, typical at 90 mm, light type = LED red light, light spot size = Ø 4.5 mm at 60 mm, Range = 20...350 mm, connection = cable, 2.00 m, PVC, housing material = PC PBT, active surface, material = PMMA, operating voltage Ub = 10...30 VDC, approval/conformity = cULus, CE, UKCA, WEEE
